M328 Transistor Tester NPN PNP Transistor Diode Resistor Inductor Capacitance MOS SCR ESR Meter Automatic Pin Detection

294897

SKU: 294897 Category:
Report Abuse
Description

M328 Transistor Tester NPN PNP Transistor Diode Resistor Inductor Capacitance MOS SCR ESR Meter Automatic Pin Detection



  • DIY Supplies: ELECTRICAL
  • Origin: Mainland China
  • Brand Name: meterk

M328 Transistor Tester NPN PNP Transistor Diode Resistor Inductor Capacitance MOS SCR ESR Meter Automatic Pin Detection

Features:

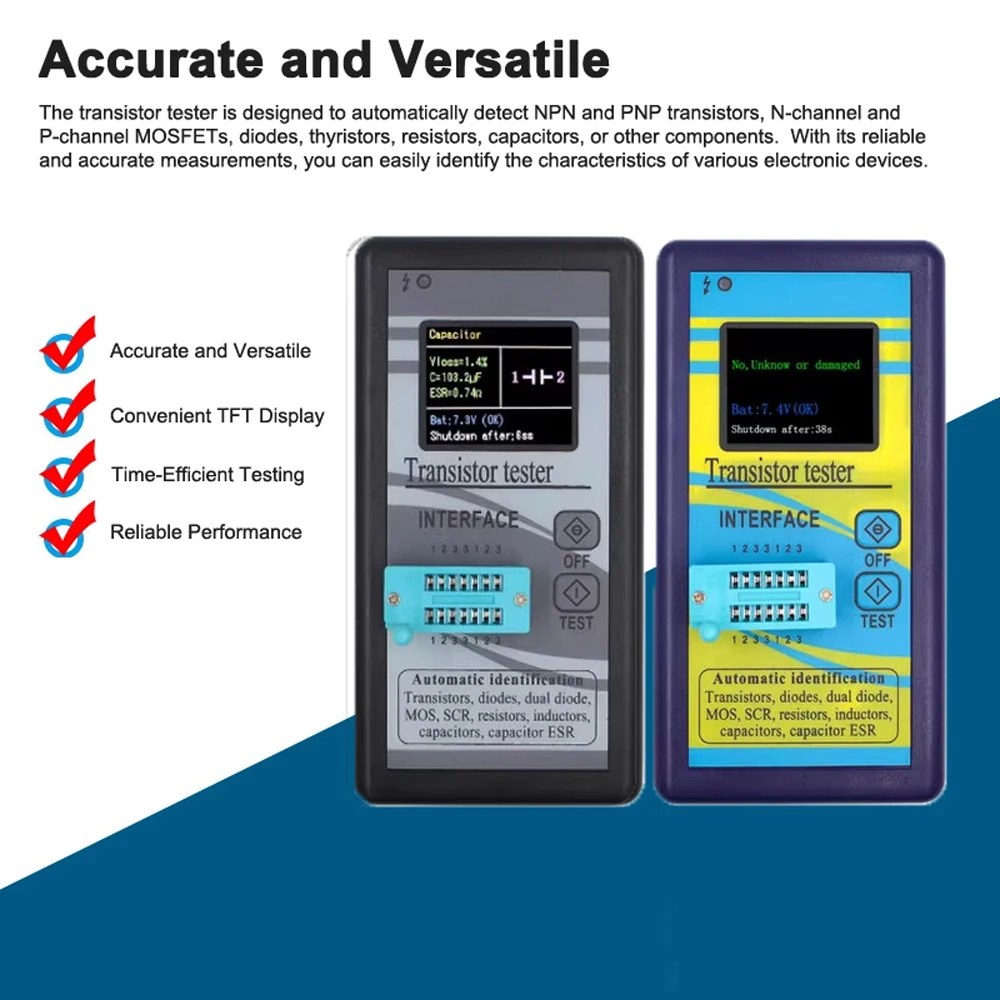

Accurate and Versatile: The transistor tester is designed to automatically detect NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes, thyristors, resistors, capacitors, or other components. With its reliable and accurate measurements, you can easily identify the characteristics of various electronic devices.

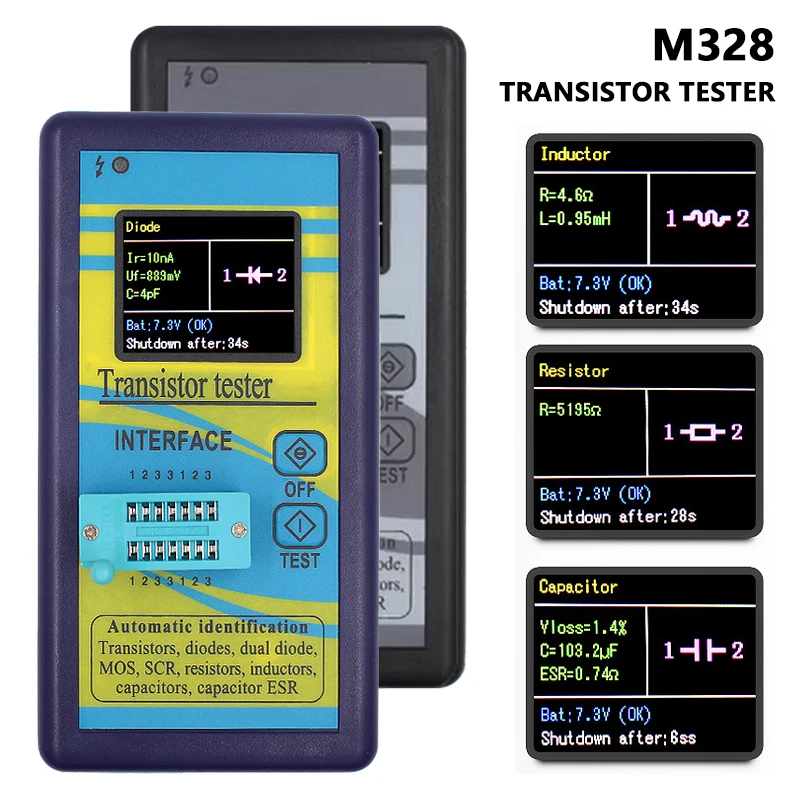

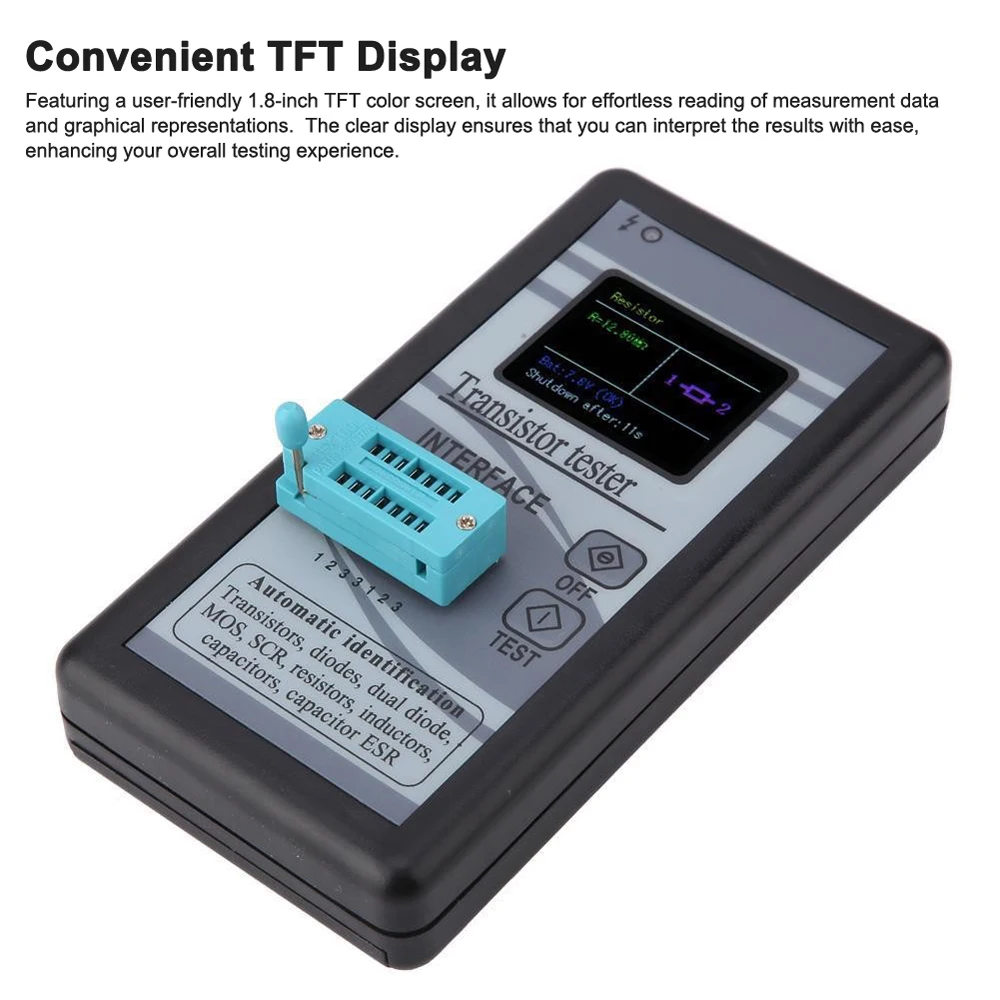

Convenient TFT Display: Featuring a user-friendly 1.8-inch TFT color screen, it allows for effortless reading of measurement data and graphical representations. The clear display ensures that you can interpret the results with ease, enhancing your overall testing experience.

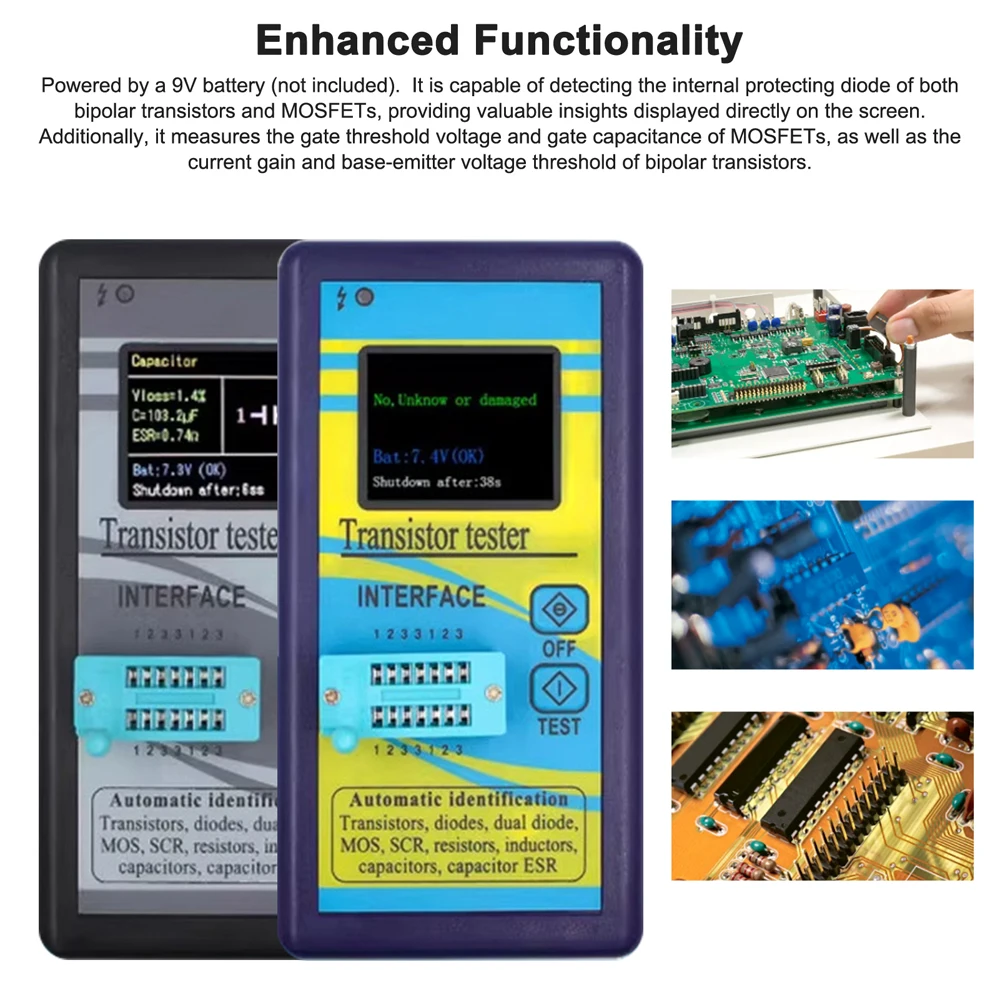

Enhanced Functionality: Powered by a 9V battery (not included). It is capable of detecting the internal protecting diode of both bipolar transistors and MOSFETs, providing valuable insights displayed directly on the screen. Additionally, it measures the gate threshold voltage and gate capacitance of MOSFETs, as well as the current gain and base-emitter voltage threshold of bipolar transistors.

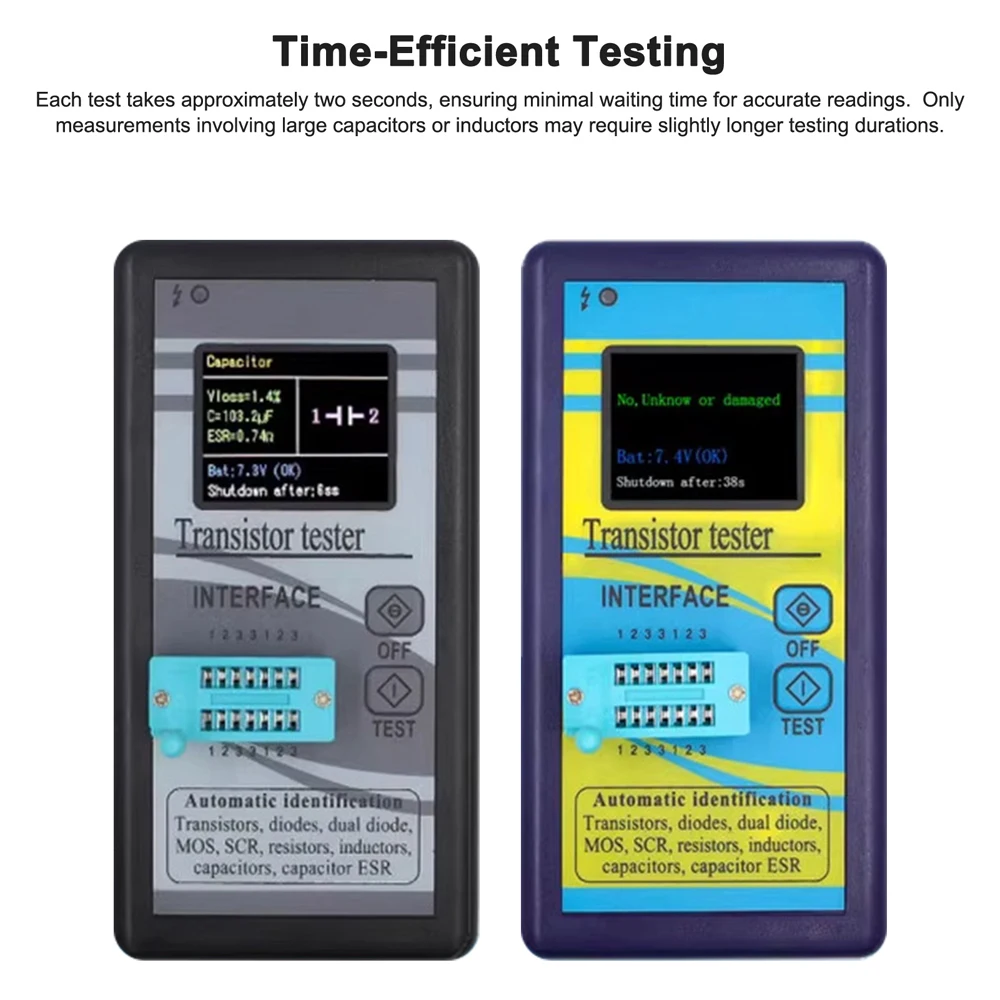

Time-Efficient Testing: Each test takes approximately two seconds, ensuring minimal waiting time for accurate readings. Only measurements involving large capacitors or inductors may require slightly longer testing durations.
Reliable Performance: The tester combines robust construction with exceptional technology, guaranteeing long-lasting performance and accurate measurements. Whether you are a professional or a hobbyist, this essential tool will greatly assist you in troubleshooting and analyzing electronic circuits, making it a must-have for any electronics enthusiast or technician.

Specifications:

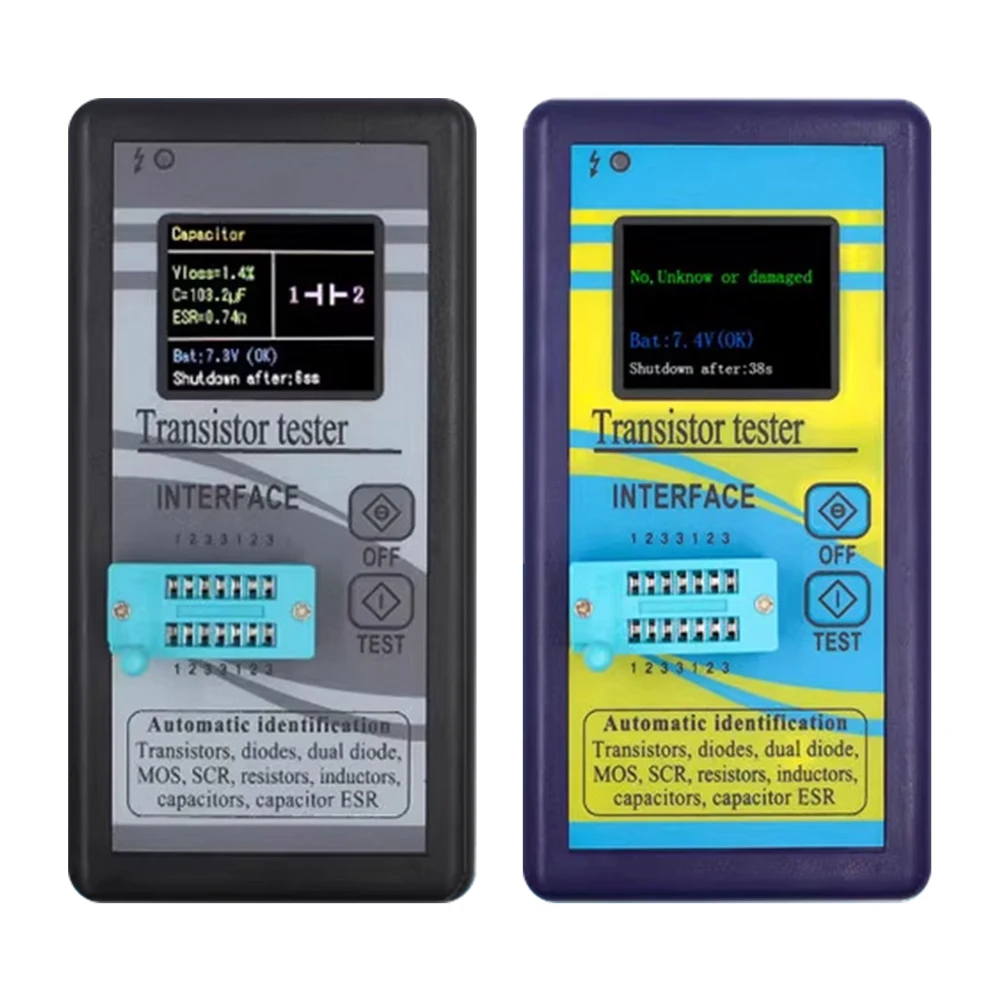

Color: Black/Blue(optional)
Material: Plastics
Power: DC9V Battery(Not Included)
Display: 1.8″ TFT Color Display
Transistor Ranges: 2 or less (including 2) PN junctions composed of transistors, do not have other internal resistance and capacitance of the originals.
Resistance Measurement Ranges: 0.5Ω-50MΩ
Inductance Measurement Ranges: 0.01mH – 20H
Capacitance Measurement Ranges: 25pf – 100000uF
Item Size: 130 * 70 * 23mm/ 5.1 * 2.8 * 0.9in
Item Weight: 110g/ 3.9oz
Package Size: 135 * 70 * 24mm/ 5.3 * 2.8 * 0.9in
Package Weight: 128g/ 4.5oz

Packing List:
1 * Transistor Tester
