DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

431468

SKU: 431468 Categories: , ,
Report Abuse
Description

DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

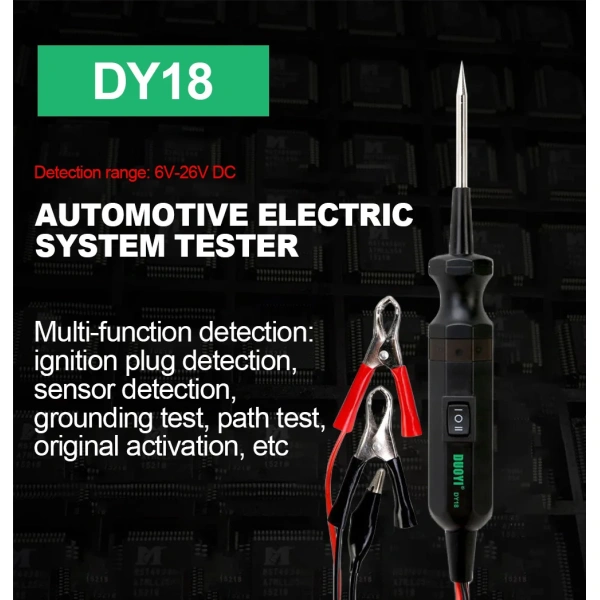

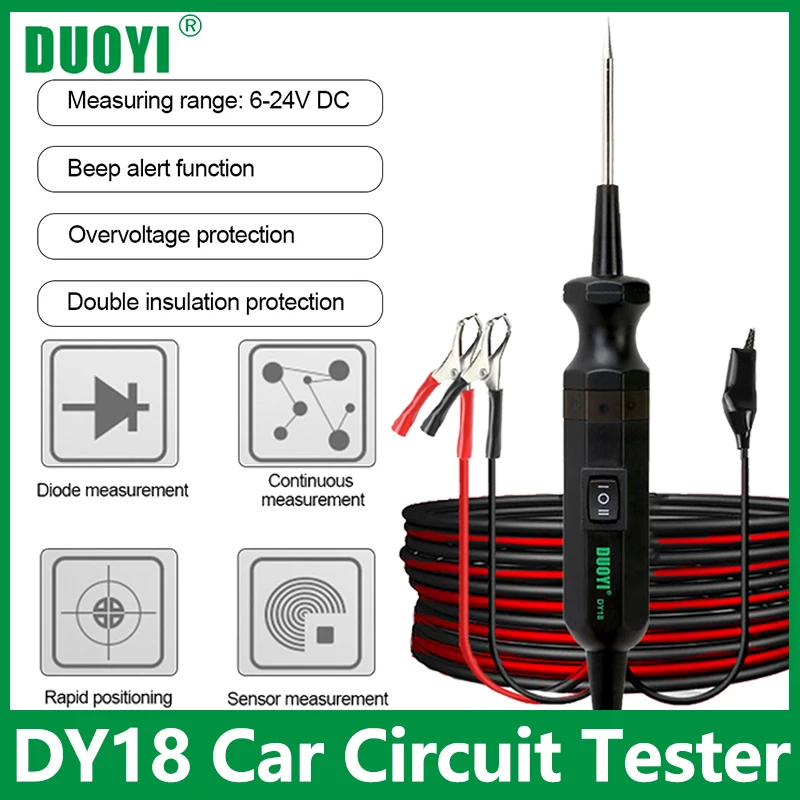

DUOYI DY18 Car Circuit Tester
The unit is the best electrical tester for reducing diagnostic time in automotive electrical systems .
Its long cable makes your testing easily.
After a simple hook-up of the unit to the vehicle’s battery, automotive technician can conduct a positive or negative battery current to the tip by rocking the power switch forward or backward.
The unit has short-circuit protection and can test for bad ground contacts instantly.
It allows you to track and locate short circuits.
It can also test for continuity with the assistance of its auxiliary ground lead.
It is a comprehensive 6-24V DC test kit.

DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

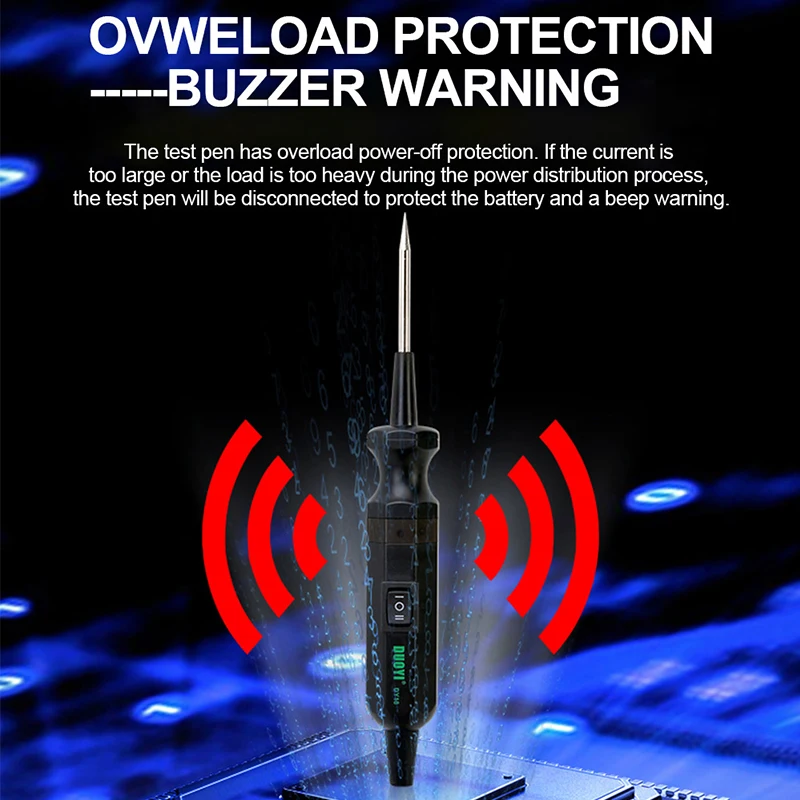

OWELOAD PROTECTON BUZZER WARNING

The test pen has overload power-off protection . If the current is too large or the load is too heavy during the power distribution process the test pen will be disconnected to protect the battery and a beep warningDUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

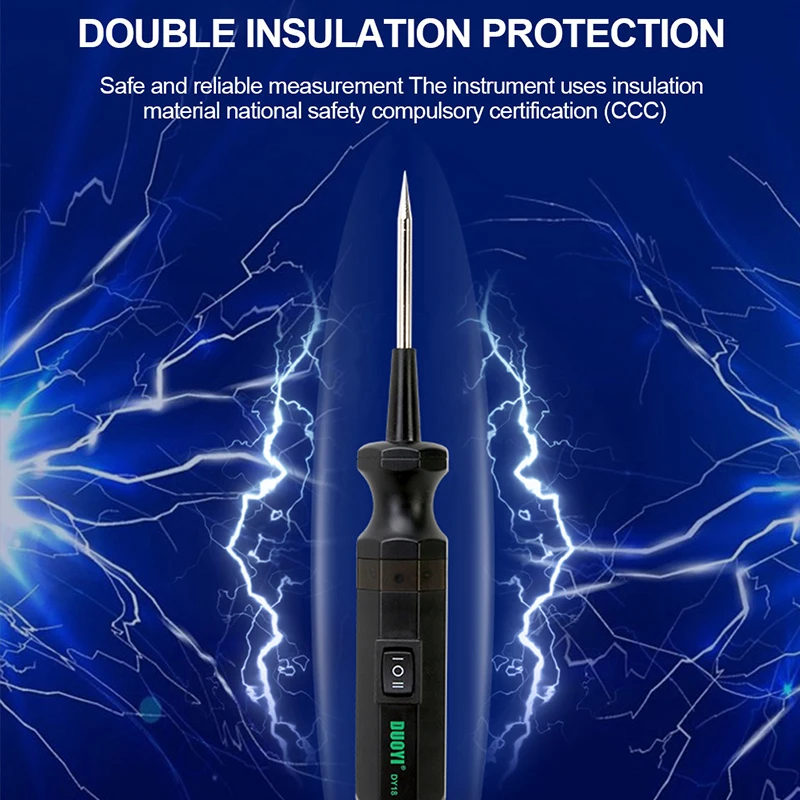

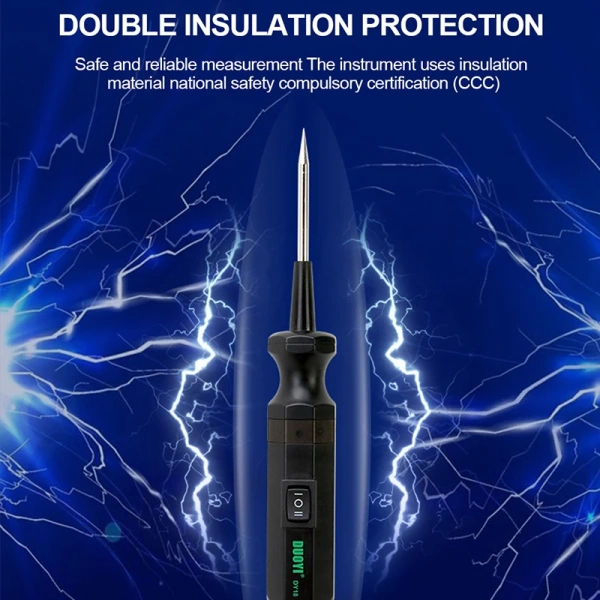

Safe and reliable measurement The instrument uses insulation material national safety compulsory certification ( CCC )

DOUBLE INSULATION PROTECTION

DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

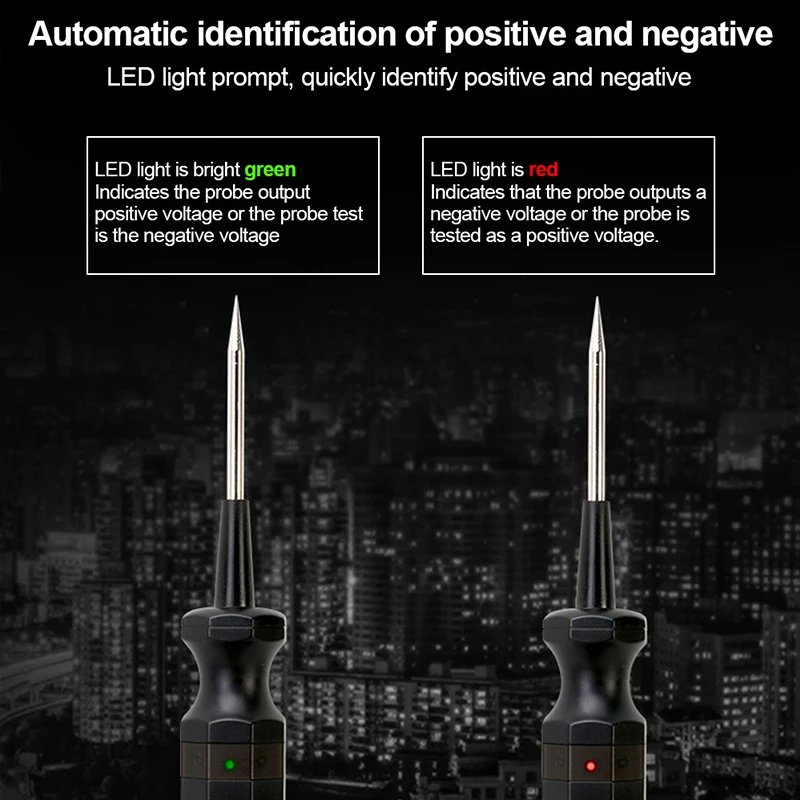

Automatic identification of positive and negative

LED light prompt , quickly identify positive and negative

LED light is bright green

Indicates the probe output positive voltage or the probe test is the negative voltage

LED light is red

Indicates that the probe outputs a negative voltage or the probe Istested as a positive voltage

DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

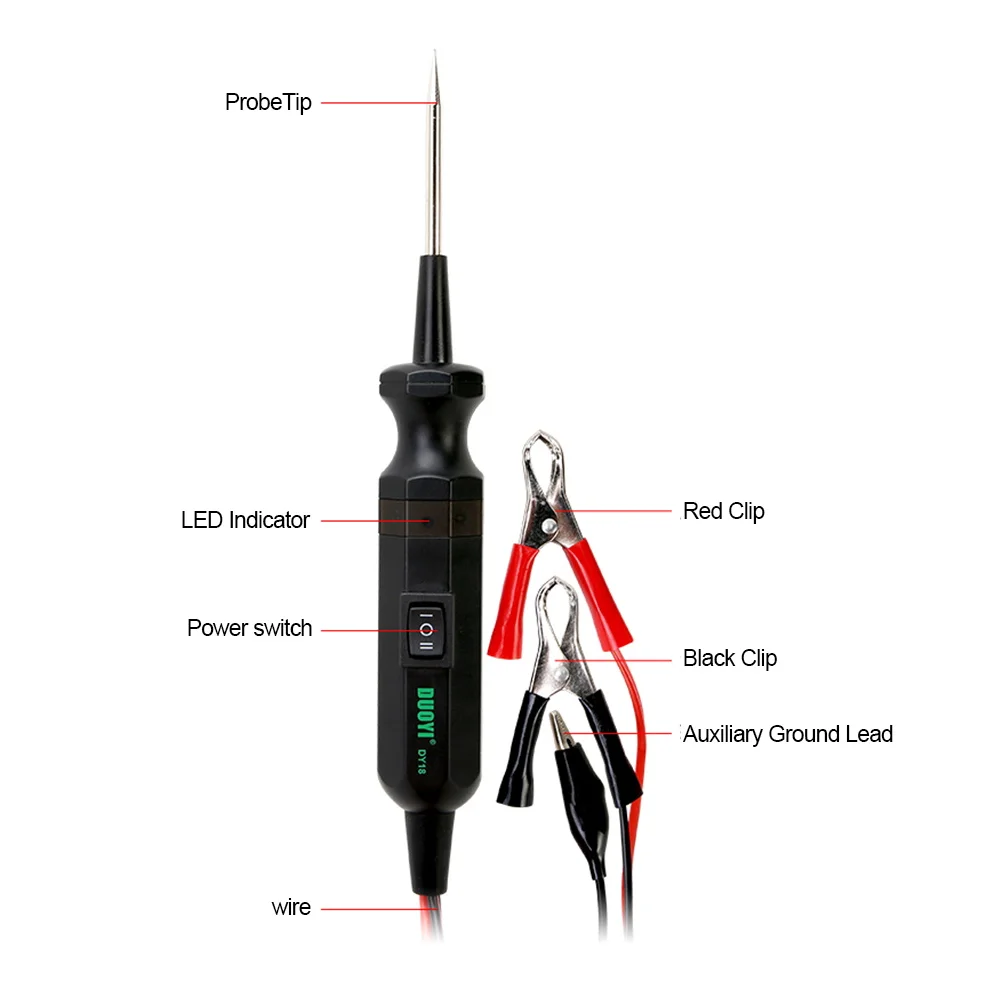

THE GUIDE DIAGRAM

Applications:
1. Test for continuity
2. Test for polarity of a voltage
3. Check switches, relays and the on-off of diodes, fuses and circuits
4. Test for polarity of electric cables and plugs
5. Track and locate short circuits
6. Test for bad ground contacts DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits DUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

Specification:

Operation voltage: 6-24V DC
Cable length: about 4m
Overload protection: 8A (When the current exceeds 8A, this item will disconnect the current automatically.)
Weight: about 200g

Do’s and don’ts:

1. Do not use the item around explosive gas, vapor, or dust. When the power switch is pressed (or rocked), battery current is conducted directly to the tip which may cause sparks when contacting ground or certain circuits.
2. The unit is not to be used with 110/220V house current, it is only use for DC 6~24V systems.
3. Do not use on AC voltage.
4. After you finishing checking vehicle, correctly restored all the connection-s which you disconnected.
5. Always follow the instructions and procedures indicated in the vehicle’s service manual before attempting to disconnect any part or subsystem of the electrical circuit.
6. Never touch any dangerous part of the vehicle with your hand for safety. Don’t touch any live conductor with hand or skin.
7. Don’t use it if it is damaged.
8. Some components of vehicle work on low voltage, they cannot withstand the voltage allied by the item. To avoid damage for these components, don’t use the item to apply voltage directly or indirectly.
9. Before driving, please always make sure that the vehicle is safe and reliable.
10. Don’t use this item when driving.

PRODUCT DETAIL PRESENTATIONDUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits

PRODUCT SPECIFICATIONSDUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short CircuitsDUOYI DY18 Car Circuit Tester Power Probe Automotive Diagnostic Tool 12V 24V Electrical Current Track Locate Short Circuits
