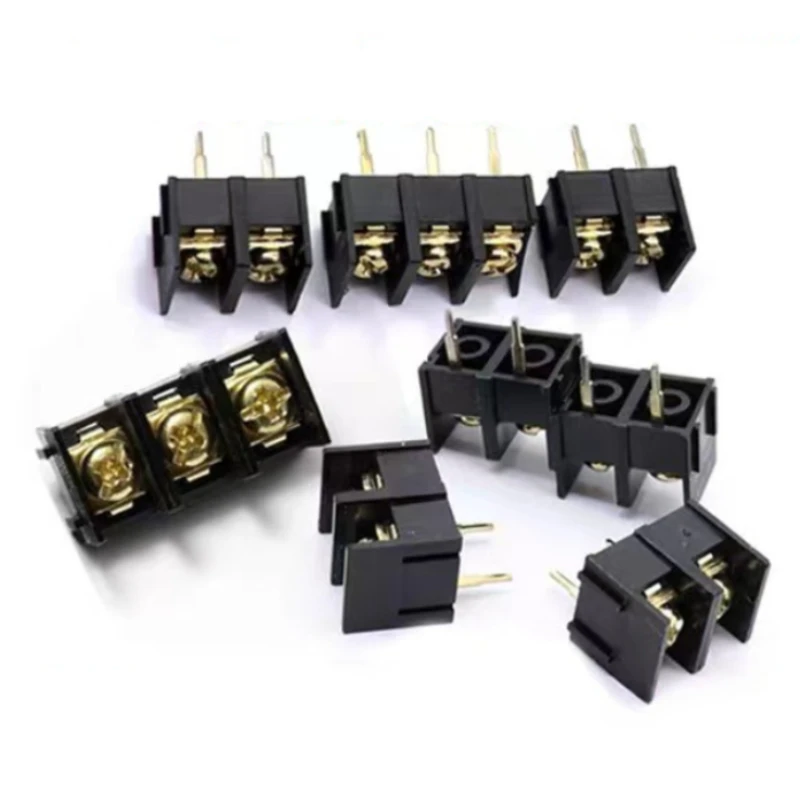

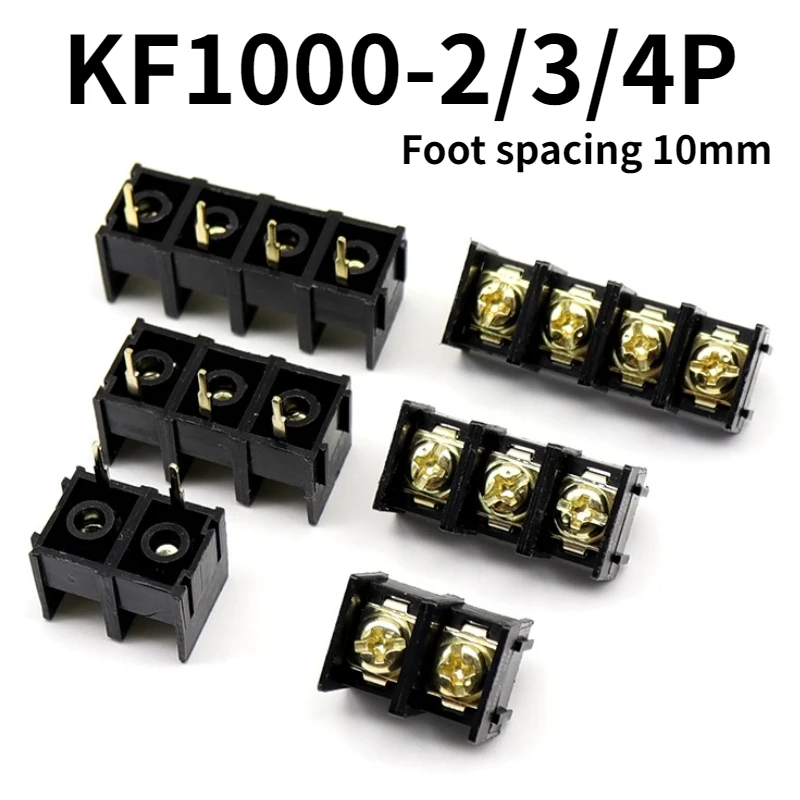

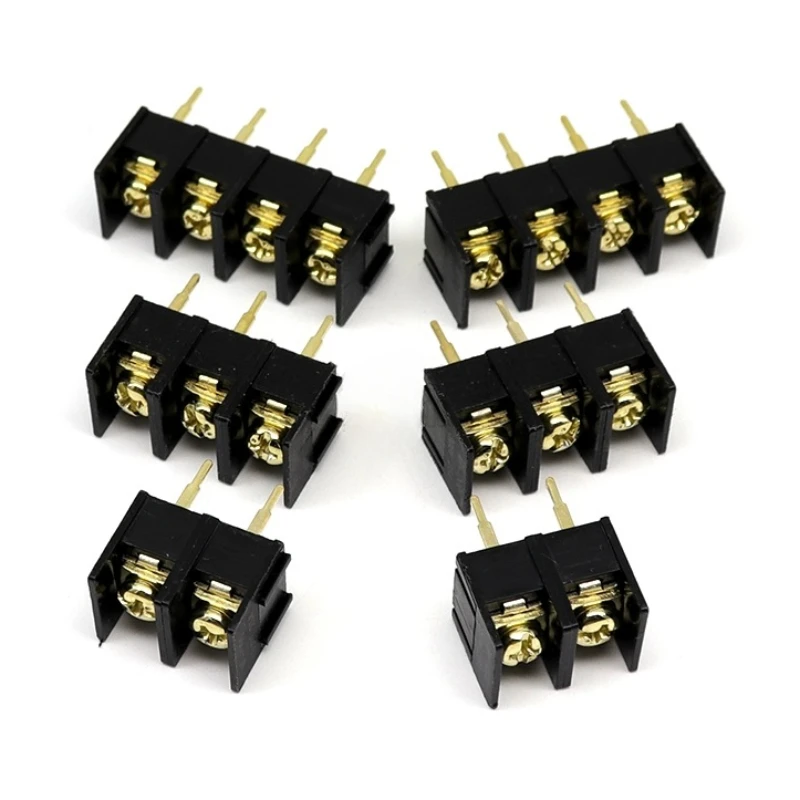

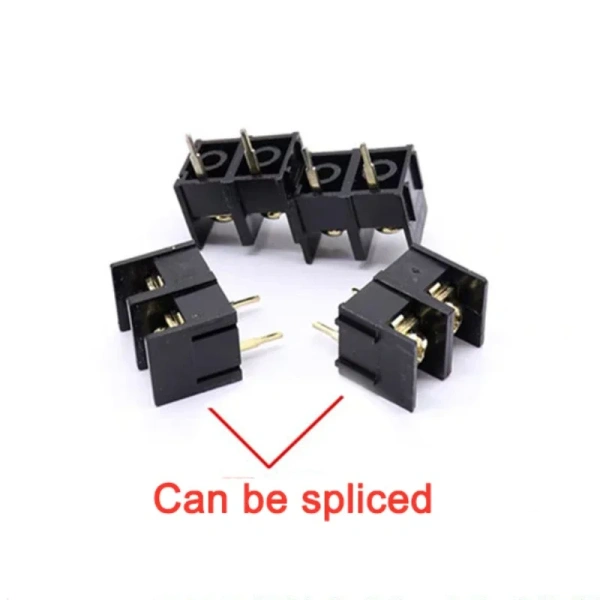

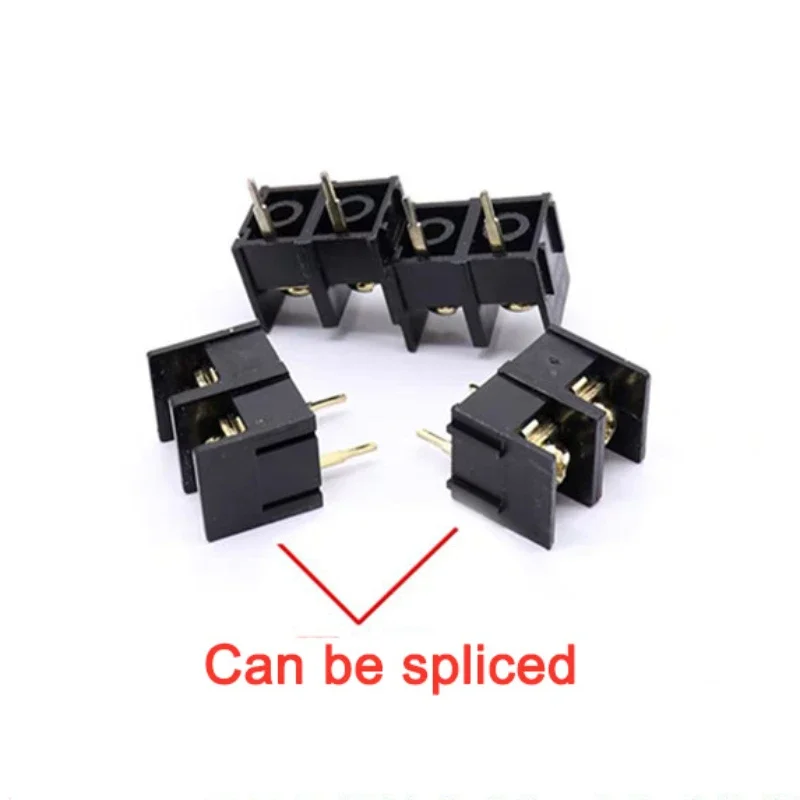

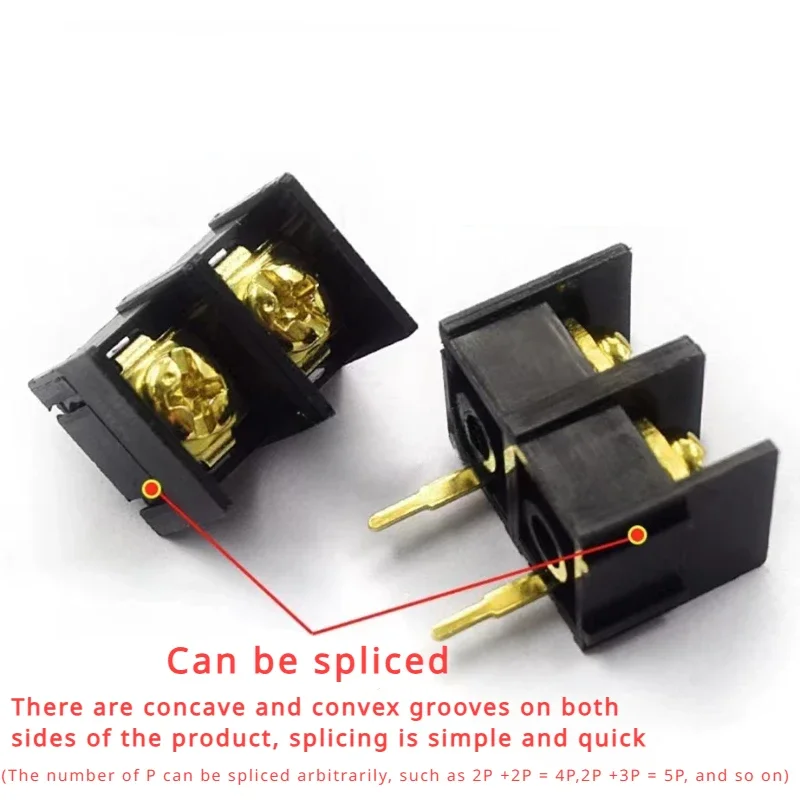

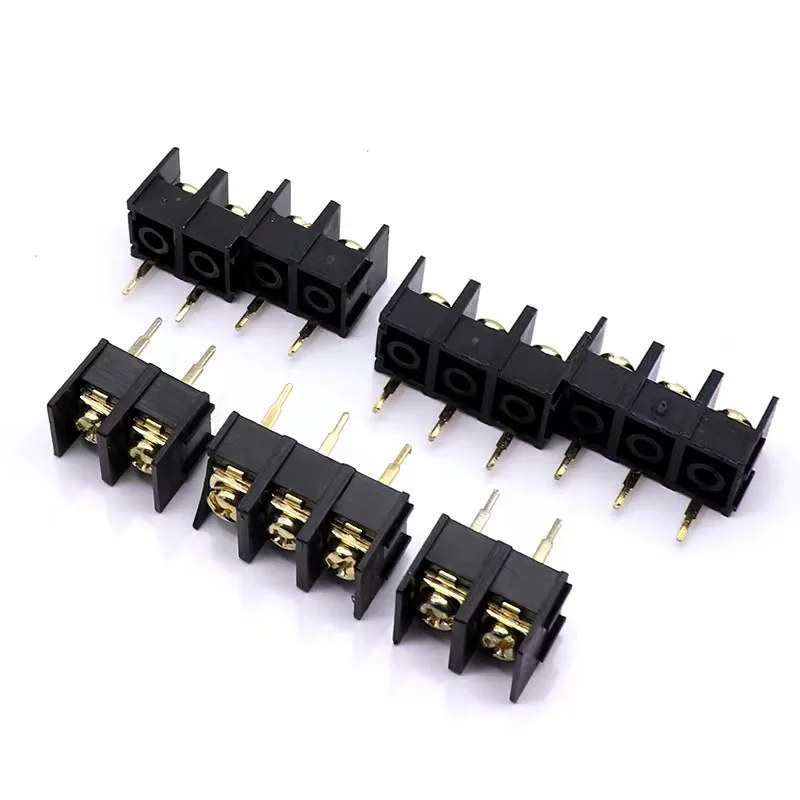

10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector KF1000 2/3/4P Can Be Spliced

145297
SKU: 145297 Categories: ,
Description
  • Model Number: KF1000-2P/3P/4P
  • Origin: Mainland China
  • Certification: none

Material
spacing: 10mm
pitch: 2P/3P /4P
screw: M4 steel golded
Pin: brass golded
plastic: PA66.UL94V-0


Characteristic
rated voltage: 300V
rated current: 25A
voltage: Ac2000V/1min
Wire diameter: 22-12AWG
temperature range: -40~+105°CMax. temperature: +250’C 5s
10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector  KF1000 2/3/4P Can Be Spliced10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector  KF1000 2/3/4P Can Be Spliced

10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector  KF1000 2/3/4P Can Be Spliced10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector  KF1000 2/3/4P Can Be Spliced10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector  KF1000 2/3/4P Can Be Spliced10MM Pitch KF1000 2P 3P 4P PCB Screw Terminal Block Connector  KF1000 2/3/4P Can Be Spliced
