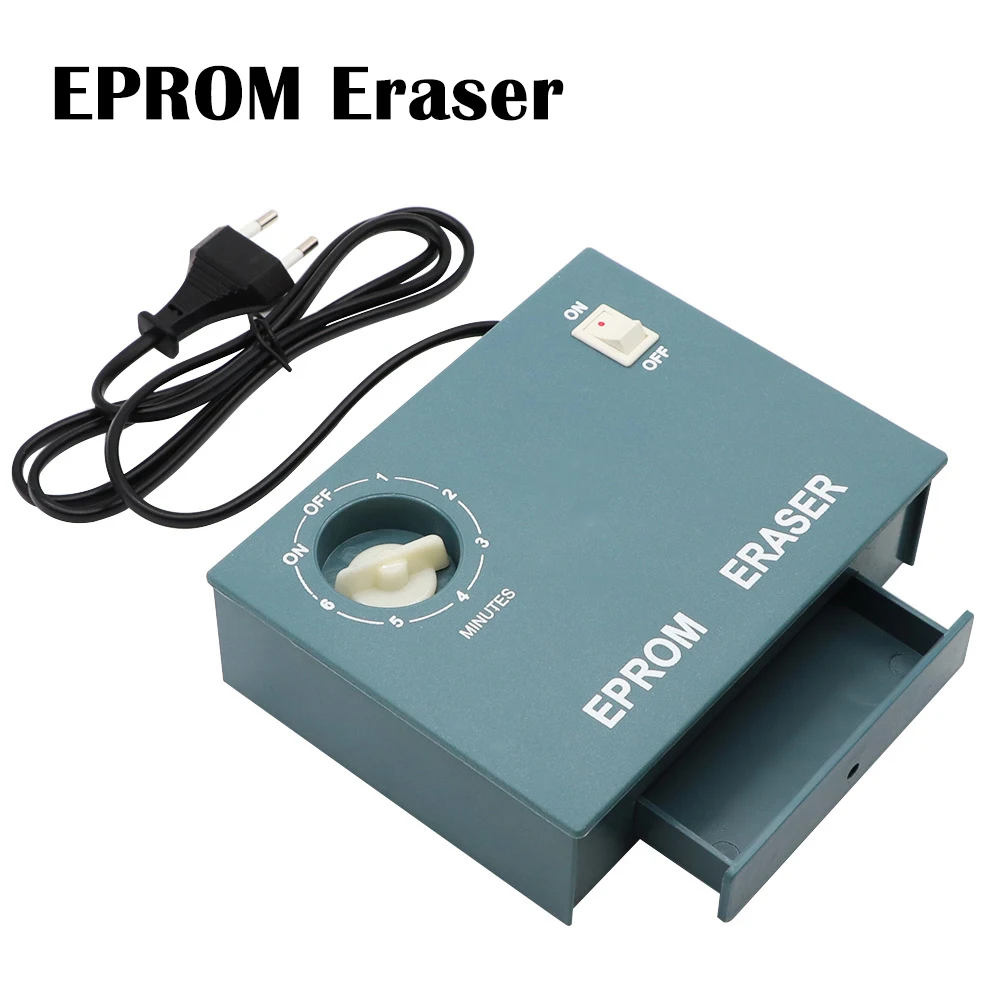

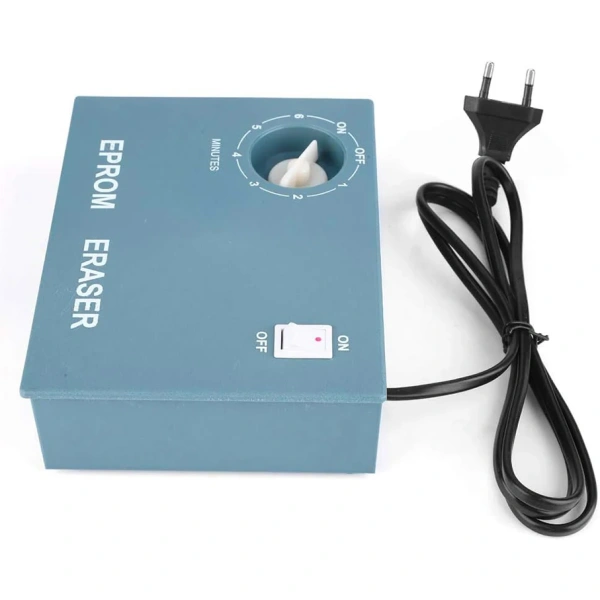

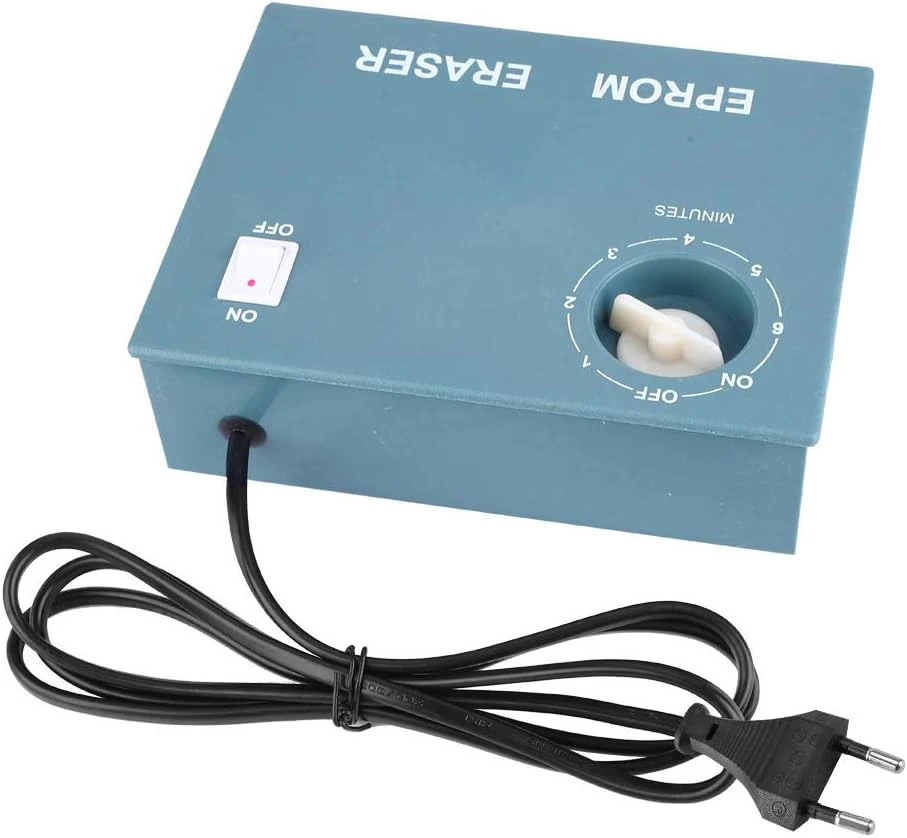

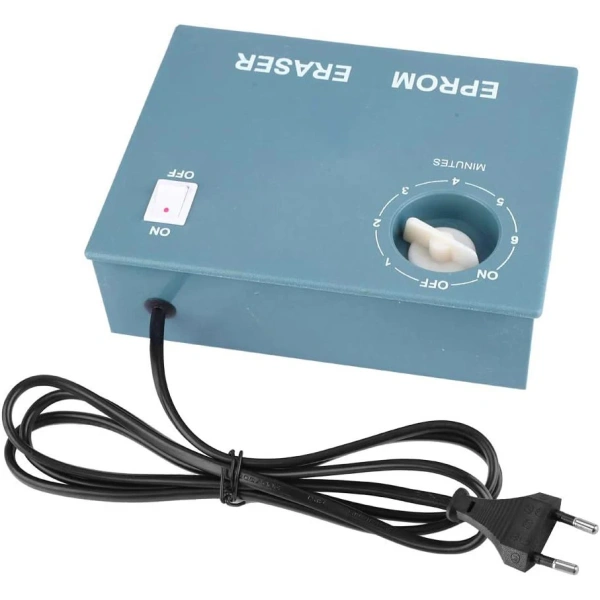

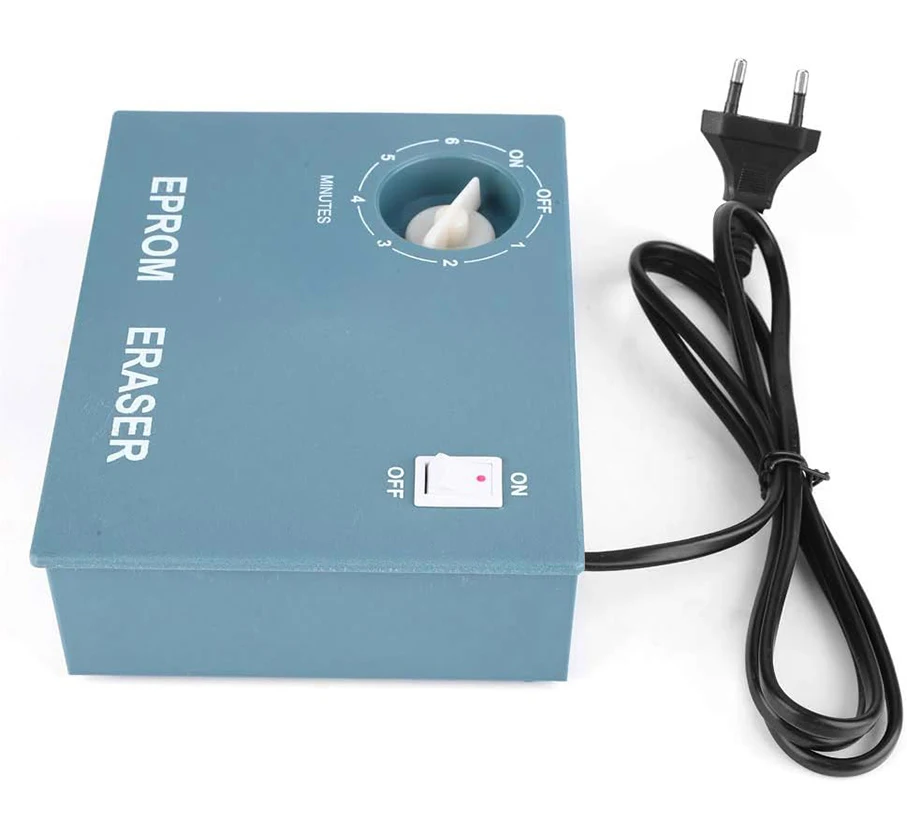

UV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase Radiation

463924

SKU: 463924 Category:
Report Abuse
Description

UV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase Radiation

Notice

High Quality UV EPROM Eraser Ultraviolet Light Timer Semiconductor Wafer (IC) EPROM Chip data Erase Radiation

Attention new buyers
As long as the purple light in the drawer can be controlled by your timing and switch
There is no problem with this device
(You can see purple light in the small hole of the drawer after turning on the power switch and timer switch.) If the erasure cannot be performed or the erasure is not clean, please find other reasons, such as removing the light-shielding paper and cleaning the glass window on the chip to rule out whether the programmer is Normal, confirm whether the IC has been aged and damaged.

Product introduction

Used to erase EPROM memory chips,
All data in EPROM can be completely erased in 10 minutes.
Before use, first remove the light-shielding sticker on the window of the EPROM memory chip.
The eraser can erase up to 6 chips at the same time.

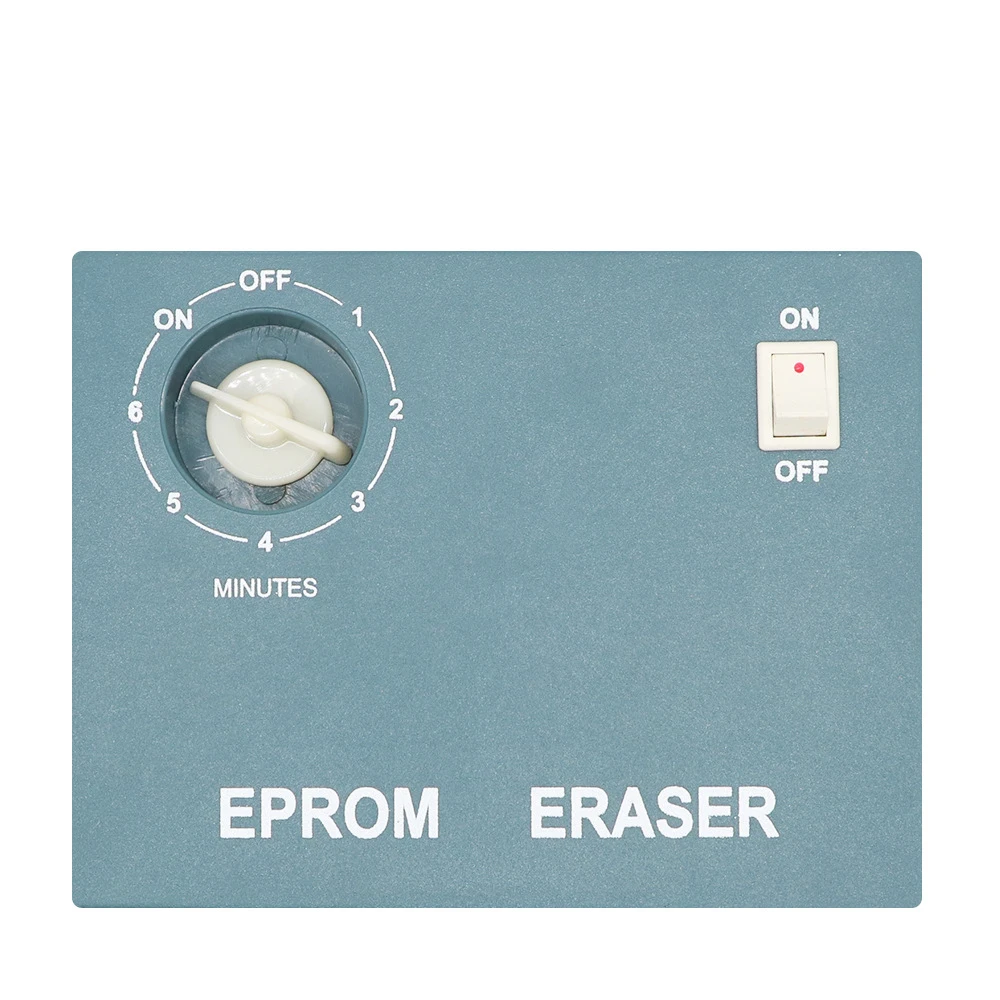

Set the timer to 10 minutes,
Just turn on the power. If the erasure is not clean, you can extend the erasing time. Please use the programmer to check the chip before programming.
Note that the chip glass window is placed upwards. Some manufacturers’ chips take longer to erase. For details, please refer to the chip manufacturer’s instructions.

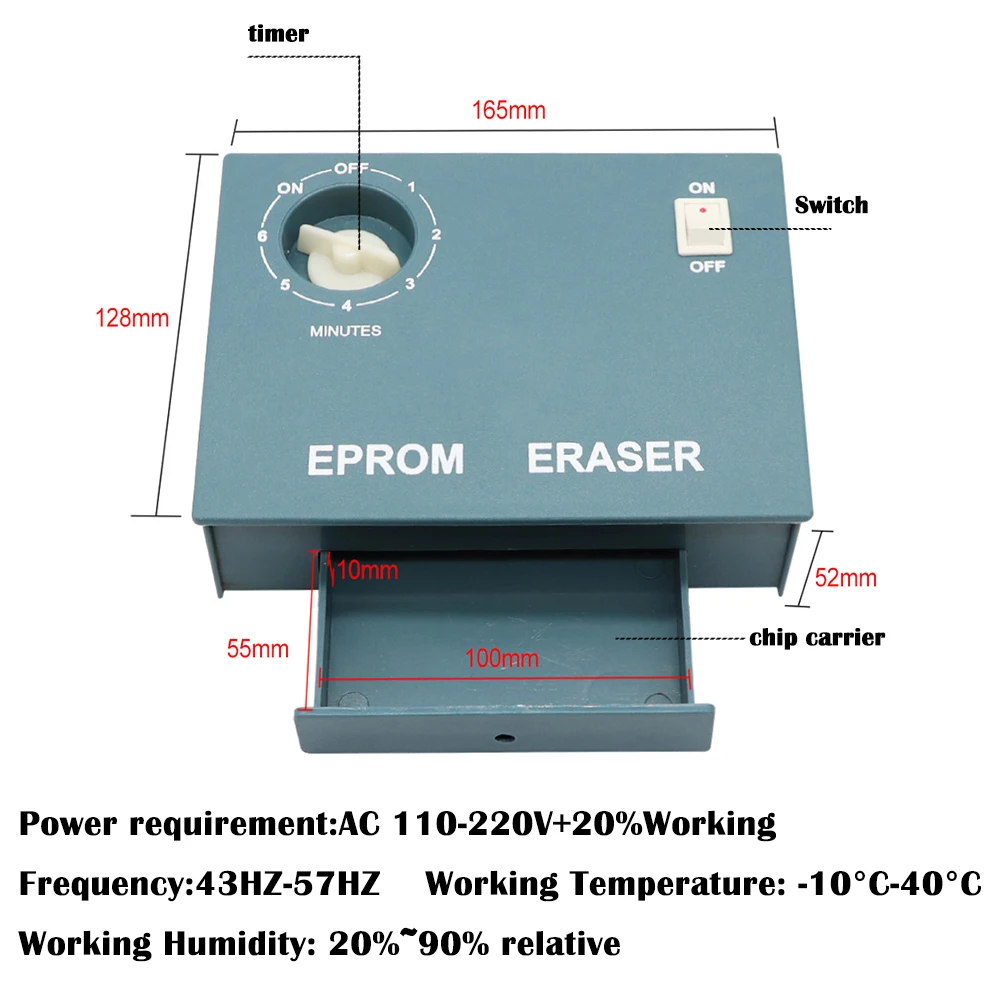

As the chip ages, erasure may take a long time or cannot be erased. Drawer structure, drawer size (length, width and height): 95X55X13 mm (mm), built-in UV lamp.
Light source wavelength is less than 400nM
(It can be used for the development of some photosensitive materials or light curing of small prints) The specific efficacy is subject to actual use, and we cannot promise or guarantee it.

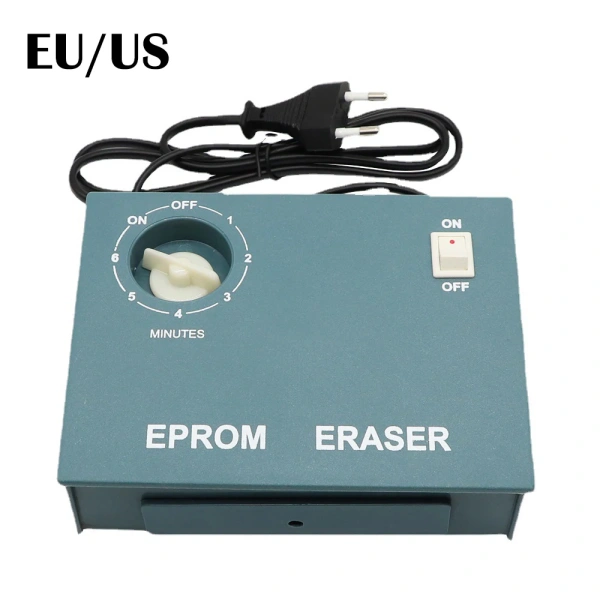

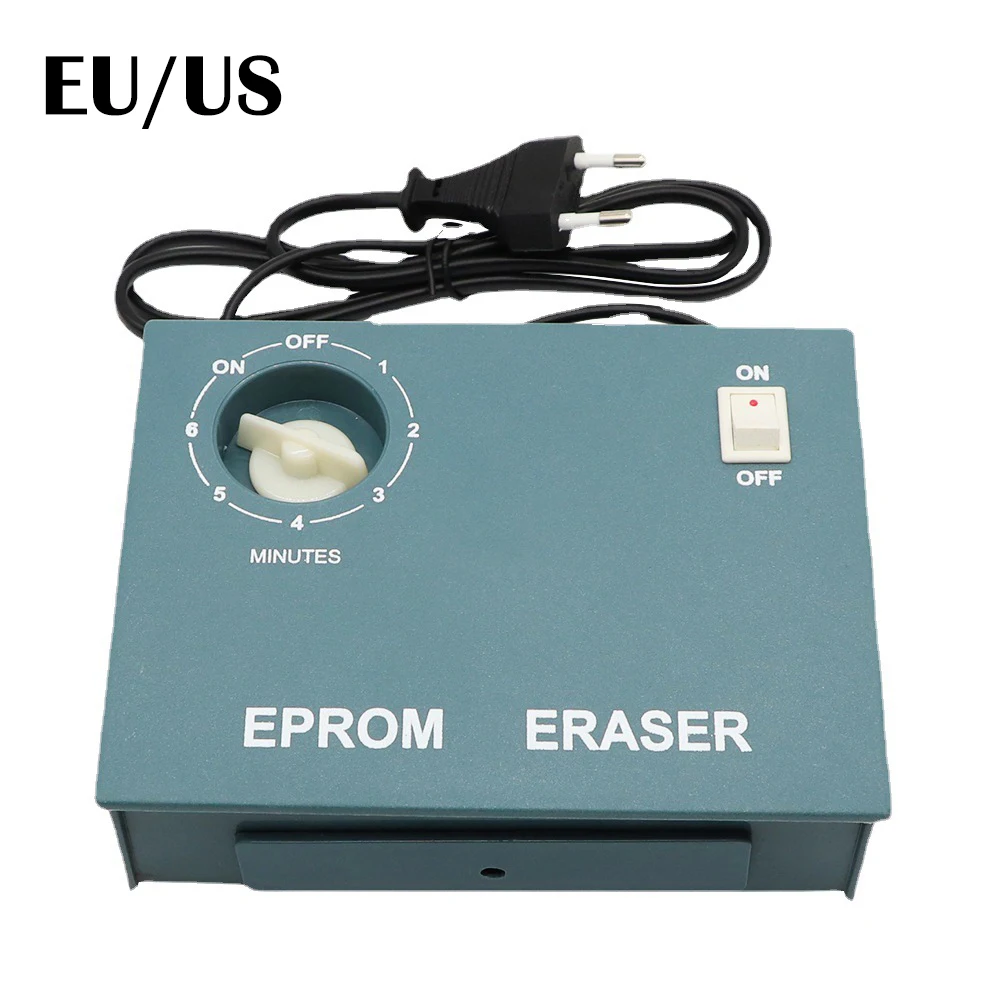

Working voltage: AC100V-240V, universally used all over the world.
The internal circuit and mechanical structure are relatively simple,
The manufacturer does not provide instructions for use, only simple bubble packaging bags
The seller will ship after testing and there is no warranty. This type of product is not a mass-produced electrical appliance and the workmanship and some details are not very good. In addition, the anti-violet plastic has an odor. Buyers who have requirements for workmanship and various details, please contact us. Relevant psychological preparation

Features:

Power requirement : AC 220V±20%
Working Frequency : 43Hz-57Hz
Working Temperature: -10°C – 40°C
Working Humidity: 20%~90% relative

UV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase RadiationUV EPROM Eraser Professional Stable Ultraviolet Light Timer EPROM Data Erase Tool Semiconductor Wafer (IC) EPROM Erase Radiation
