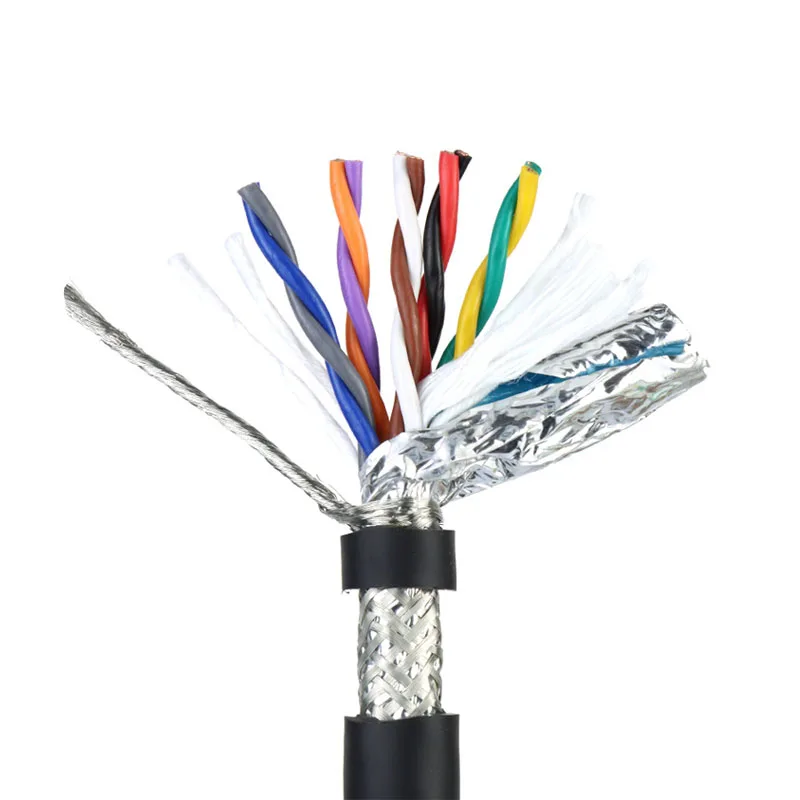

Twisted Pair Shielded STP Cable

Name: Twisted Pair Shielded STP Cable - Electronic components online
SKU: 293379
Price: 1.00 MYR
Availability: InStock

Twisted Pair Shielded STP Cable2/4/6/8/10/12/14/16Core TRVVPS26/24/22/20/18/17AWG Black Insulated CNC Cable Encoder Control Wire. High-quality, shielded twisted pair cable for reliable signal transmission in noisy environments. Available in various core counts (2, 4, 6, 8, 10, 12, 14, 16) and AWG sizes (26, 24, 22, 20, 18, 17), ideal for CNC machines, encoders, and other control systems.

293379

Length

Clear

Compare

Add to wishlist

SKU: 293379 Categories: Data signal cable, Cable, wire & cable assemblies Tags: 17AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, CNC cable, control cable, copper cable, encoder cable, shielded cable, signal cable, STP cable, TRVVPS, twisted pair cable

Description

Model Number: Twisted Pair Shielded Cable+ Encoder Control Wire
is_customized: Yes
Type: Insulated
Conductor Material: Copper
Insulation Material: PVC
1.Conductor: Pure copper
2.Oil resistant: Oil corrosion protection
3.Double shielding: Signal anti-interference ability is strong
4.Temperature Range: -30℃~+105℃

TRVVPS cables are mainly used in industrial electronic systems, automatic power generation lines, storage equipment, robots, fire protection systems, cranes, CNC machine tools, and metallurgical industries and other working environments that require better anti-interference.

26AWG=0.15 square millimeter
24AWG=0.2 square millimeter
22AWG=0.3 square millimeter
20AWG=0.5square millimeter
18AWG=0.75 square millimeter
17AWG=1 square millimeter
13AWG=1.5square millimeter

TRVVP are oxygen-free bare copper.

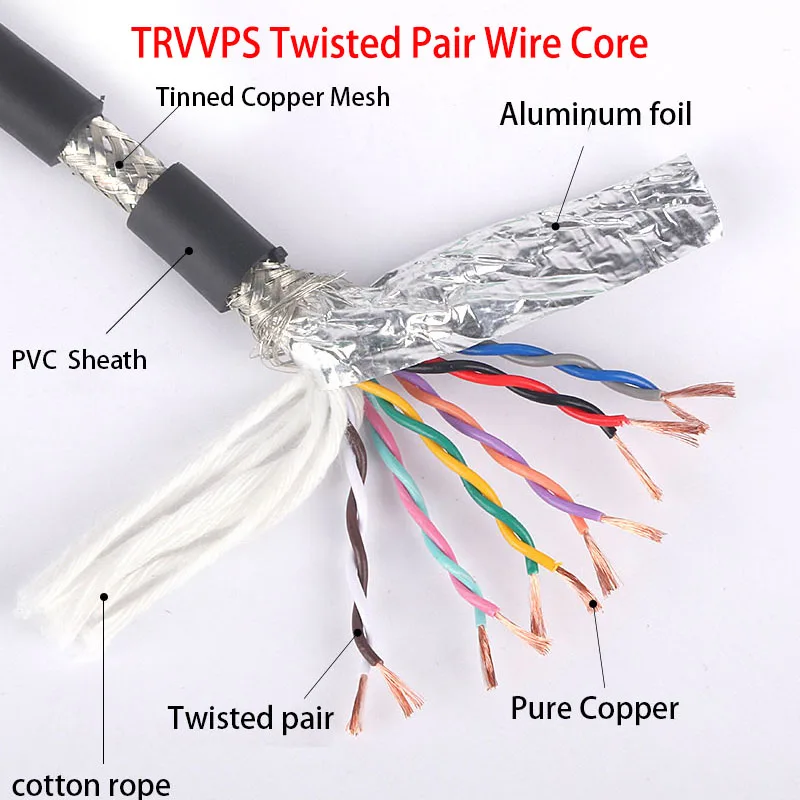

Double shielding and Twisted pair

1.The use of tinned copper mesh and aluminum foil as double shielding, signal anti-interference ability is strong

2.Twisted pair: in this way, not only can resist a part of the electromagnetic interference from the outside world, but also can reduce the mutual interference between many pairs of twisted wire, shielding performance is stronger and better.
3 High and low temperature resistance, high temperature 105° C, low temperature -30° C

Low eccentricity

The use of advanced equipment ensures the low eccentricity and uniform thickness of the wire, which effectively prevents current breakdown and ensures the safety of electricity.

Flame retardant wire

Safe and flame-retardant, automatically extinguished after leaving the open flame

Oil resistant

Oil resistant, suitable for working in oily environment

Soft bending

Better flexibility, can be repeatedly bent, bending times can reach 10 million times

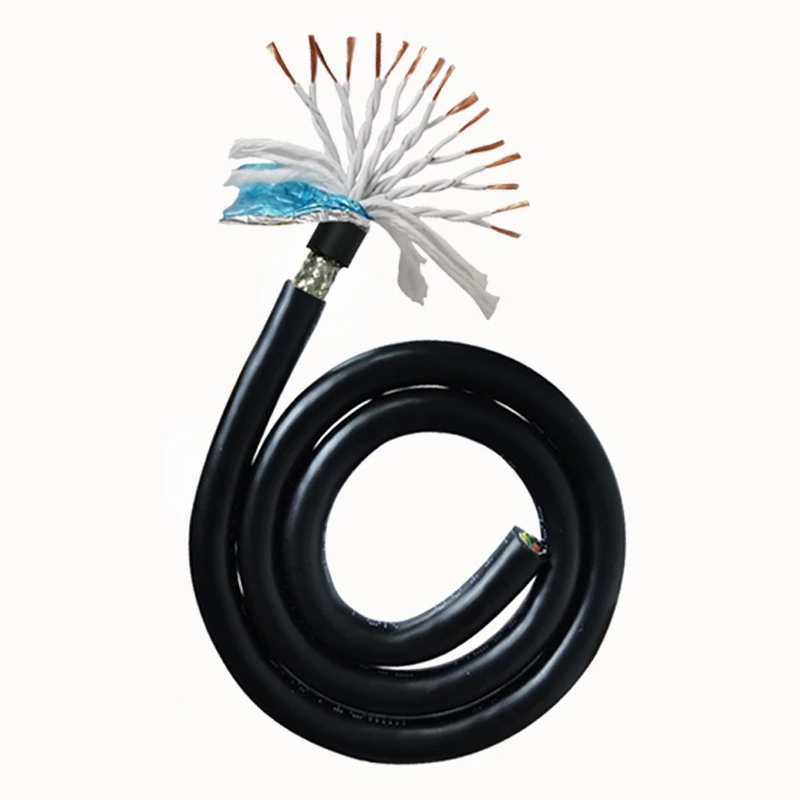

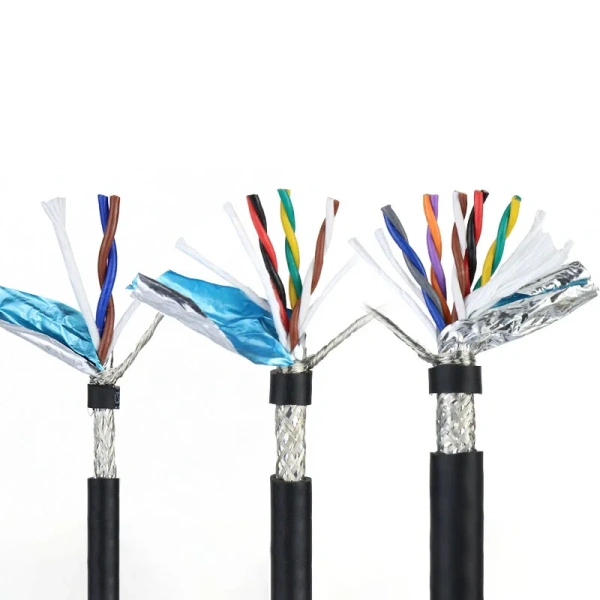

Some products show:

TRVVPS has color cores and white coding. The specifications below 12 cores (including 12 cores) are color cores. Above 12 cores are white codes (not including 12 cores), which are distinguished by the numbers on the cores. For example, 12 cores are distinguished by numbers 1-12. (The following is part of the product display)
