TRVVP Heat-Resistant Shielded Cable

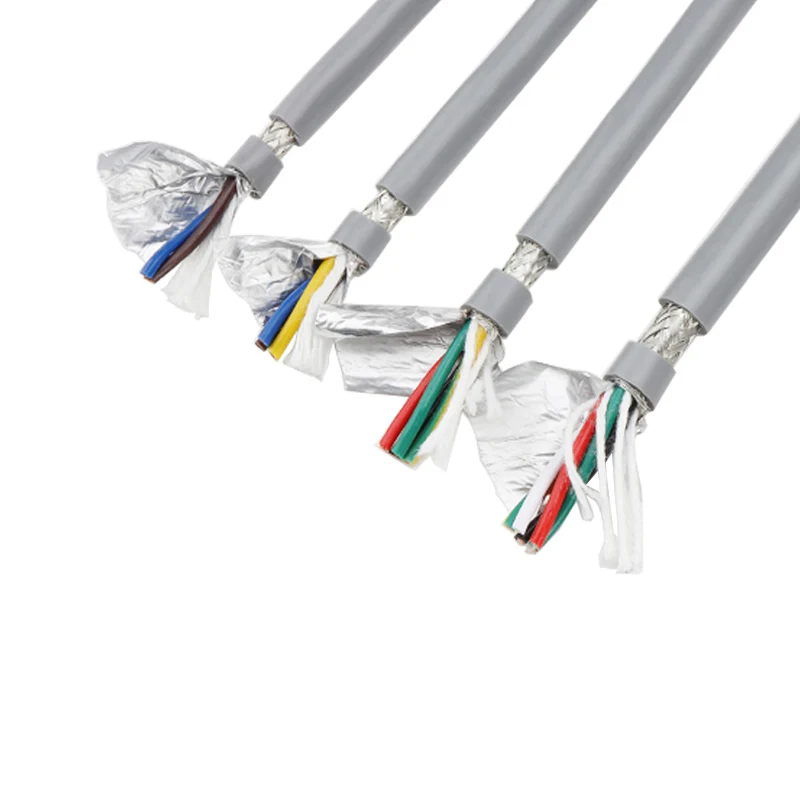

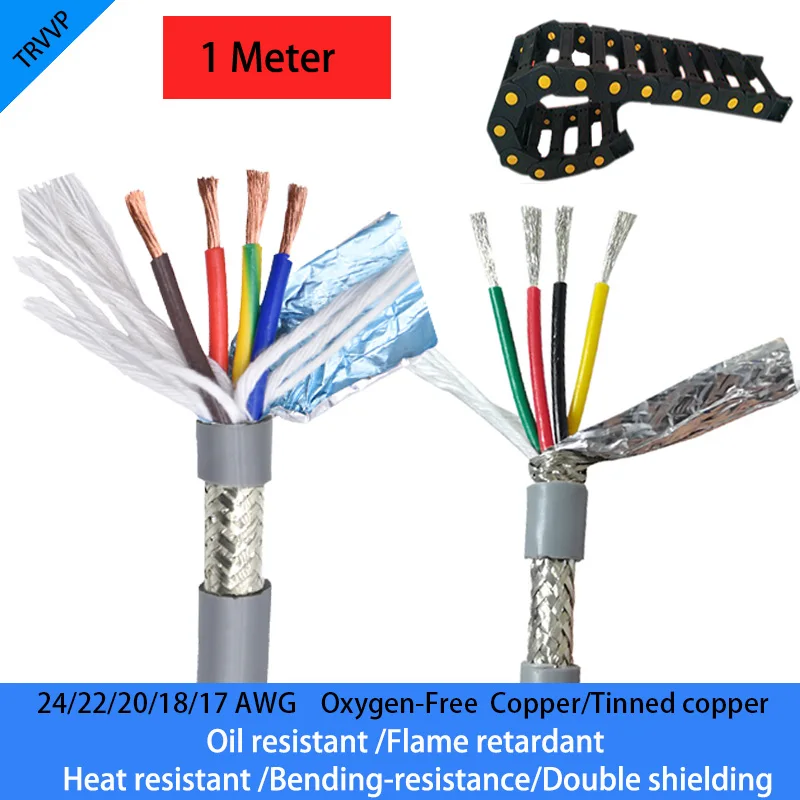

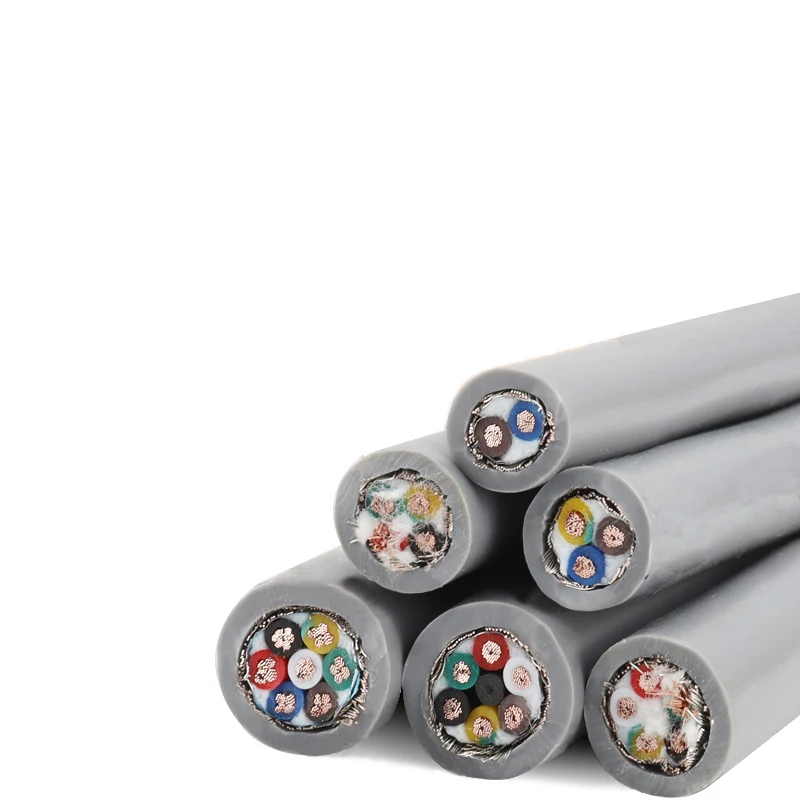

Shielded Cable TRVVP Heat-Resistant Electric Wire 24/22/20/18/17AWG 2/3/4/5/6/7/8 Core Gray PVC Insulated Towline/CNC Cable. Highly flexible and heat-resistant TRVVP cable with multiple core options (2, 3, 4, 5, 6, 7, 8) and various AWG sizes (24, 22, 20, 18, 17).
Ideal for demanding applications such as CNC machines, robotics, and automation systems, requiring reliable signal transmission and protection against interference. ?

356345

Report Abuse
Description

TRVVP Heat-Resistant Shielded Cable

  • Model Number: Shielded Cable TRVVP+24/22/20/18 AWG Drag Chain Cable
  • is_customized: Yes
  • Type: Insulated
  • Conductor Material: Copper
  • Insulation Material: PVC
  • 1.Conductor: Oxygen-free copper/Tinned copper
  • 2.Oil resistant: Oil corrosion protection
  • 3.Shielded Cable: signal anti-interference ability is strong
  • 4.Soft bending: Can be used repeatedly bending
  • 5.Temperature Range: -30℃~+105℃
TRVVP Heat-Resistant Shielded CableTRVVP Heat-Resistant Shielded CableTRVVP Heat-Resistant Shielded CableTRVVP Heat-Resistant Shielded CableTRVVP Heat-Resistant Shielded Cable

24AWG≈0.2square millimeter
22AWG≈0.3square millimeter
20AWG≈0.5 square millimeter
18AWG≈0.75 square millimeter
17AWG≈1square millimeter

TRVVP cables are mainly used in industrial electronic systems, automatic power generation lines, storage equipment, robots, fire protection systems, cranes, CNC machine tools and metallurgical industries and other work environments that require interference prevention.

Please be aware, the point.

24AWG (0.2mm²) 22AWG (0.3mm²) are tinned copper, 20AWG (0.5mm²) ~17AWG (1mm²) are oxygen-free bare copper.

TRVVP Heat-Resistant Shielded CableTRVVP Heat-Resistant Shielded Cable

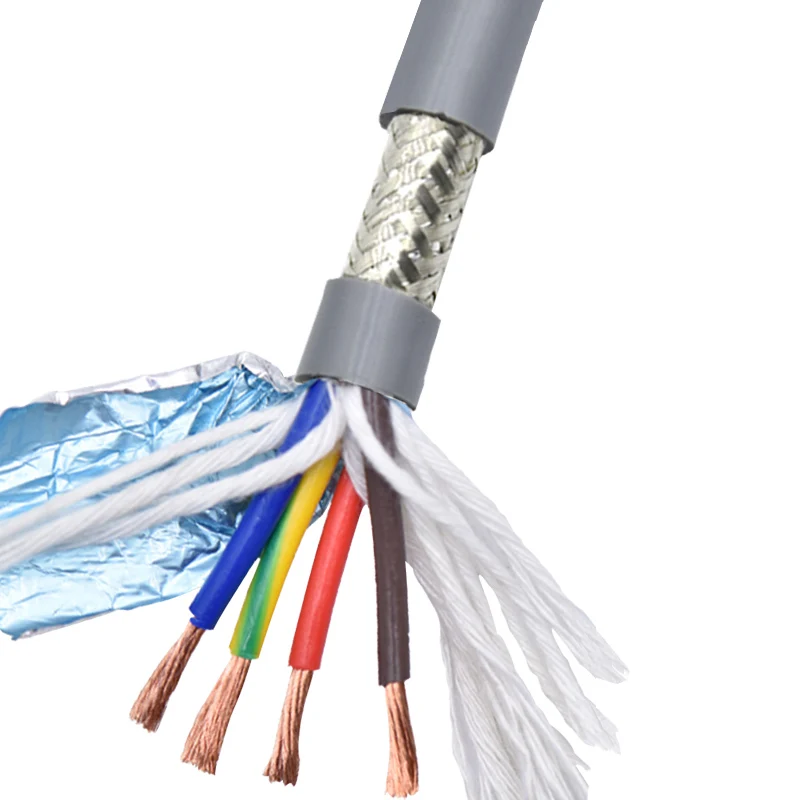

Double shielding

The use of tinned copper mesh and aluminum foil as double shielding, signal anti-interference ability is strong

TRVVP Heat-Resistant Shielded Cable

Low eccentricity

The use of advanced equipment ensures the low eccentricity and uniform thickness of the wire, which effectively prevents current breakdown and ensures the safety of electricity.

TRVVP Heat-Resistant Shielded Cable

Flame retardant wire

Safe and flame-retardant, automatically extinguished after leaving the open flame

TRVVP Heat-Resistant Shielded Cable

Oil resistant

Oil resistance, suitable for all kinds of oil work environment

TRVVP Heat-Resistant Shielded Cable

Reinforce the tensile rope

The tensile capacity is improved and the service life is longer

TRVVP Heat-Resistant Shielded Cable

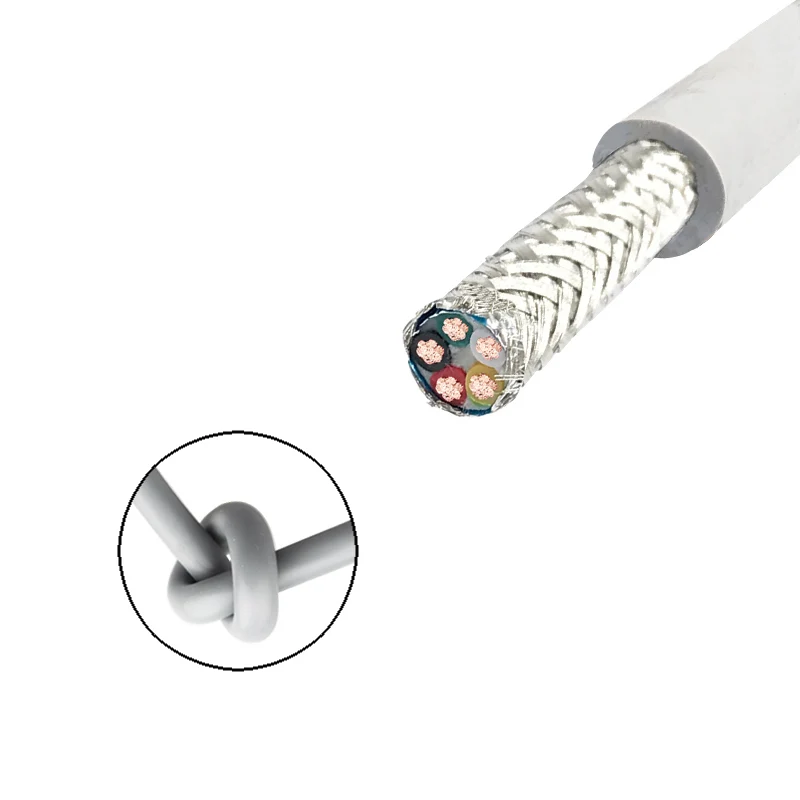

Soft bending

Better flexibility, can be repeatedly bent, bending times can reach 10 million times

TRVVP Heat-Resistant Shielded Cable

High and low temperature resistance

High and low temperature resistance, high temperature 105℃, low temperature -30℃, can work normally.

TRVVP Heat-Resistant Shielded Cable
