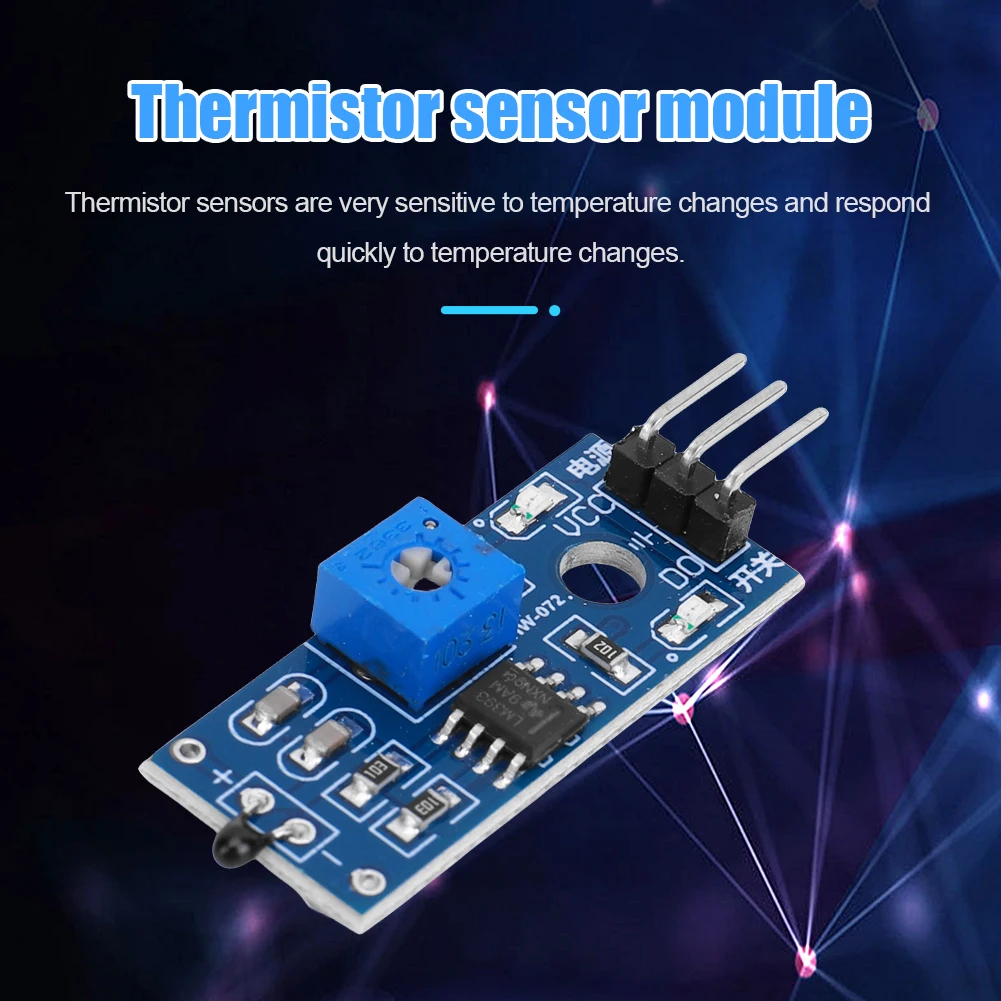

Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit

Qty

1 units

,

10 units +

633872

Report Abuse
Description

Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit

Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit

Thermal Sensor Module High Sensitivity Temperature Sensor Module DO The Digital Output Thermistor Sensor NTC for Arduino DIY Kit

Feature:
1. Real-time Temperature Measurement: The thermistor temperature sensor module provides real-time temperature measurement data by varying its resistance value according to changes in temperature. It allows for accurate monitoring of temperature variations, giving you precise temperature readings when you need them.
2. High Sensitivity and Fast Response: This temperature control switch is highly sensitive to temperature changes and can rapidly respond to fluctuations. It ensures prompt detection and monitoring of temperature changes, making it suitable for a wide range of applications in various environments, including room temperature, high temperature, and low temperature conditions.
3. High Precision Temperature Measurement: With its high precision temperature measurement capability, this thermal sensor module delivers accurate temperature data. It enables you to monitor and control temperature with confidence, ensuring optimal performance in your applications.
4. Real-time Temperature Monitoring: The temperature sensor module can detect temperature changes in real-time, providing instant feedback on temperature variations. It enables effective temperature monitoring and facilitates timely adjustments or interventions as needed.
5. Reliable Material and Design: Crafted with reliable materials and a robust structural design, this thermistor sensor exhibits stability and long-term reliability. It is built to withstand consistent use and provide accurate temperature measurements over an extended period.

Specification:
Origin: Mainland China
Uses:
Temperature detection, temperature control sensors, ambient temperature detection
Module features:
1. using NTC thermistor sensor, good sensitivity
2. Comparator output, clean signal, good waveform, strong driving capacity, more than 15mA.
3. with potentiometer to adjust the temperature detection valve value
4. operating voltage 3.3V-5V
5. Output form: digital switching output (0 and 1)
6. With fixing bolt holes for easy installation.
7. Size: 32 * 14 * 7MM
8. using wide voltage LM393 comparator

Instructions for use of the module:
1. The thermistor module is sensitive to the ambient temperature and is generally used to detect the temperature of the surrounding environment;
2. Through the adjustment of the potentiometer, you can change the threshold value of temperature detection (i.e., control temperature value), such as the need to control the ambient temperature of 50 degrees, the module is tuned in the corresponding ambient temperature to its green light is on, DO is output high level, lower than the value of this set temperature, the output of the high level, the green light does not light;
3. DO output can be directly connected to the microcontroller, through the microcontroller to detect the high and low levels, and thus to detect the temperature change of the environment;
4. DO output can directly drive our relay module, which can form a temperature control switch, control the working temperature of the relevant equipment, can also be connected to the fan for cooling and so on;
5. The temperature detection range of this module is 20-80 degrees Celsius;
6. This module can also be replaced by a temperature sensor with a wire, for water temperature, water tank control.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit Thermistor Temperature Sensor Module High Sensitivity Temperature Control Switch NTC Thermal Sensor Module for Arduino DIY Kit
