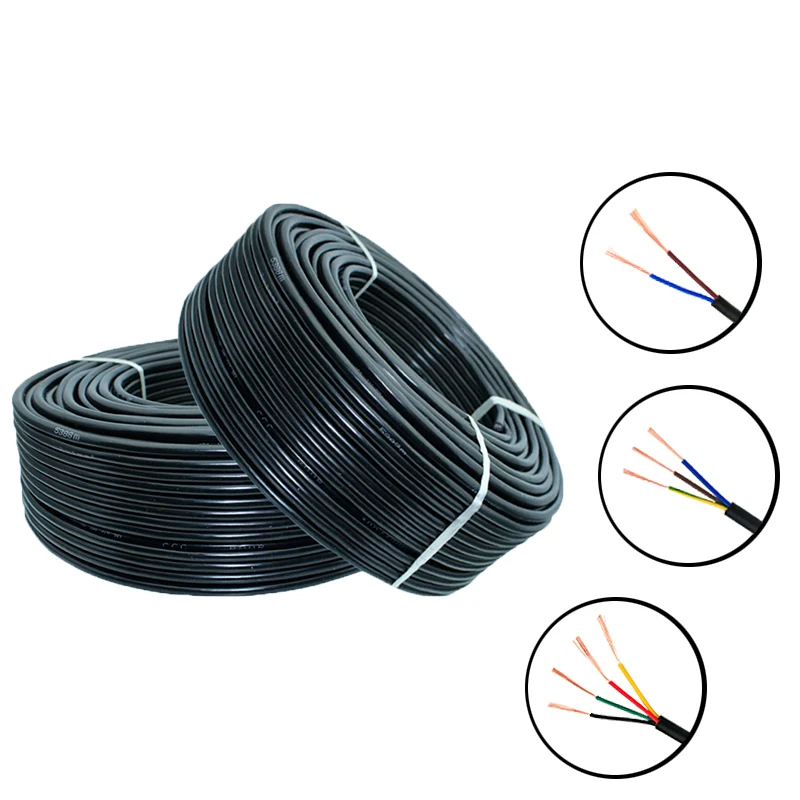

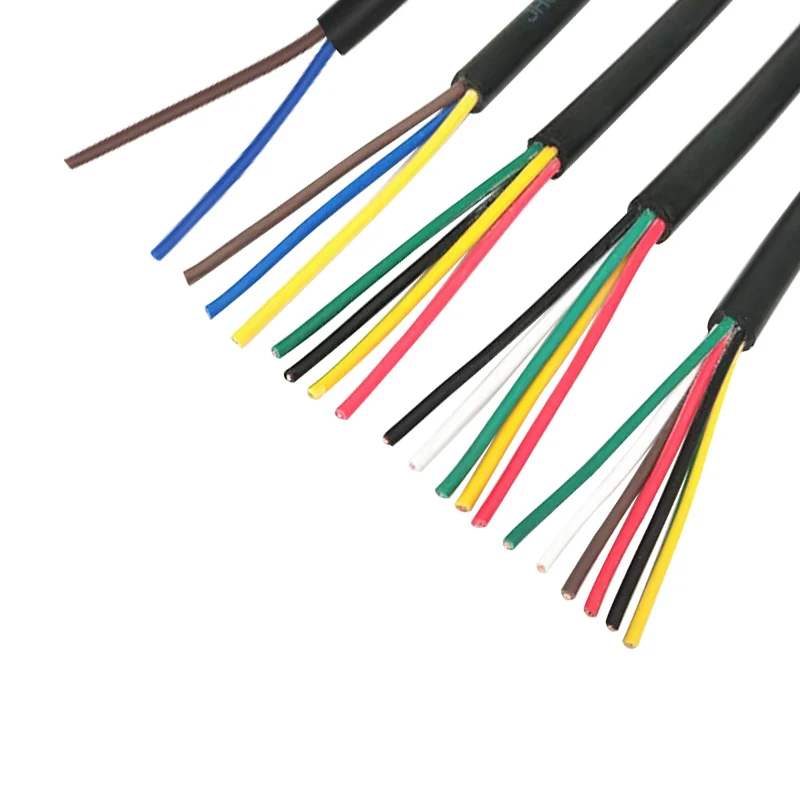

RVV Cable 24AWG

RVV Cable 24AWG 2/3/4/5/6/7/8 Cores Control Signal Line Copper Wire Black sheathed Insulated PVC Power Cord Cable DIY. Versatile and flexible RVV cable with 24AWG copper conductors, ideal for various DIY projects, electronics, and control systems. Available in different core counts (2, 3, 4, 5, 6, 7, 8) to suit your specific needs.

?

546336
Description
  • Model Number: RVV
  • is_customized: Yes
  • Type: Insulated
  • Conductor Material: Copper
  • Insulation Material: PVC
  • Origin: Mainland China
  • Certification: none
  • 1.Oxygen-free pure copper wire: Small resistance, not easy to heat, excellent transmission performance
  • 2.Flame retardant wire: Safe flame retardant, no flame is not easy to burn
  • 3.Soft bending: Soft, easy to bend,Current output stability
  • 4.Low eccentricity: The outer layer is uniform in thickness to prevent current breakdown

Mainly used in electrical appliances, instrumentation and electronic equipment and automation devices with Power Cord, control lines and signal transmission lines, can also be used for anti-theft alarm system, building intercom system, etc.

24AWG≈0.2 square millimeter
Number of single core copper wires: 12 shares

The products are all multi-core and multi-strand copper wires, the following is the maximum outer diameter of the product for reference:

2cores 24awg(0.2 mm2) Outer Diameter :3.6mm
3cores 24awg(0.2 mm2) Outer Diameter :3.8mm
4cores 24awg(0.2 mm2) Outer Diameter :4.2mm
5cores 24awg(0.2 mm2) Outer Diameter :4.6mm
6cores 24awg(0.2 mm2) Outer Diameter :4.9mm
7cores 24awg(0.2 mm2) Outer Diameter :5.3mm
8cores 24awg(0.2 mm2) Outer Diameter :5.8mm

Oxygen-free pure copper wire core

Good electrical conductivity, small resistance, not easy to heat, durable and stable

RVV Cable 24AWG

High-quality insulating PVC material

RVV Cable 24AWG

Flame retardant wire

Adopt high quality PVC plastic, safe and flame retardant, automatically extinguish after leaving the open fire.

RVV Cable 24AWG

Soft bending

The wire body is soft and easy to bend, easy to arrange wiring and ensure power supply.

RVV Cable 24AWG

Low eccentricity

The use of advanced equipment to ensure the low eccentricity of the wire, uniform thickness, effectively prevent current breakdown, ensure the safety of electricity.

RVV Cable 24AWG
