Multi-Cell Lithium Battery Charger

Multi-Cell 2S 3S 4S Type-C To 8.4V 12.6V 16.8V Step-Up Boost LiPo Polymer Li-Ion Charger 7.4V 11.1V 14.8V 18650 Lithium Battery. Power up your multi-cell lithium batteries with this versatile charger. Supporting 2S, 3S, and 4S configurations, it efficiently charges LiPo, polymer, and Li-ion batteries, including popular 18650 cells.

758659
Description

Product introduction:
1:Diverse choices, customers choose their needs according to different needs
2: Wide range of applications
3: High safety performance
4: Simple to understand and easy to operate
5: Battery over-voltage protection

Product parameters:

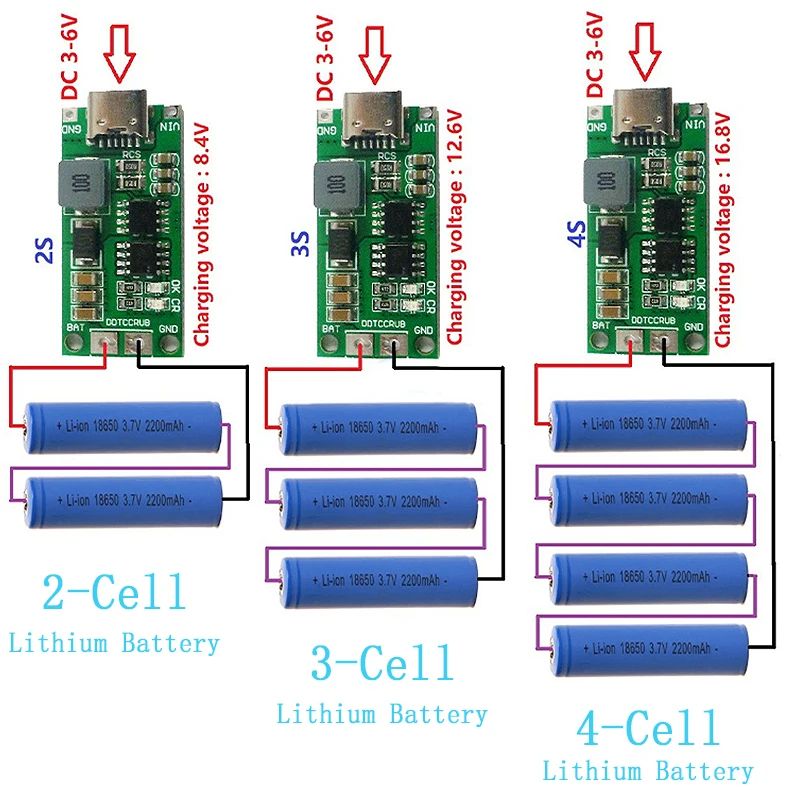

2-Cell(2S) 8.4V version:

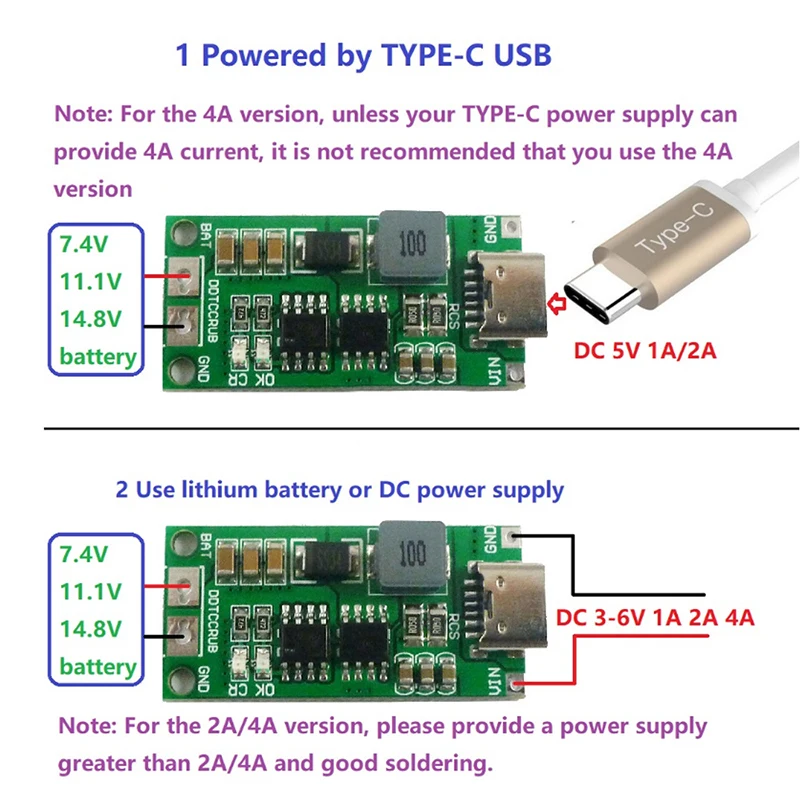

Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A (1A version); 2A (2A version); 4A (4A version)
Charging voltage : 8.4V
Charging current : 0.55A(1A version);1.1A(2A version);2.2A(4A version)

3-Cell(3S) 12.6V version:

Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A (1A version); 2A (2A version); 4A (4A version)
Charging voltage : 12.6V
Charge current: 0.37A (1A version); 0.74A (2A version); 1.48A (4A version)

4-Cell(4S) 16.8V version:

Input voltage: DC 3-6V (DC 3.7V 5V recommended)
Input current: 1A (1A version); 2A (2A version); 4A (4A version)
Charging voltage: 16.8V
Charge current: 0.28A (1A version); 0.56A (2A version); 1.12A (4A version)

Switching frequency up to 1MHz
Quasi-CV mode compensates for battery internal resistance voltage loss and alignment resistance cells
Automatic re-charging
Protection against voltage below input and battery short circuit
Good adaptability to input power, limited drive capability
Battery overvoltage protection

LED indicators: “CR” LED for charging status indicator
                   “OK” LED for full charge or constant voltage mode.

Operating ambient temperature -40℃ to +85℃

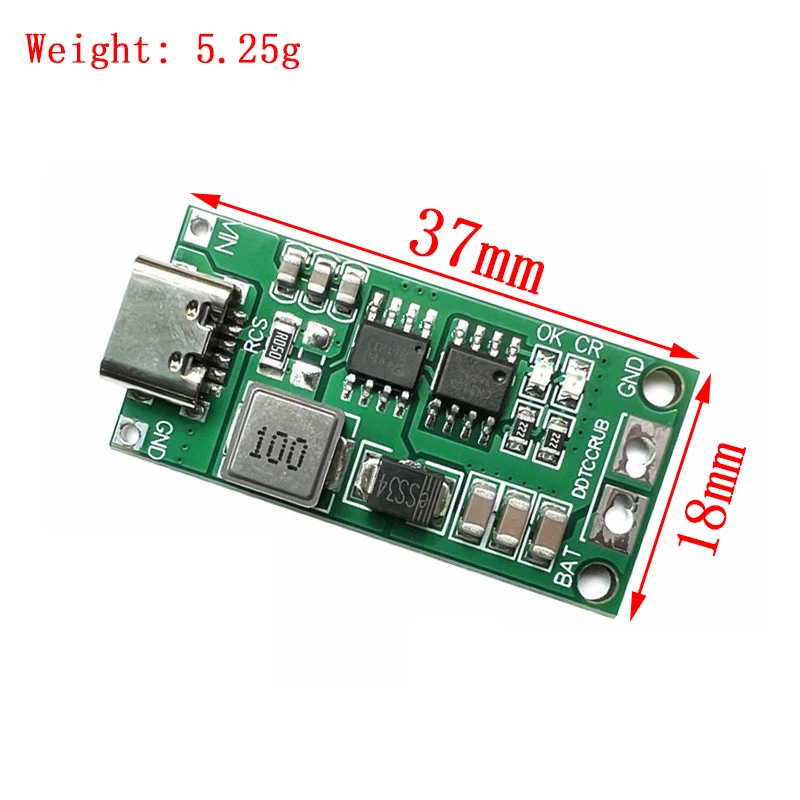

Dimensions 39mm x 18mm x 6.3mm
Weight: 5g

Product Applications:
PDA, MP3 player, MP4 player
Digital camera
Bluetooth applications
Game consoles
Notebook
Lithium Battery Lithium Battery 18650
Cell phone
Solar Charging
Audio Equipment
Portable devices
POS, electric fan
TYPE-C charging device

Multi-Cell Lithium Battery Charger

Multi-Cell Lithium Battery Charger

Multi-Cell Lithium Battery Charger

Multi-Cell Lithium Battery Charger

Multi-Cell Lithium Battery Charger

Multi-Cell Lithium Battery Charger
