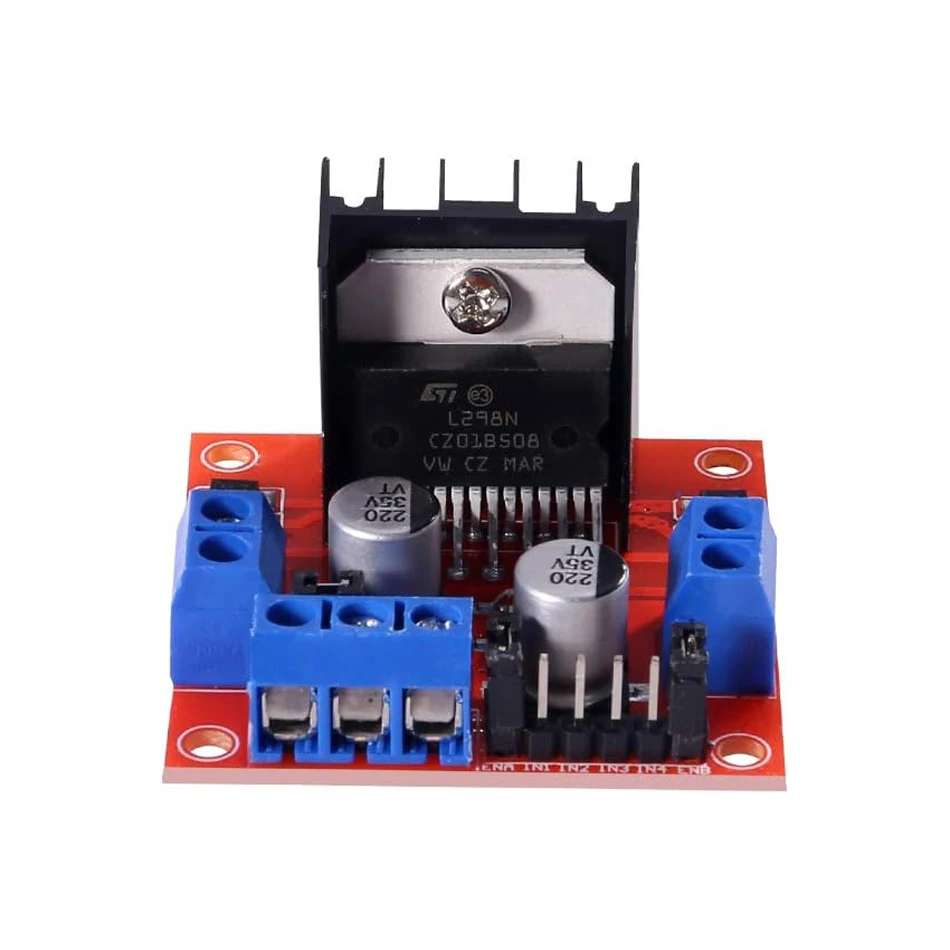

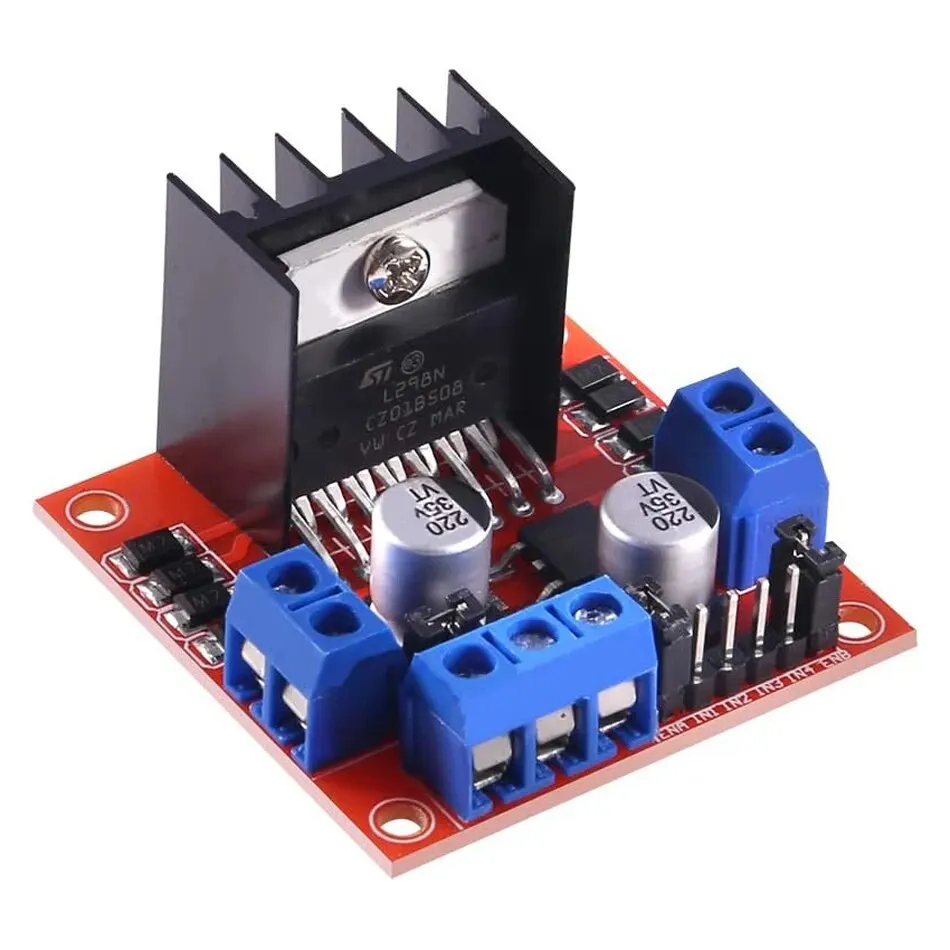

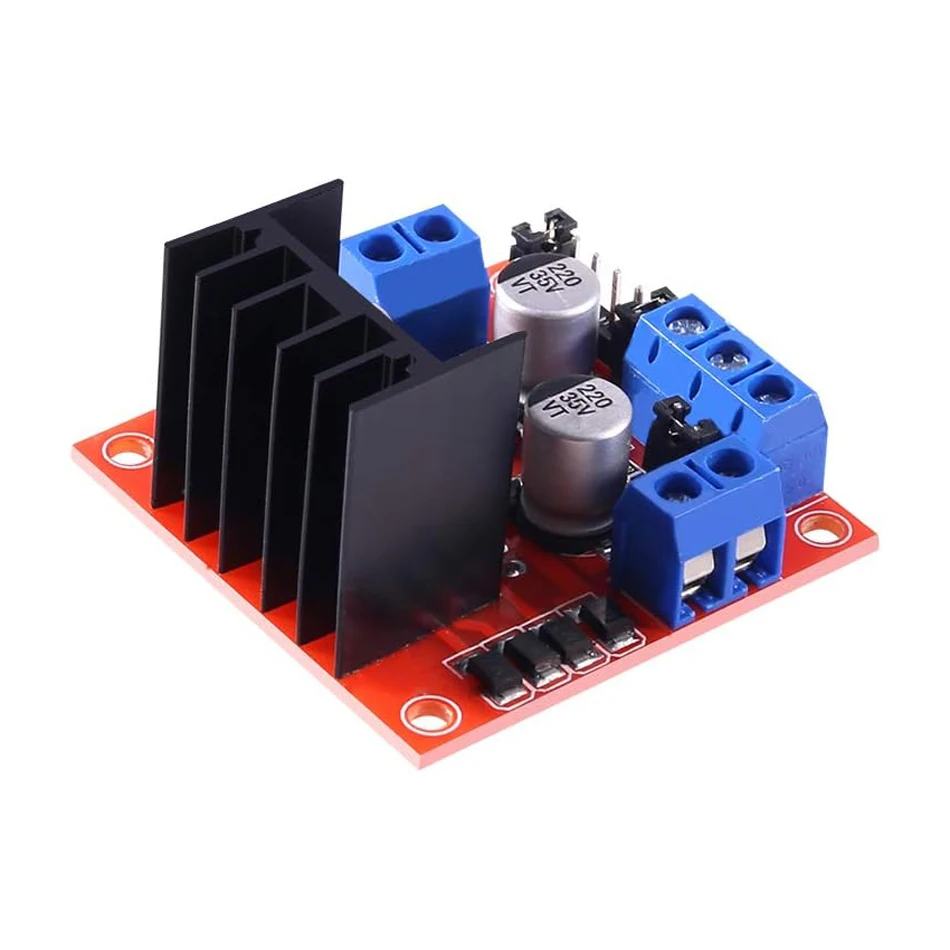

L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560

179793
Description
  • Main driver chip L298N, strong driving ability, strong anti-interference, low calorific value, afterflow diode protection, more stable and reliable.

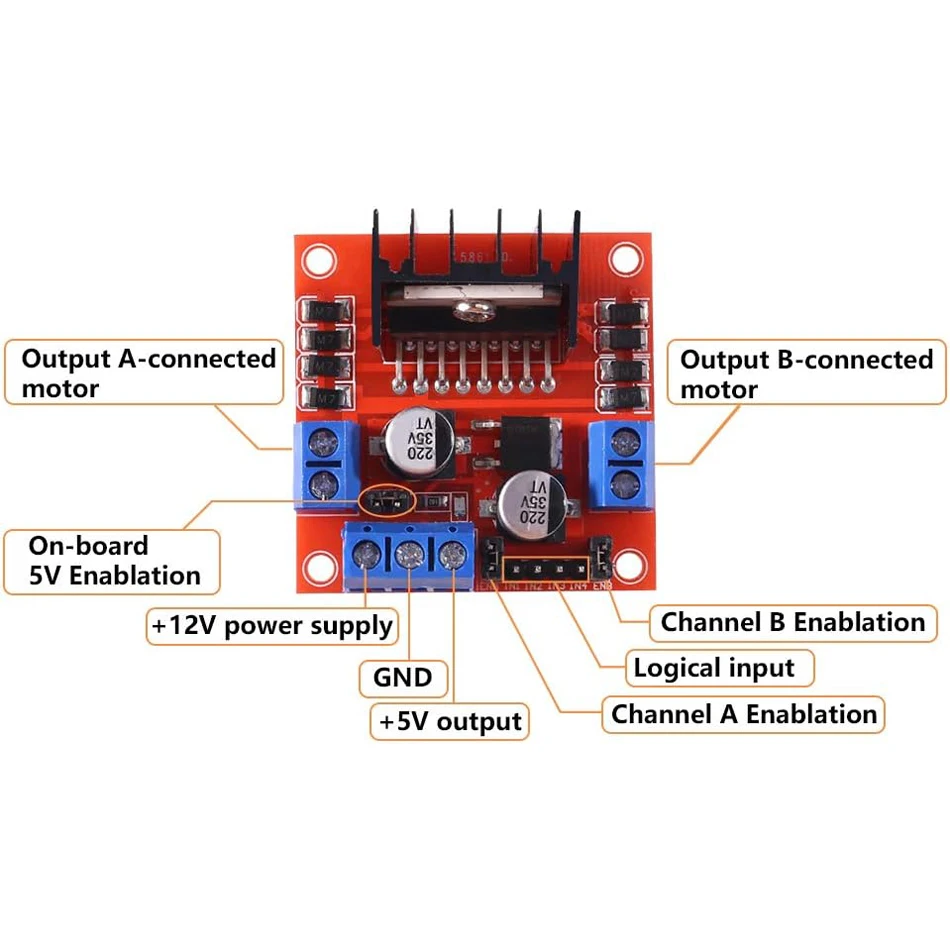

  • Double H bridge design, can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors, high efficient
  • No assembly required. This L298N board comes ready to go. Just wire up motors and power, easy to use
  • External size 43*43*27mm / 1.69*1.69*1.06 inch, voltage 5V-35V, drive current 2A (Max single bridge)
  • Great for DIY Smart Car Robot Power MEGA R3 Mega2560 Duemilanove. If driving voltage is more than 12V, please use external standard 5volt TTL outputs to switch the H-bridge circuits

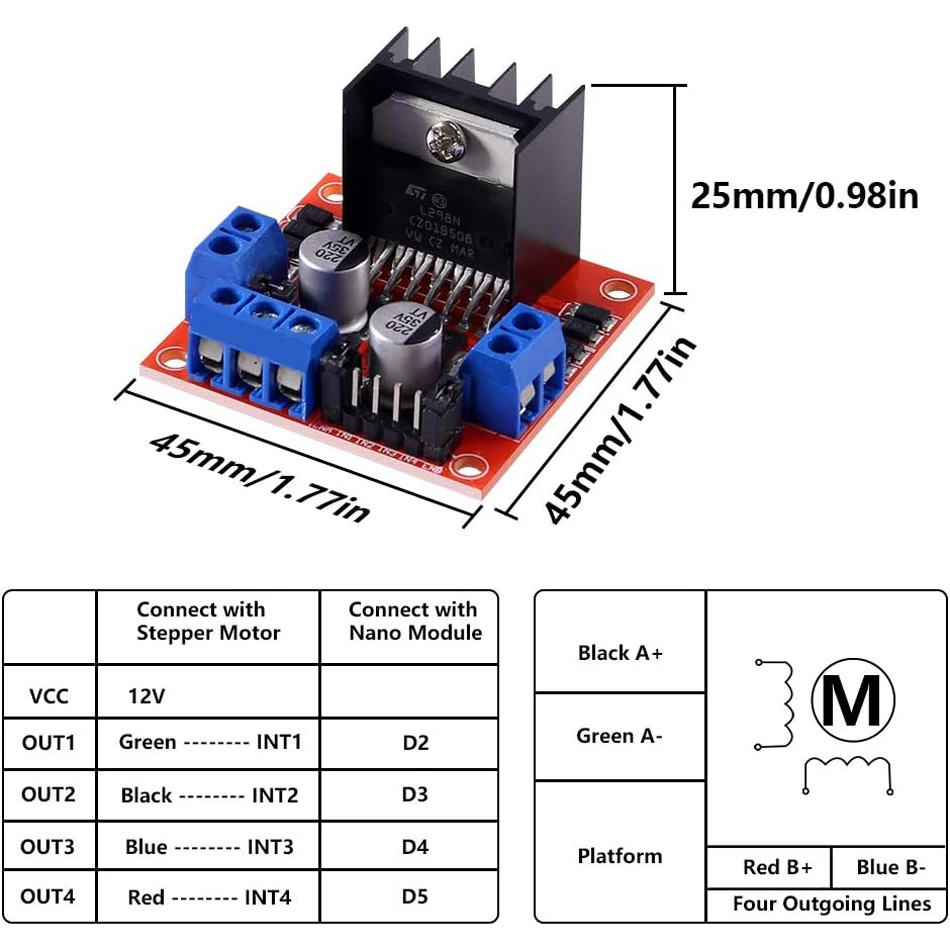

  • Size: 45*45*25mm/ 1.77*1.77*0.98 inch Dual H bridge drive (can drive 2 DC motors)
  • Chip: L298N
  • Logical voltage: 5V
  • Drive voltage: 5V-35V
  • Logic current: 0mA-36mA
  • Drive current: 2A (For each DC motor)
  • Weight: 30g

L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560L298N Stepper Motor Driver Controller Board Dual H Bridge Module for Smart Car Power MEGA R3 Mega2560
