KUOYUH 98 Series Circuit Breakers

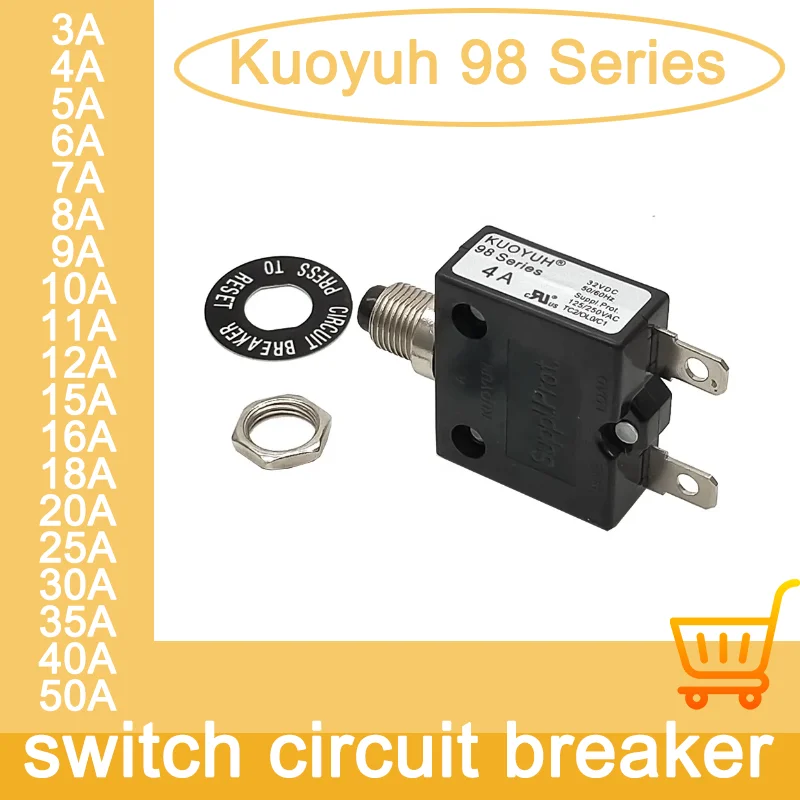

KUOYUH 98 series circuit Breaker 3A?30A overload protector push button switch manual reset switch. Protect your electrical circuits with our high-quality KUOYUH 98 series circuit breakers. Available in a range of amperage ratings (3A to 30A), these circuit breakers offer reliable overcurrent protection. The manual reset feature allows for easy reset after a trip.

234742
Description

KUOYUH 98 Series Circuit Breakers

Product Description
KUOYUH 98 Series Circuit Breakers
KUOYUH 98 Series Circuit Breakers
KUOYUH 98 Series Circuit Breakers
KUOYUH 98 Series Circuit Breakers
KUOYUH 98 Series Circuit Breakers
Technical data
Current rating range:5~30A
Input voltage rating:125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life :1,000 operations at 200% overload1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV Rated impulse withstand voltage 2.5kV Dielectric Strength:>
1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40Technical data
Mechanical/Environmental Date
Operating Ambient Temperature: -10℃ to +60℃

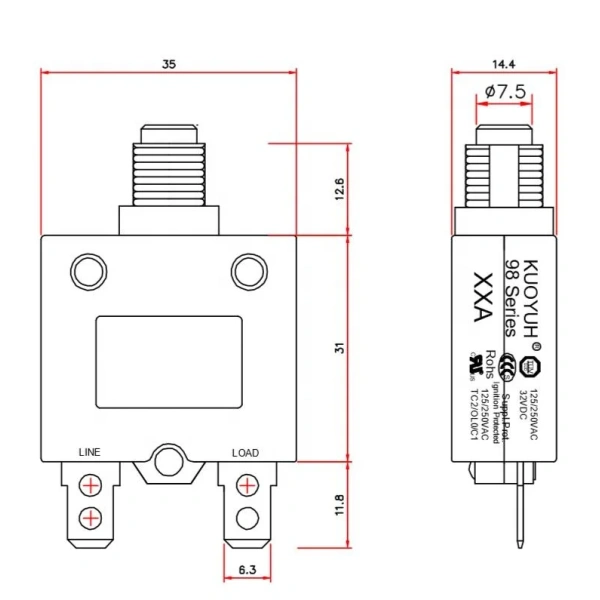

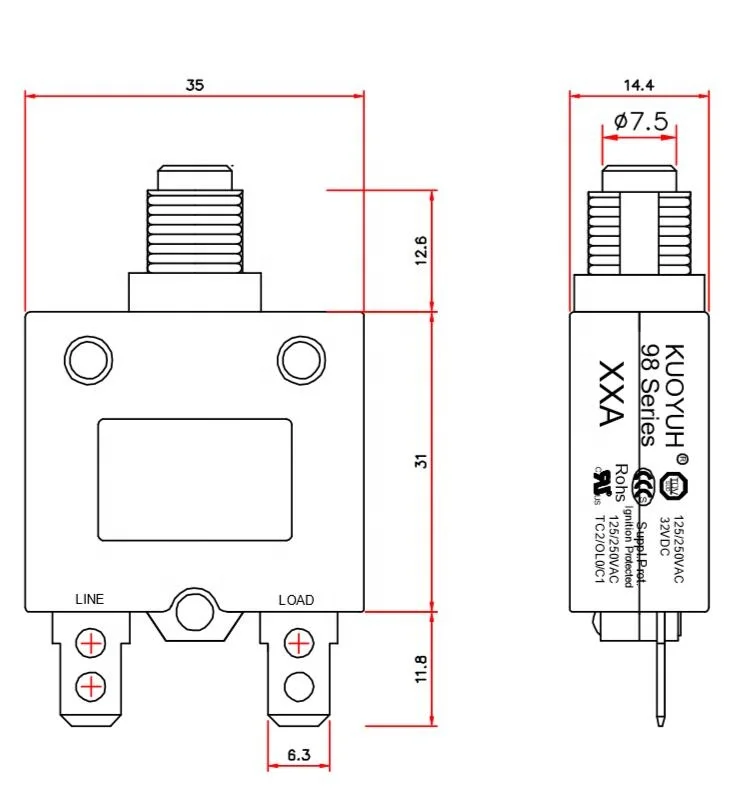

Mounting: Various options. See Ordering Information and drawings
Termination: 250”(6.35mm)quick connects or solder terminals

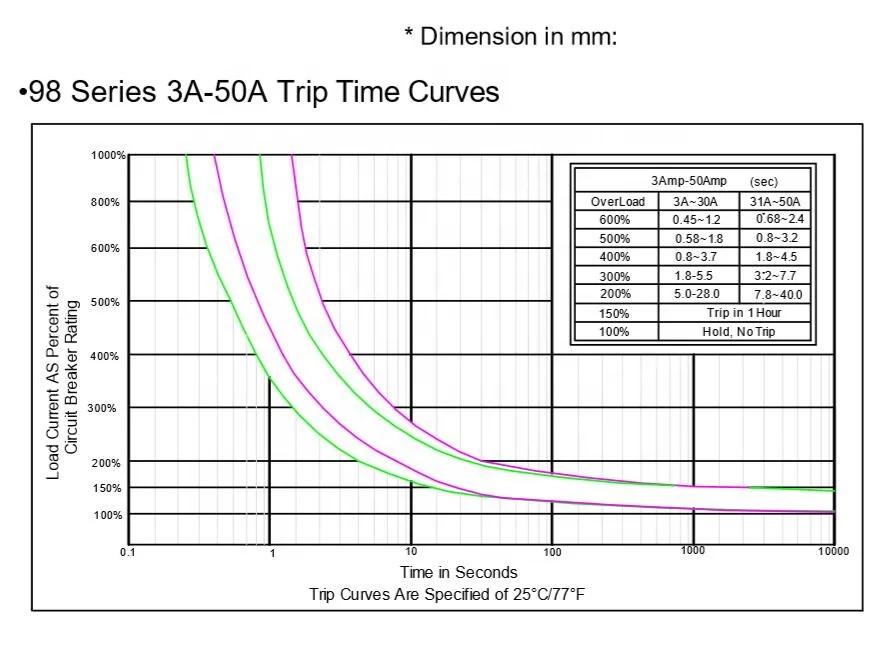

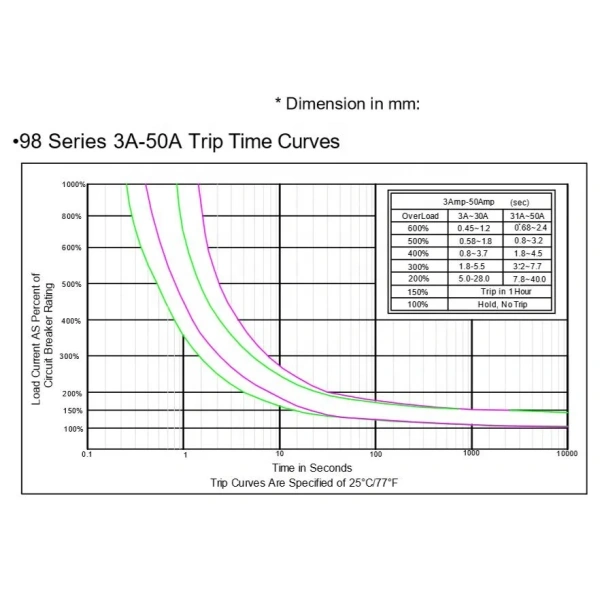

Calibration(at25℃)
100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip •
200% of Rated Current: 5-30 sec Trip •
150% ofRated Current: Trip Within 1 Hour
