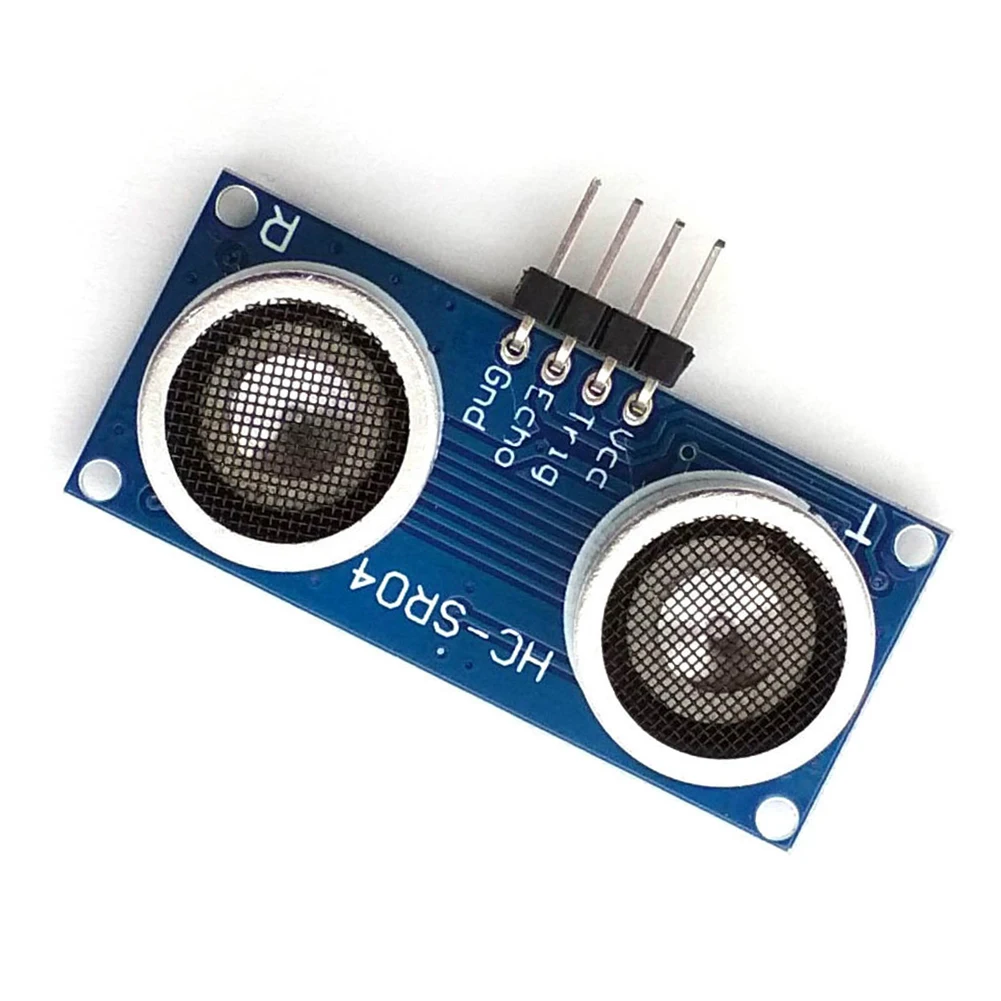

HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components

275135
Description
HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components

HC-SR04P Distance Measuring Sonar Sensor Board 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components
Features:
1.Wide Voltage Range: The HC-SR04P Ultrasonic Distance Sensor Module operates on a wide voltage range, allowing it to be compatible with various power supplies from 3V to 5.5V. This versatility ensures seamless integration into different projects and systems.
2.Full Compatibility: The ultrasonic ranging sensor’s size and software are fully compatible with the older version HC-SR04, making it easy to upgrade or replace without any compatibility issues. You can seamlessly switch between the HC-SR04P and the older version without any disruptions.
3.Long Detection Range: With a detection range of up to 450cm (5V) or 400cm (3.3V), this wide ultrasonic sensor excels in accurately measuring distances over a wide range. It provides reliable and precise distance measurements for your applications.
4.Durable and Reliable: Built to last, this ranging sensor module is designed with industrial-grade components and a sturdy construction. It can withstand various environmental conditions and deliver consistent performance even under demanding circumstances.
5.Easy to Use: The HC-SR04P distance measuring sonar sensor board offers user-friendly operation, making it suitable for both beginners and experienced users. Its simple interface and straightforward setup ensure hassle-free usage, saving you time and effort.

Specification:
Origin: Mainland China
Model Number: Ultrasonic Ranging Module
Theory: Ultrasonic Sensor
Wide Voltage Operation: 3v-5.5v, Fully Compatible With Hc-Sro4 Software And Hardware Size
Detection Distance:
5v:2cm-450cm/0.78-175.5in
3.3v:2cm-400cm/0.78-156in
Detection Angle: <15
Adopt Industrial Grade Mcu, Working Temperature: -20℃-80℃.

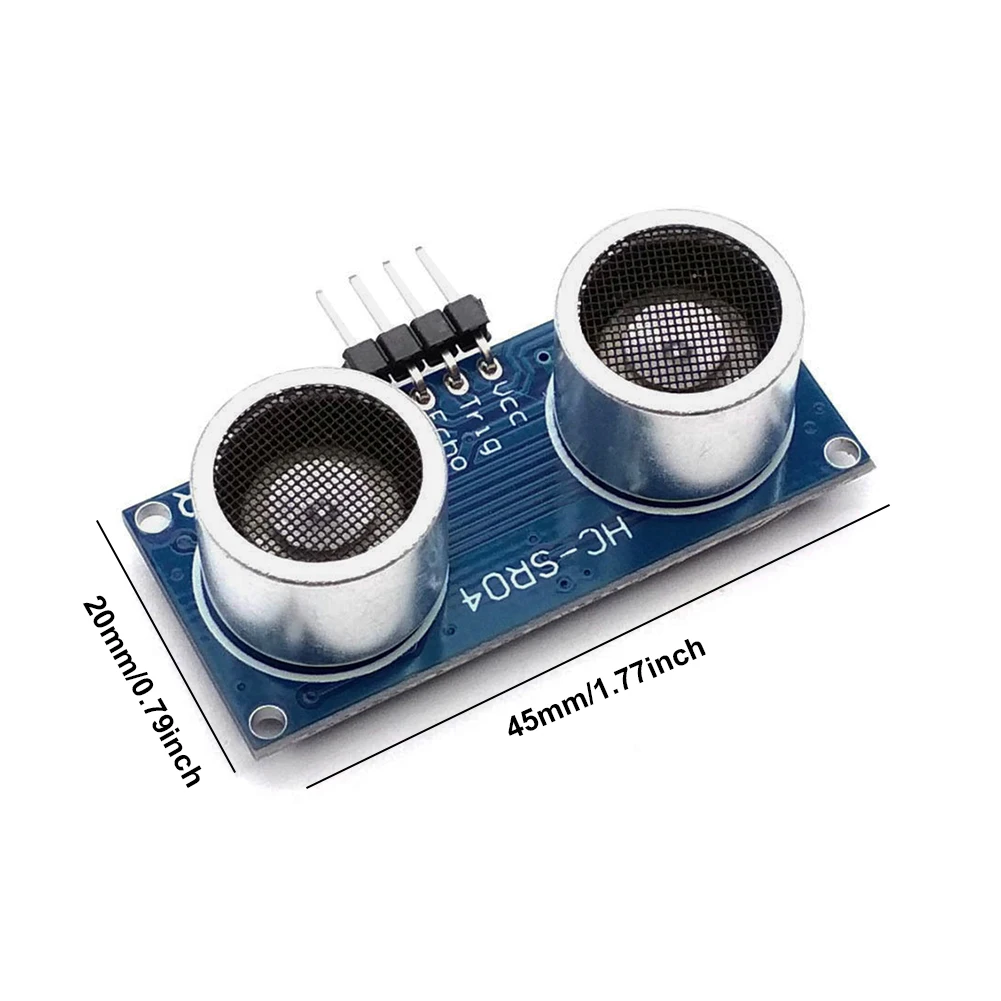

Size: 45.00×20.00×15.00mm/1.77×0.79×0.59inch
1.HC-SRO4-P is a wide voltage ultrasonic distance measuring module.
2. The module form factor and software are fully compatible with the old version of HC-SRO4.
3. Seamless switching with the old version of HC-SRO4.
4. The low operating voltage as low as 3V enables it to be directly connected with 3.3V-powered MCL.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components HC-SR04P Ultrasonic Ranging Module 3-5.5V Wide Voltage Distance Measuring Transducer Electronic Components
