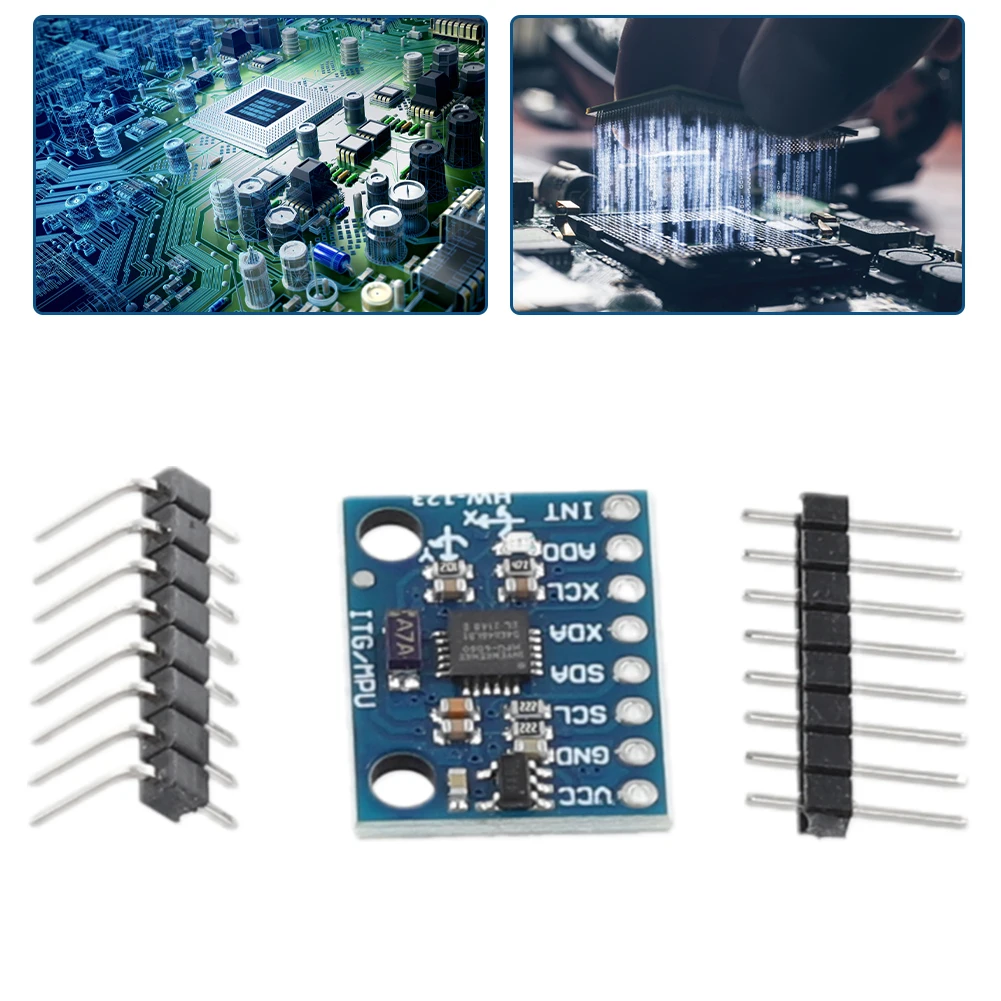

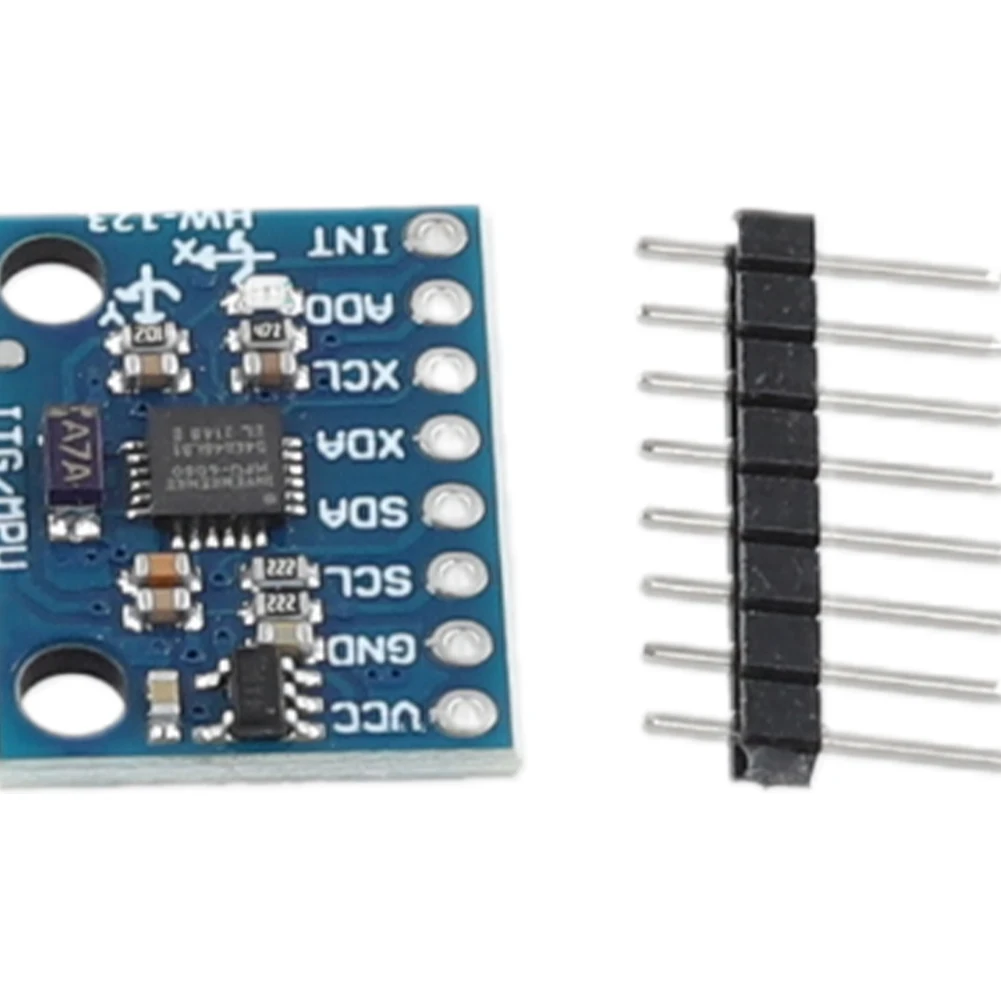

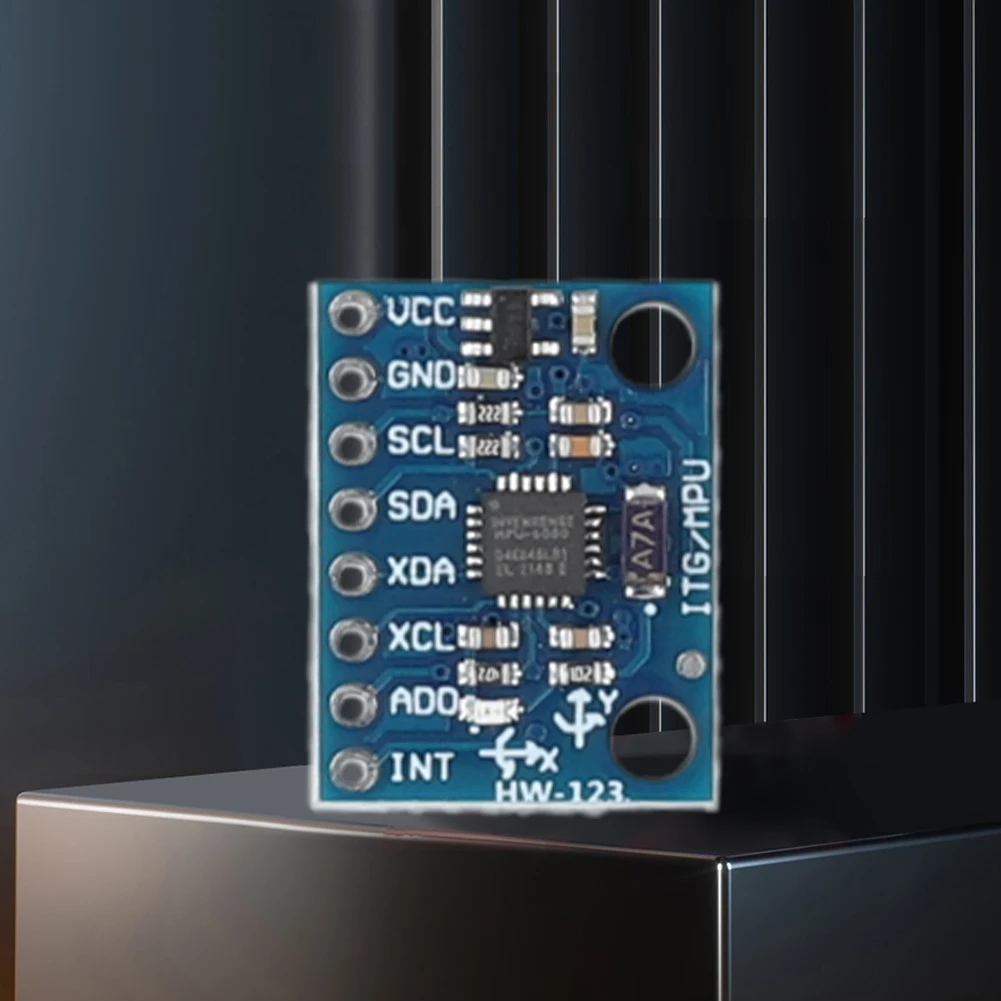

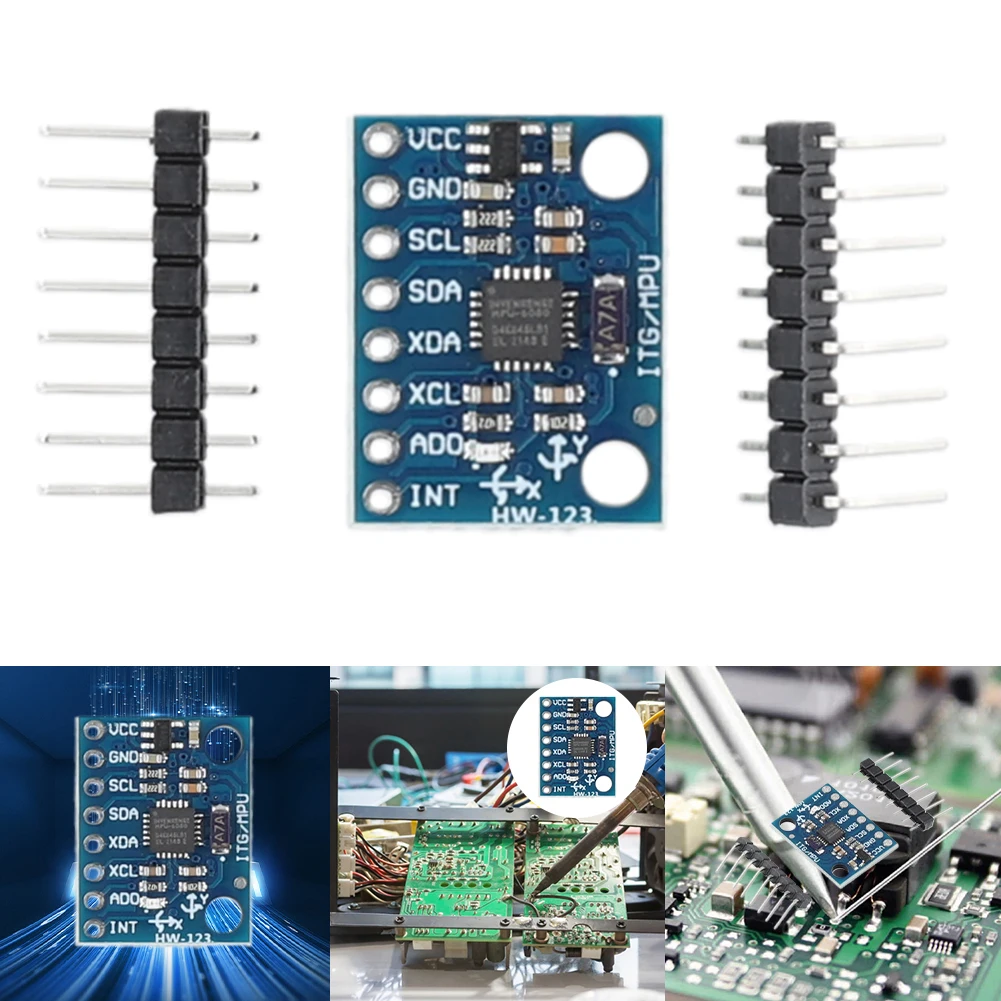

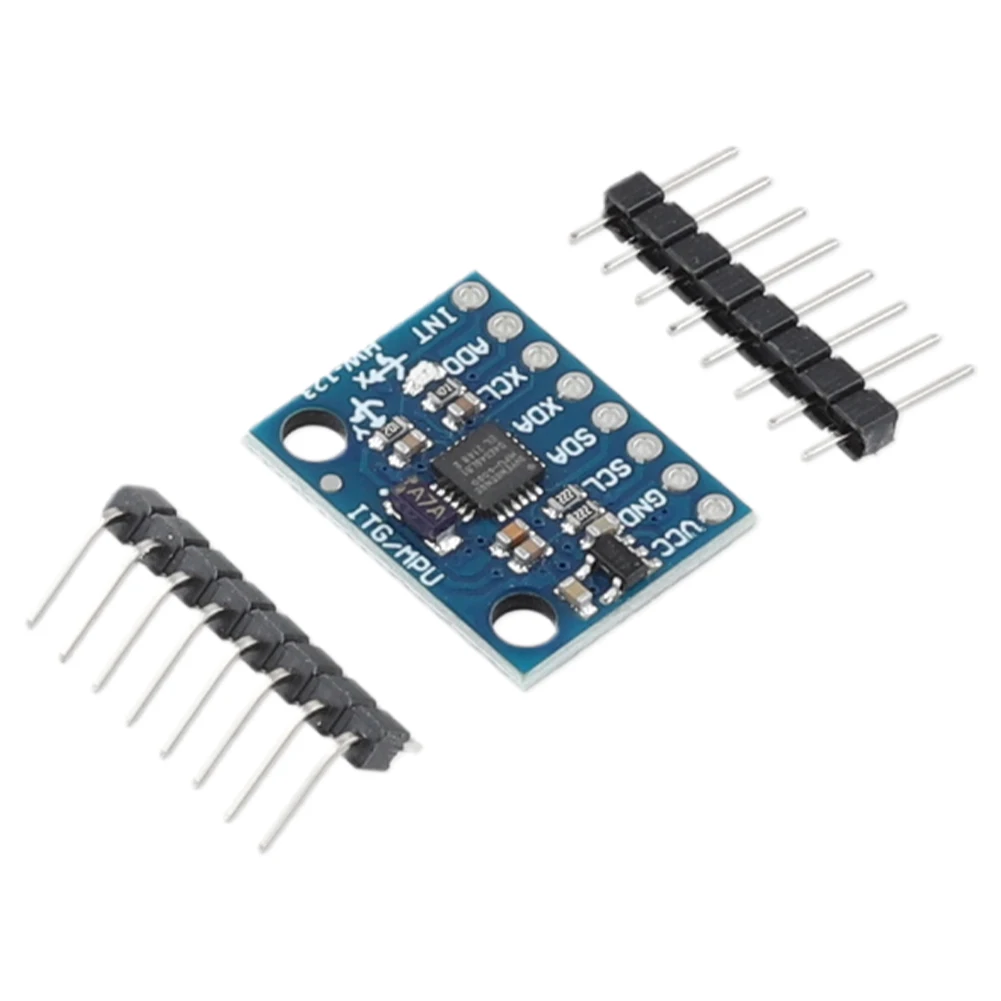

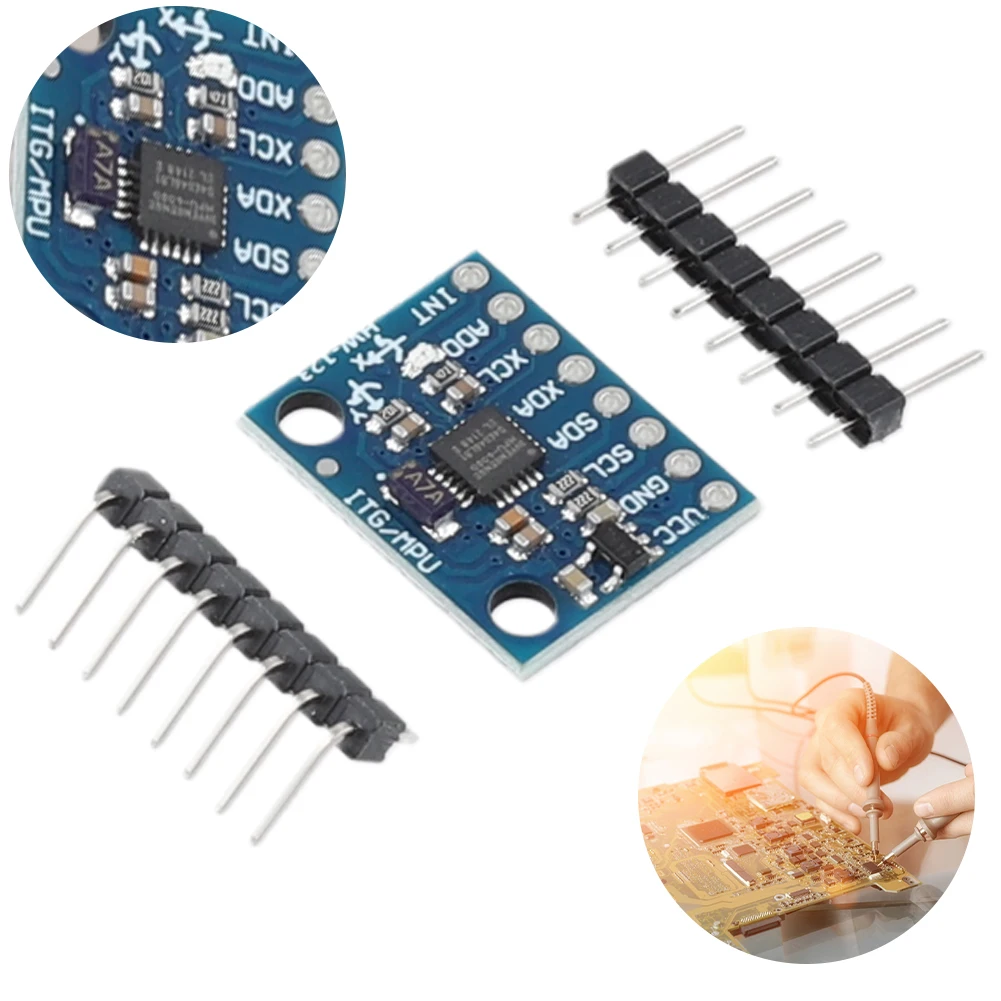

GY-521 MPU-6050 3 Axis Analog Gyro Sensors 16 Bit Data Output 3 Axis Accelerometer Module IIC I2C MPU6050 Module for Arduino

Name: GY-521 MPU-6050 3 Axis Analog Gyro Sensors 16 Bit Data Output 3 Axis Accelerometer Module IIC I2C MPU6050 Module for Arduino - Electronic components online
SKU: 751467
Price: 1.00 MYR
Availability: InStock

751467

Compare

Add to wishlist

SKU: 751467 Categories: Arduino Modules + sensor, Development boards & modules

Description

GY-521 MPU-6050 3 Axis Analog Gyro Sensors 16 Bit Data Output 3 Axis Accelerometer Module IIC I2C MPU6050 Module for Arduino

GY-521 MPU-6050 3 Axis Accelerometer Module 16 Bit AD Converter 6 DOF Gyroscope Sensor Module IIC I2C MPU6050 Module for Arduino

Feature:
1. Accurate Fusion Algorithm: This 3 axis analog gyro sensor provides precise fusion algorithm data output in the form of a digital output, offering 6-axis or 9-axis rotation matrices, quaternions, and Euler angles. With this advanced fusion algorithm, you can obtain accurate orientation information.
2. High Sensitivity and Range: The accelerometer module features a high sensitivity of 131 LSBs/°/sec and a wide angular velocity sensing range of ±250, ±500, ±1000, and ±2000°/sec. This allows for precise measurement and detection of rotational movements in various applications.
3. Programmable Control: You can easily program and control the 3 axis accelerometer module as per your requirements. The programmable control range includes ±2g, ±4g, ±8g, and ±16g for the 3-axis accelerometer, providing flexibility to adjust the sensitivity based on your needs.
4. Reduced Drift and Interference: By removing the impact between the accelerometer and gyro axes, the 6 DOF gyroscope sensor module effectively reduces the influence and drift caused by external factors. This ensures more accurate and reliable readings, enhancing the overall performance of the sensor.
5. Digital Motion Processing (DMP) Engine: The MPU6050 module incorporates a powerful DMP engine that simplifies complex fusion algorithm data, sensor synchronization, and posture sensing. This not only reduces the computational load but also enhances the efficiency and accuracy of motion tracking.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Chip used: MPU-6050
Power supply: 3-5v (internal low dropout voltage regulator)
Communication mode: standard IIC communication protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyroscope range: ±250 500 1000 2000 °/s
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Adopting immersed gold PCB, machine soldering process to ensure the quality
Pin spacing 2.54mm
Size: 21x16x3mm/0.83×0.63×0.12inch
Application:
Motion sensing games
Reality Enhancement
Electronic Image Stabilisation (EIS: Electronic Image Stabilization)
Optical Image Stabilisation (OIS: Optical Image Stabilisation)
Pedestrian navigators
“Zero-touch” gesture user interface
Posture shortcuts

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
