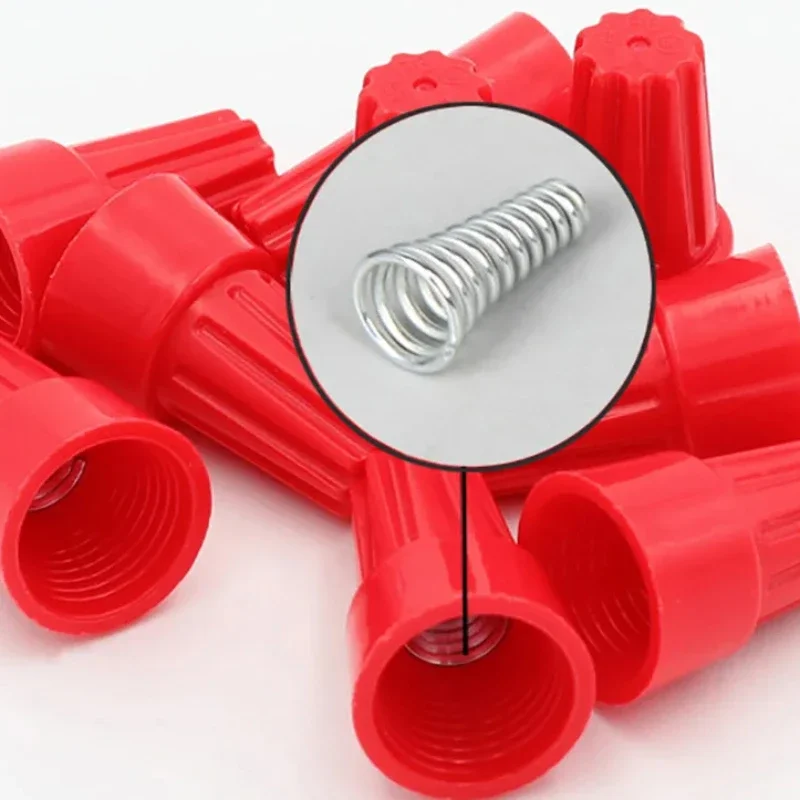

Fast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire Connection

497688
SKU: 497688 Categories: ,
Description
  • Model Number: P1 P2 P3 P4 P6
  • Origin: Mainland China
  • Certification: CE
Product Description:

Product Name: Wring Crimping Cap Connector
Model No.: P1/P2/P3/P4/P6

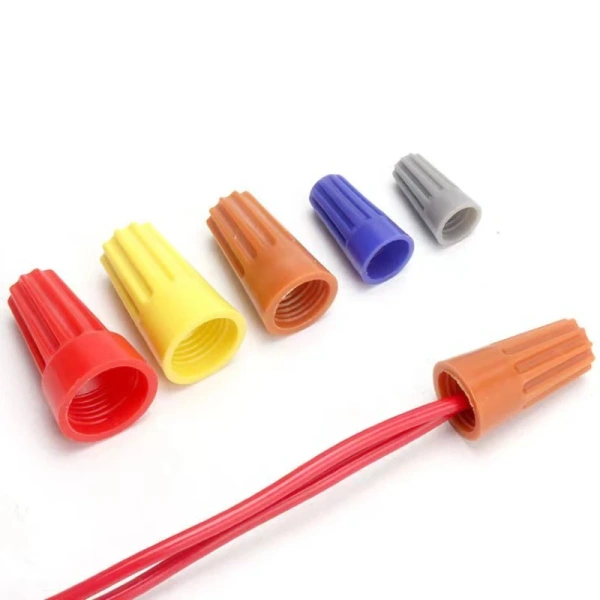

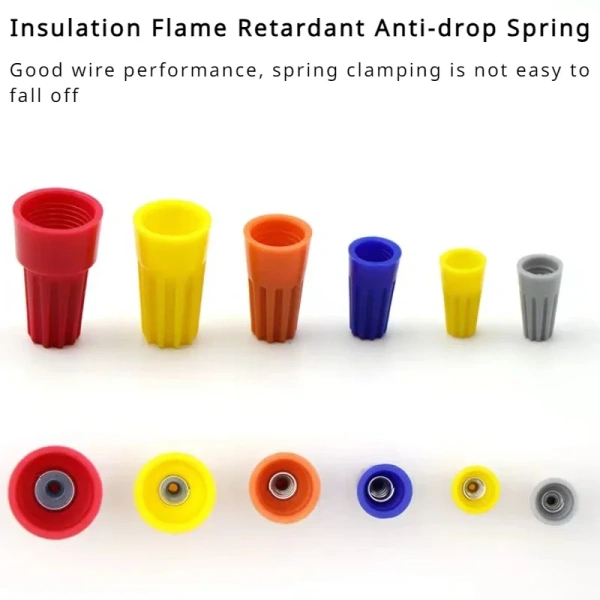

Wire Size:
Gray(P1):0.2-2.5mm² AWG24-14
Blue(P2):0.5-2.5mm² AWG22-14
Orange(P3):0.5-4mm² AWG22-12
Yellow(P4):0.5-6mm² AWG22-10
Red(P6):0.5-10mm² AWG22-7

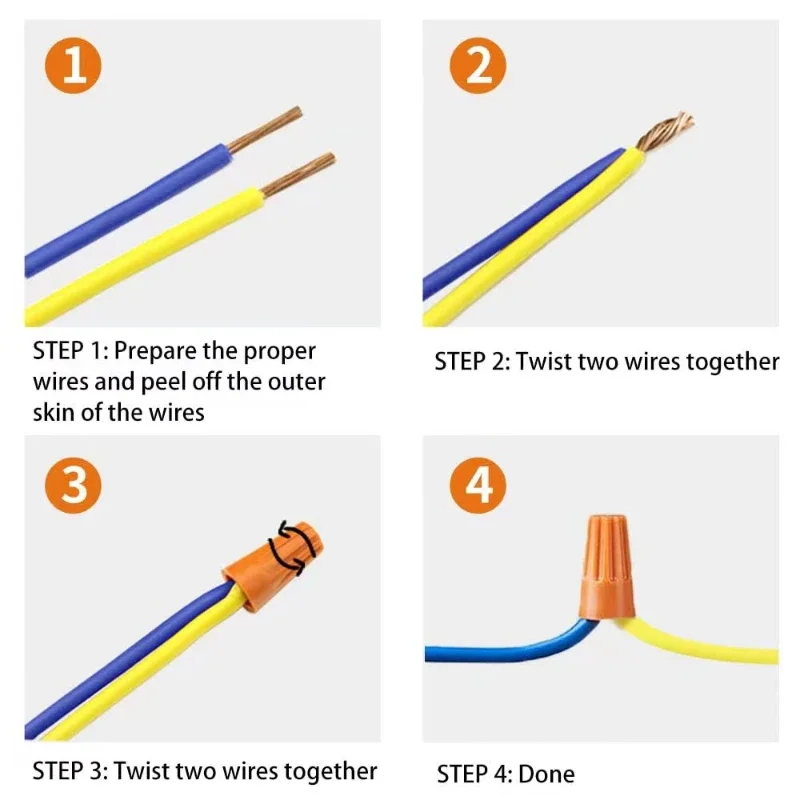

Using Steps:

1.Peel the wire jacket off used by the wire stripper.
2.Tighten the naked wire and merge the wire.
3.Insert the wire into the connector and rotate it clockwise.
Fast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire ConnectionFast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire Connection

       Fast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire Connection Fast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire Connection Fast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire Connection Fast Connector Spring Cap Crimp End Terminal AWG24-7 Insulated Electrical Insert Splice Rotating Wire Connection
