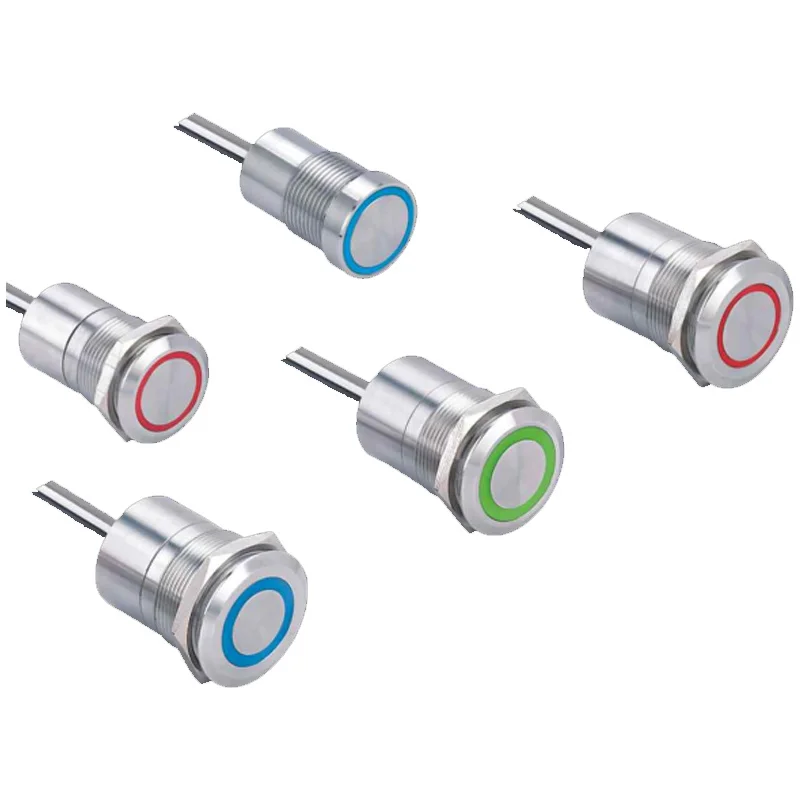

Electric Contacts IP68 Touch Switch Waterproof Button Led Momentary Induction 16/19/22/25/30mm Fix on Off Switches 24v 12v 110v

937246

SKU: 937246 Categories: ,
Report Abuse
Description

Electric Contacts IP68 Touch Switch Waterproof Button Led Momentary Induction 16/19/22/25/30mm Fix on Off Switches 24v 12v 110v

If you want more item, please contact us,we will add the quantity and give you the cheaper price

Red and Green Led button

The button is OFF,the led is Red .
The button is On ,the led is Green .

Specification

If you need other color ,delay time,production , please feel free to contact customer service,we can customize it .

The length of the wire : 30cm
Contact:sterling silver
Material: Stainless steel / Aluminum oxide
Color: Silver / Black
LED color: White Yellow Red Green Blue
Switch Rating: 1A / DC 5-30v
Waterproof Grade: IP68
Operation Type: Momentary Latching Delay

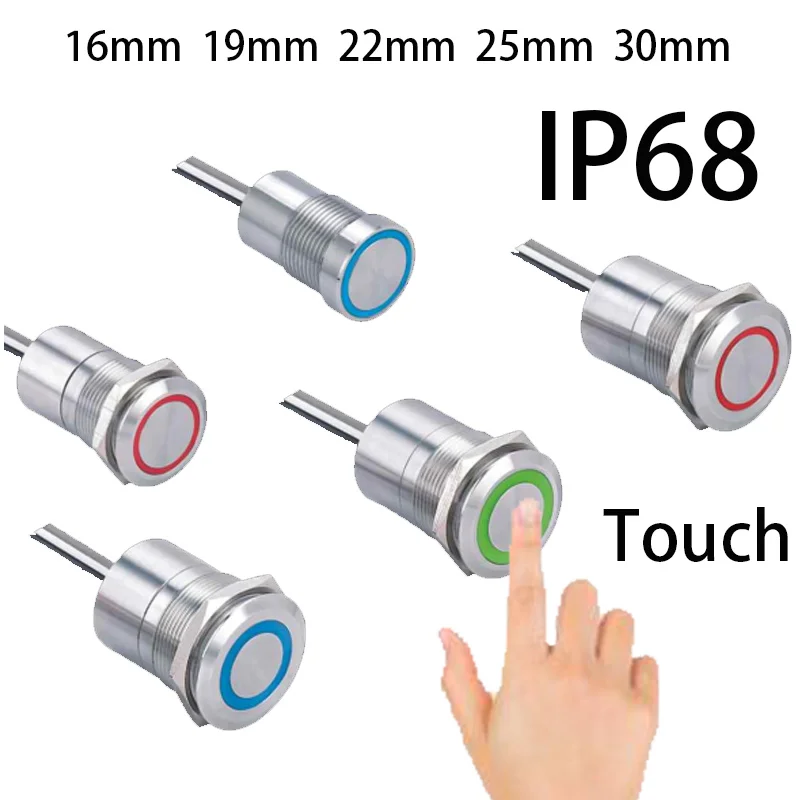

Hole size: 16/19/22/25/30mm

Voltage Selection

5V – 30V : 5V 6V 8V 10V 12V 16V 20V 24V 30V

Operation Type :Momentary

Touch the button , it is ON . Remove the button , it is OFF.

Electric Contacts IP68 Touch Switch Waterproof Button Led Momentary Induction 16/19/22/25/30mm Fix on Off Switches 24v 12v 110v

Operation Type :Latching Fixing

Touch the button , it is ON . Then Remove the button , it is ON . Next Touch the button again ,it is OFF , Then Remove the button , it is OFF.

Electric Contacts IP68 Touch Switch Waterproof Button Led Momentary Induction 16/19/22/25/30mm Fix on Off Switches 24v 12v 110v

Operation Type :Delay 30 seconds

Touch the button , it is ON .During 30s , it is always ON regardless of moving or touching the button。
After 30 seconds ,it is OFF .

Electric Contacts IP68 Touch Switch Waterproof Button Led Momentary Induction 16/19/22/25/30mm Fix on Off Switches 24v 12v 110v

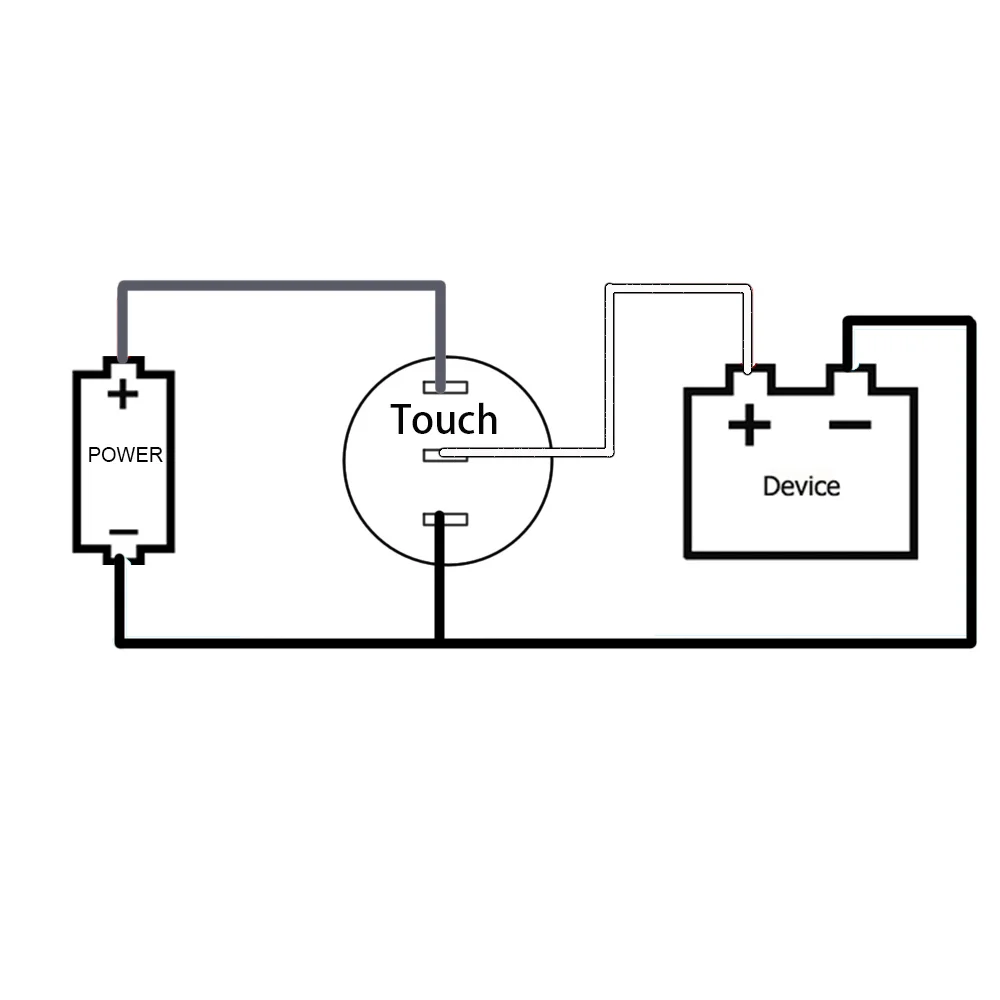

Wiring Diagram

Please notice the wire color

Electric Contacts IP68 Touch Switch Waterproof Button Led Momentary Induction 16/19/22/25/30mm Fix on Off Switches 24v 12v 110v
