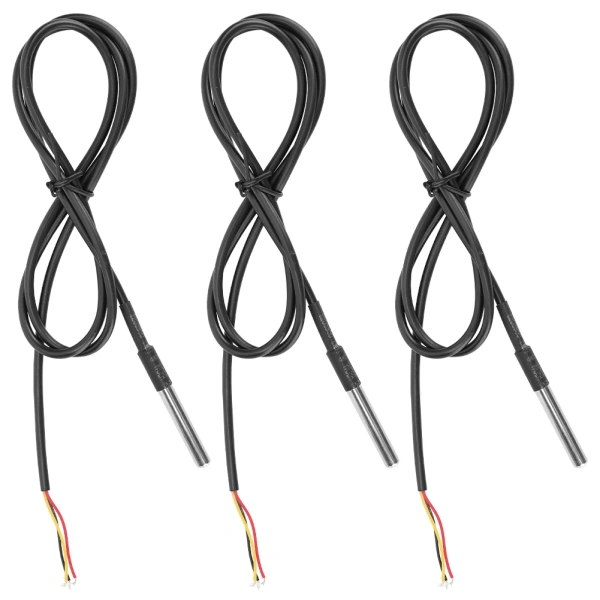

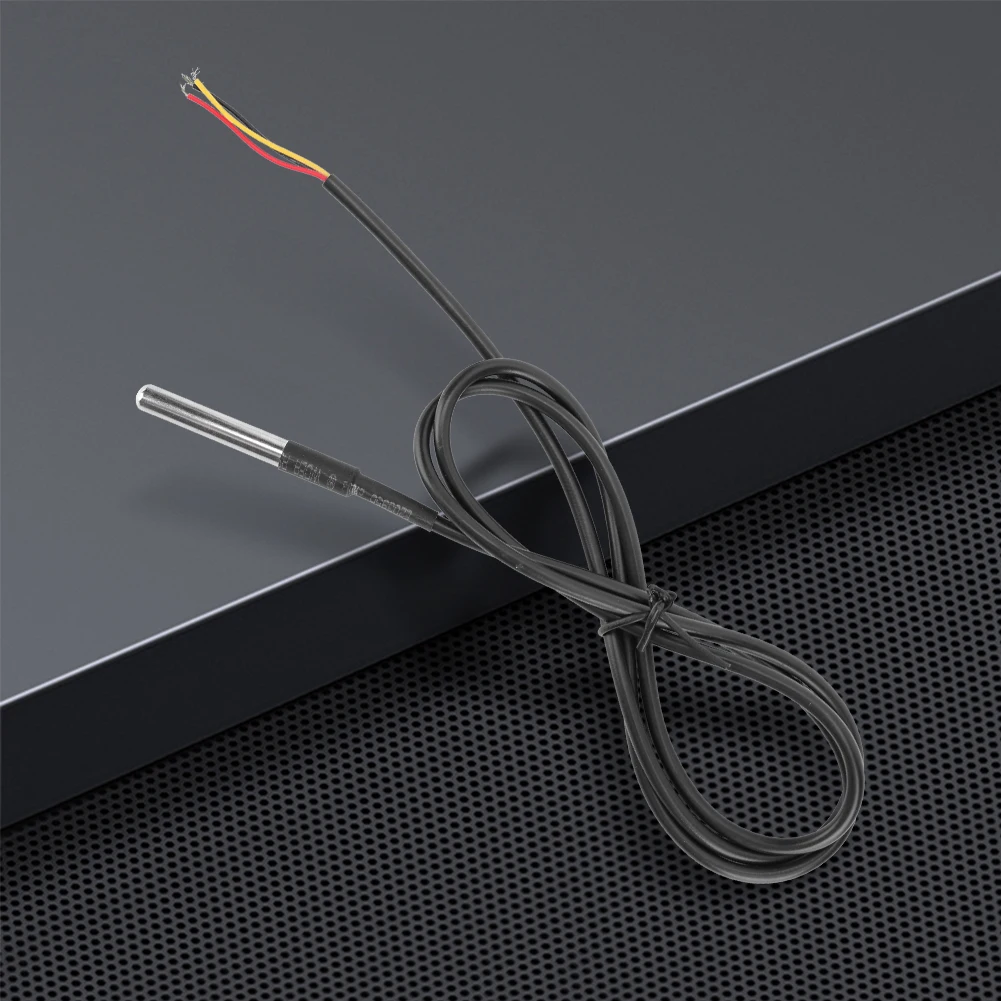

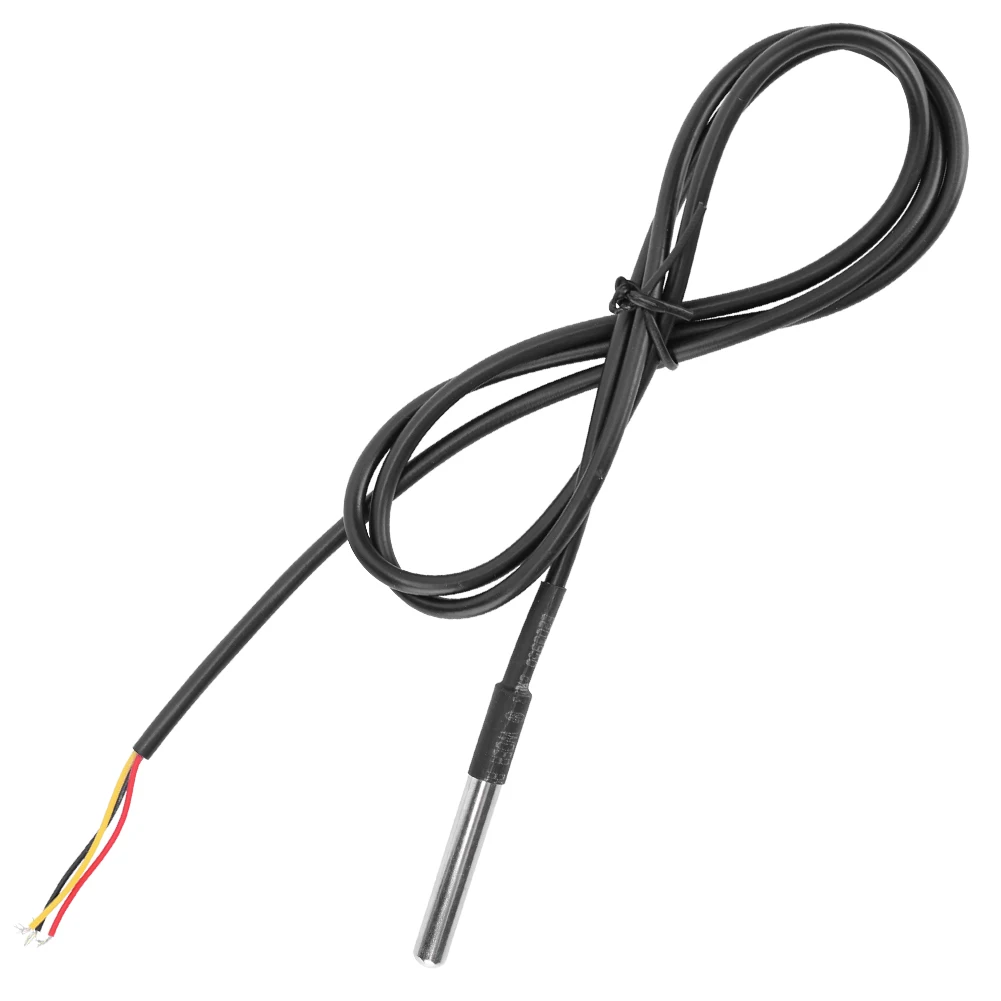

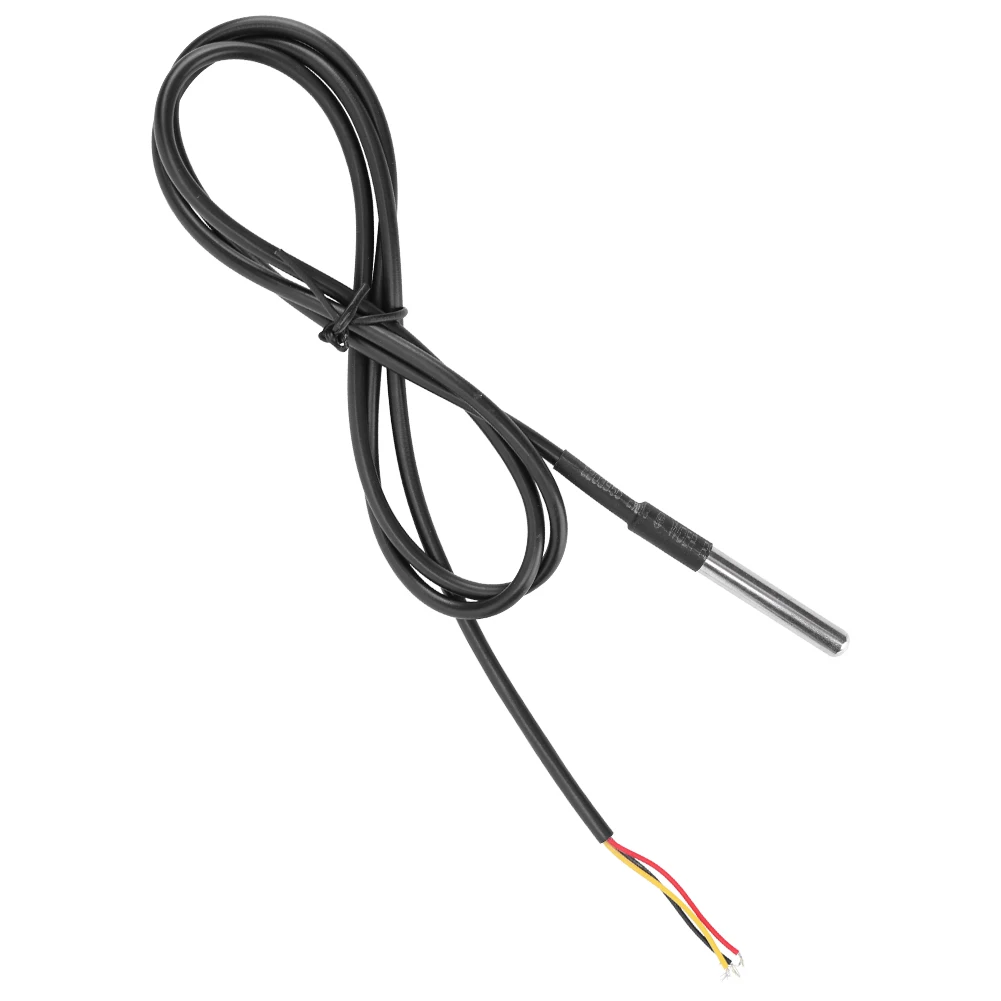

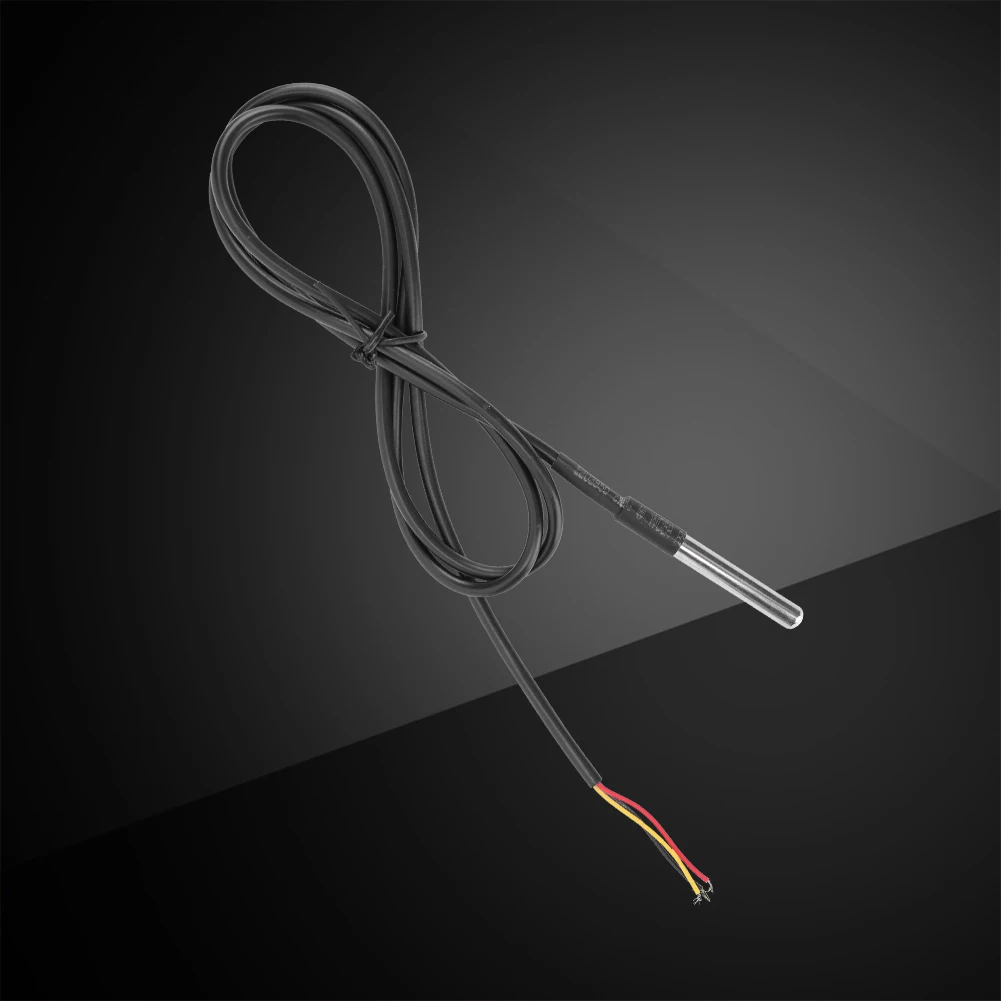

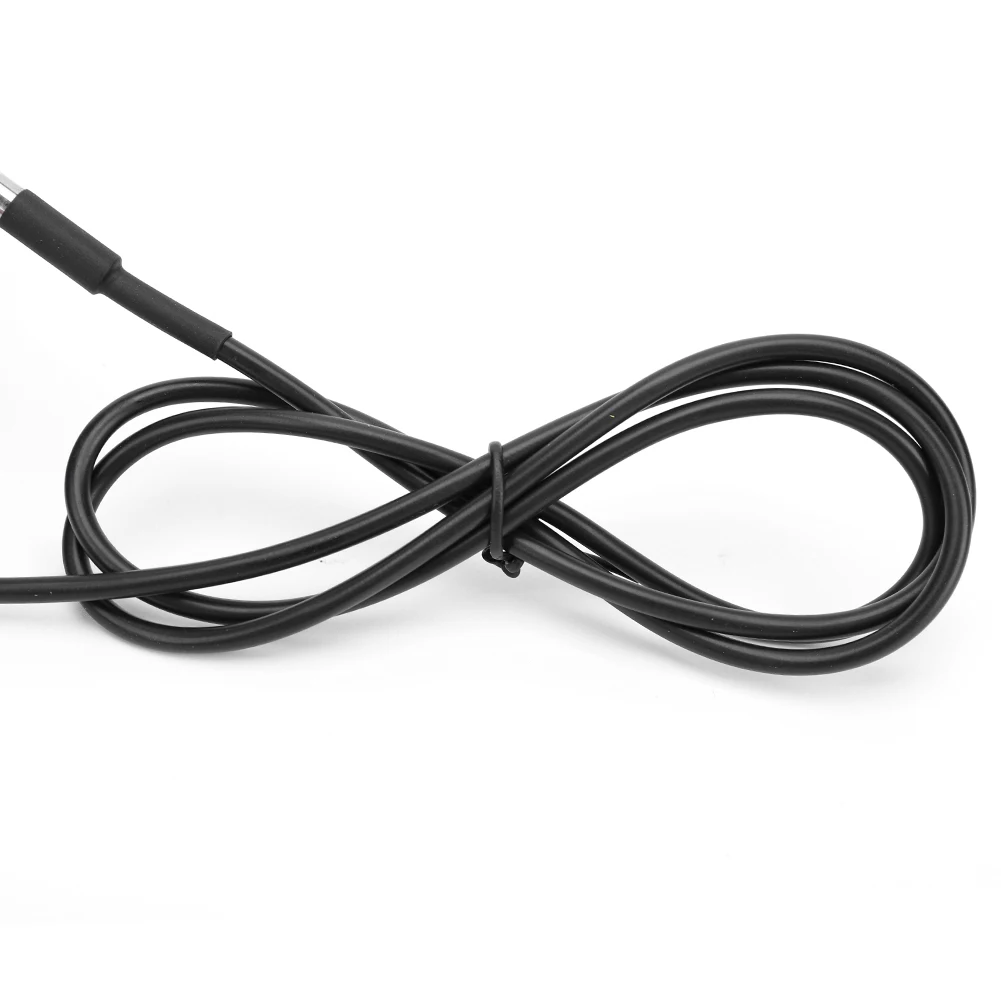

DS18B20 Temperature Sensor Module Probe Stainless Steel Temperature Sensor Probe Waterproof Adjustable Resolution

953579

SKU: 953579 Category:
Report Abuse
Description
DS18B20 Temperature Sensor Module Probe Stainless Steel Temperature Sensor Probe Waterproof Adjustable Resolution

DS18B20 Digital Temperature Sensor Thermal Probe Stainless Steel Digital Temperature Sensor Cable Module Waterproof

Features:

1.High-Quality Stainless Steel Enclosure: The temperature sensor probe  is enclosed in high-quality stainless steel, making it waterproof, moisture-proof, and rust-resistant.
2.Wide Temperature Range: With its wide temperature range from -55℃ to +125℃, this temperature sensor can be used for various applications that require temperature monitoring.
3.Adjustable Resolution: This temperature sensor module probe comes with an adjustable resolution of 9-12 bits, allowing customers to choose their desired level of accuracy.
4.Easy to Use: With its single bus interface, this temperature sensor cable does not require any external components, making it easy to use and install.
5.Multiple Length Options: This temperature sensor module probe comes in multiple length options, including 1m, 2m, and 3m, providing flexibility in usage.

Specification:
Origin: Mainland China
Output: Digital Sensor
Type: Temperature Sensor
Specifications: 1/2/3 meters (optional)
Stainless steel package waterproof DS18b20 temperature probe temperature sensor 18B20 waterproof line
Product parameters:
The probe adopts the original DS18B20 temperature sensor chip
Stainless steel tube packaging, waterproof, moisture-proof and rust-proof
Stainless steel shell (6*50mm), lead length 100cm
Each probe is individually packaged after rigorous testing
3.0V-5.5V power supply
9~12 bit adjustable resolution
Wide temperature range -55℃ to +125℃
Single bus interface with no external components
Output leads: red (VCC), yellow (DATA), black (GND)
Product size: 50*6*5mm

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
