DIP Solid Electrolytic Capacitor 2.5V 6.3V 7.5V 10V 16V 20V 25V 35V 22 100 270 470 220 330 560 680 820 1000 1200 1500uf

377288

SKU: 377288 Categories: ,
Report Abuse
Description

DIP Solid Electrolytic Capacitor 2.5V 6.3V 7.5V 10V 16V 20V 25V 35V 22 100 270 470 220 330 560 680 820 1000 1200 1500uf

  • Hign-concerned Chemical: None
  • Structure: Fixed Capacitor
  • Operating Temperature: 105
  • Rated Voltage: 2.5V 3V 6.3V 7.5V 10V 16V 20V 25V 35V 50V
  • Package Type: Through Hole
  • Type: Aluminum Electrolytic Capacitor
  • Brand Name: NoEnName_Null
  • Origin: Mainland China
  • Series: Plug-in solid electrolytic capacitor
  • Shape: Cylindrical
  • Lead Type: Radial Lead Wire
  • Adjustment Method: Fixed
  • Allowable Deviation: +20%

1. Product Name and Key Selling Points

Title:

  • Solid Electrolytic Capacitor Series
  • Specifications: Voltage range from 2.5V to 35V, capacitance range from 22µF to 2200µF, suitable for various electronic circuits and high-frequency applications.

Feature Image:

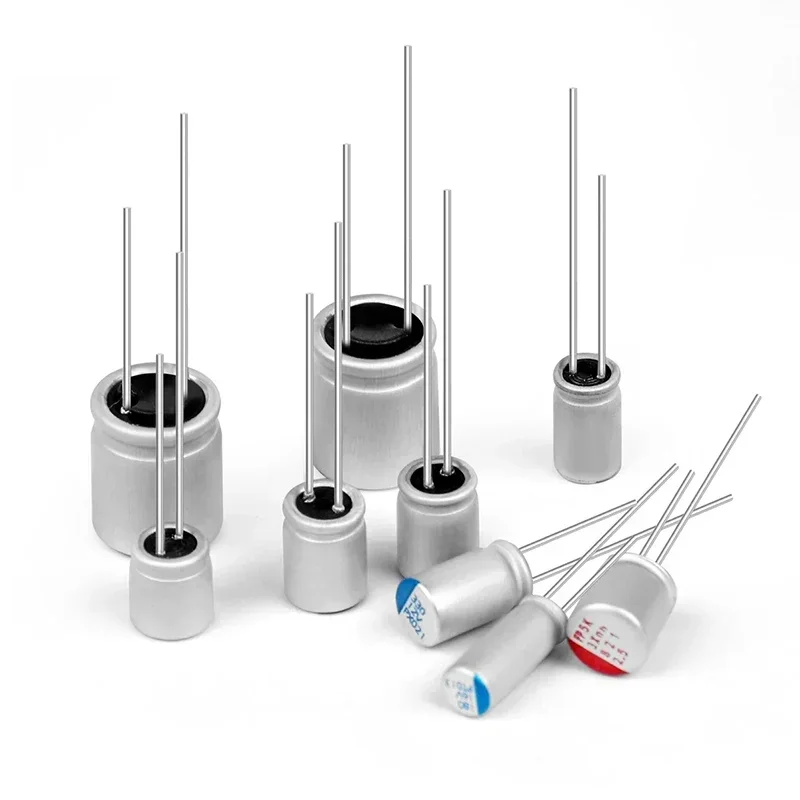

  • Product overview image showing capacitors of different specifications, suitable for various applications.
  • Key Features: High stability, low Equivalent Series Resistance (ESR), long lifespan, suitable for power filtering, voltage stabilization, and noise reduction.

2. Product Features Display

Icons + Descriptions:

  • Low ESR: Reduces power loss in the circuit, improving efficiency.
  • Long Lifespan: High-quality materials ensure stable operation over a long time, suitable for various electronic devices.
  • Quality Assurance: Each product undergoes strict quality checks.
  • Eco-Friendly Material: Complies with RoHS and other environmental standards, safe and reliable.

3. Capacitor Identification Method and Structure Diagram

Lead Type Solid Electrolytic Capacitor
Correct Polarity Identification:

  • Negative Mark: Red or other colored block at the top indicates the negative terminal.
  • Lead Length: The longer lead is positive, and the shorter lead is negative.

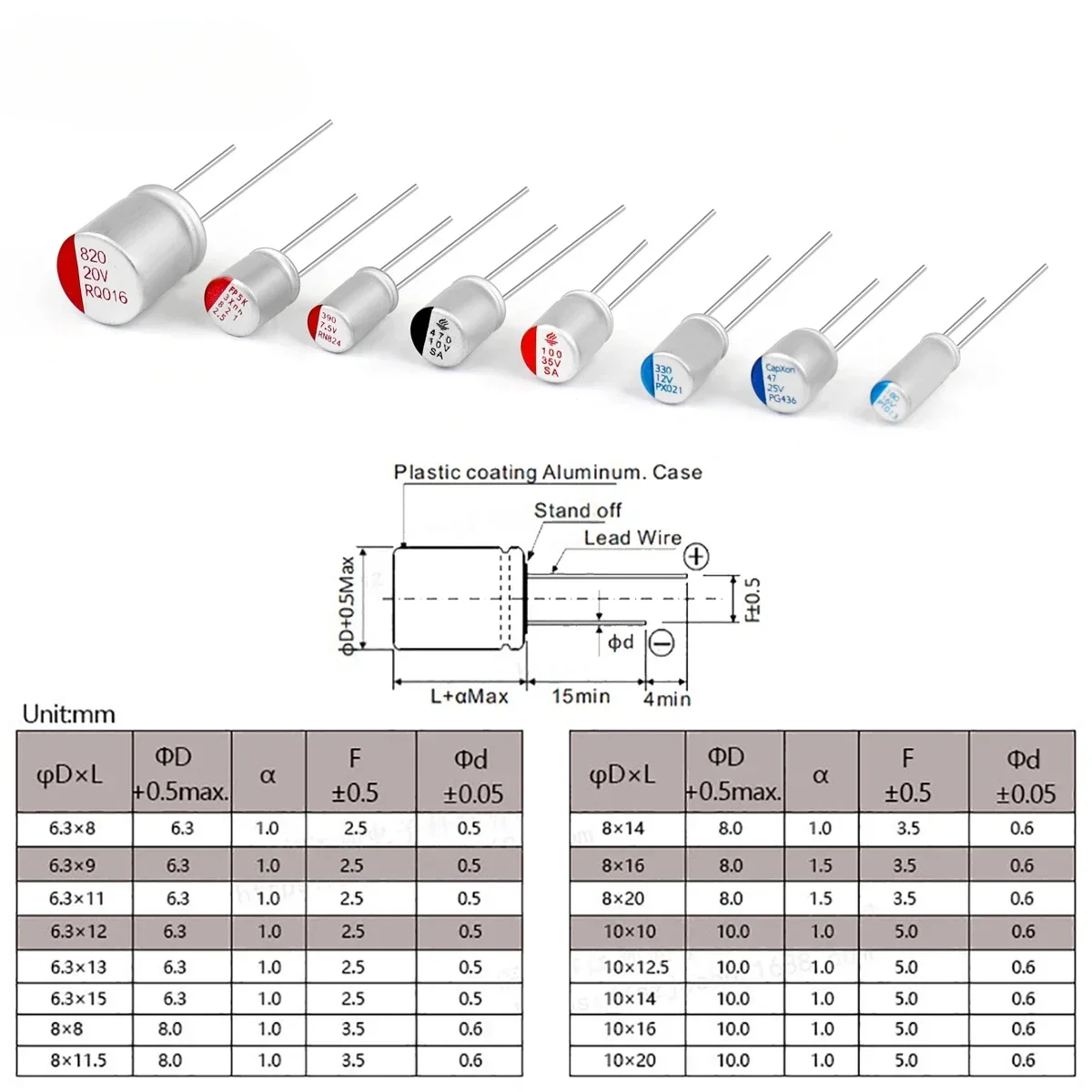

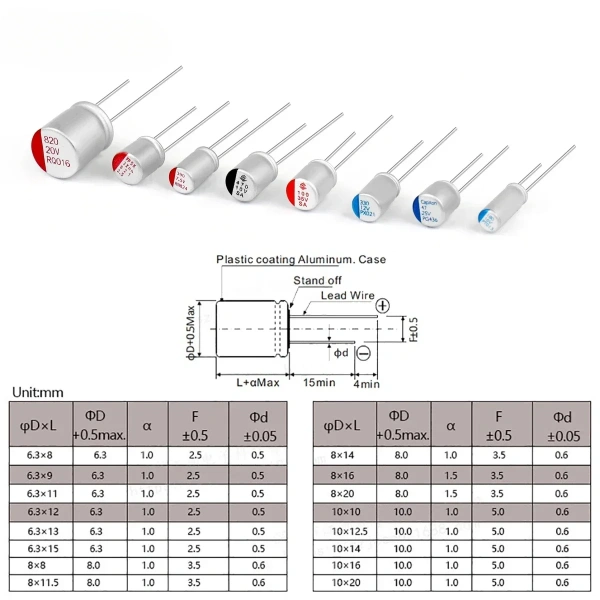

Product Structure Diagram:

  • Show the internal structure of the capacitor, including the anode lead, cathode lead, aluminum case, and other major components to help customers understand the internal design and reliability.

4. Product Specifications and Dimensions

Product Specifications:

  • Below is the complete list of all available models and sizes, helping customers find the specific voltage and capacitance combination:
Voltage (V) Capacitance (µF) Dimensions (Diameter x Height, mm)
2.5V 820 8×8
2.5V 560 5×8
2.5V 1200 6×9
3V 820 6×9
4V 560 6×9
6.3V 150 4×7
6.3V 220 6×6
6.3V 270 5×8
6.3V 330 6×5
6.3V 390 5×8
6.3V 450 6×7
6.3V 470 6×8
6.3V 560 8×8
6.3V 680 8×9
6.3V 820 6×11
6.3V 1000 6×11
6.3V 1500 8×12
6.3V 2200 10×12
6.3V 2500 8×16
10V 270 6.3×8
16V 220 5×6
16V 470 6×8
16V 680 5×8
16V 100 6×6
16V 180 6×8
16V 220 6×9
16V 270 8×8
16V 330 6×8
16V 390 10×12
16V 470 8×12
16V 560 8×11
16V 680 8×12
16V 820 8×12
16V 1000 8×16
16V 1200 8×14
16V 1500 8×16
16V 2200 10×20
25V 22 6×8
25V 33 6×6
25V 100 8×12
25V 150 8×8
25V 220 6×9
25V 470 6×15
25V 680 8×15
25V 820 10×16
25V 1000 10×17
25V 470 6×9
35V 56 5×8
35V 68 8×8
35V 82 8×9
35V 100 8×5
35V 220 8×12
35V 470 10×12
35V 560 10×12
