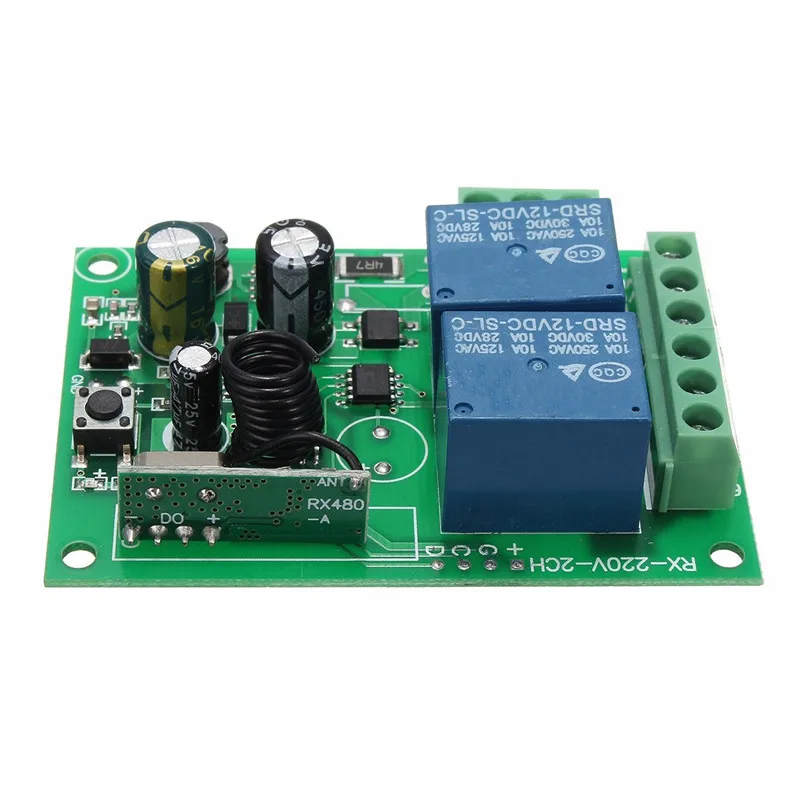

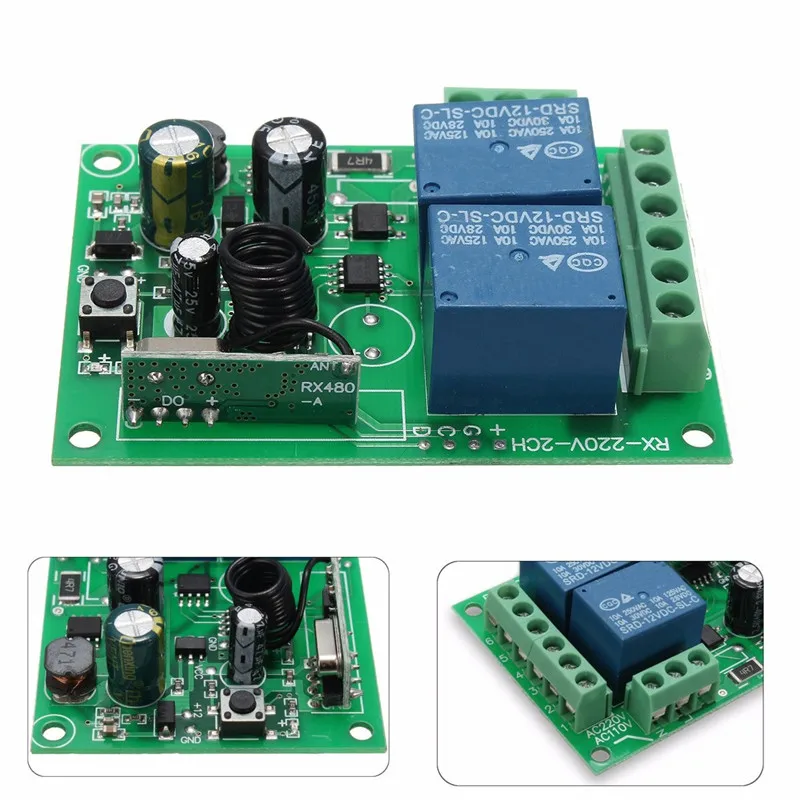

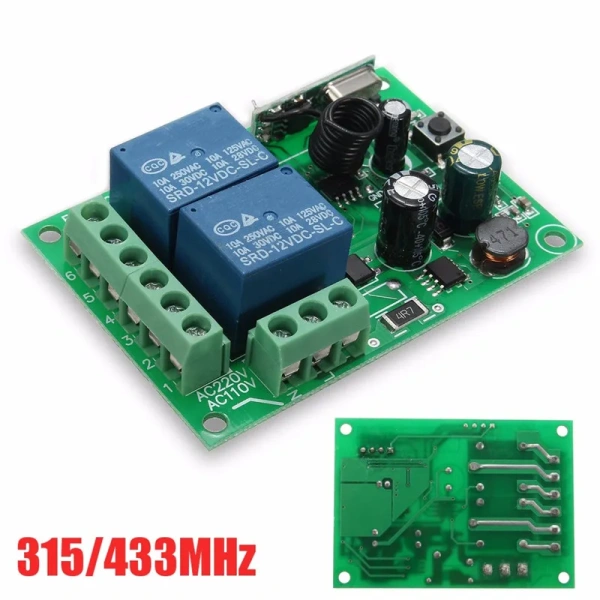

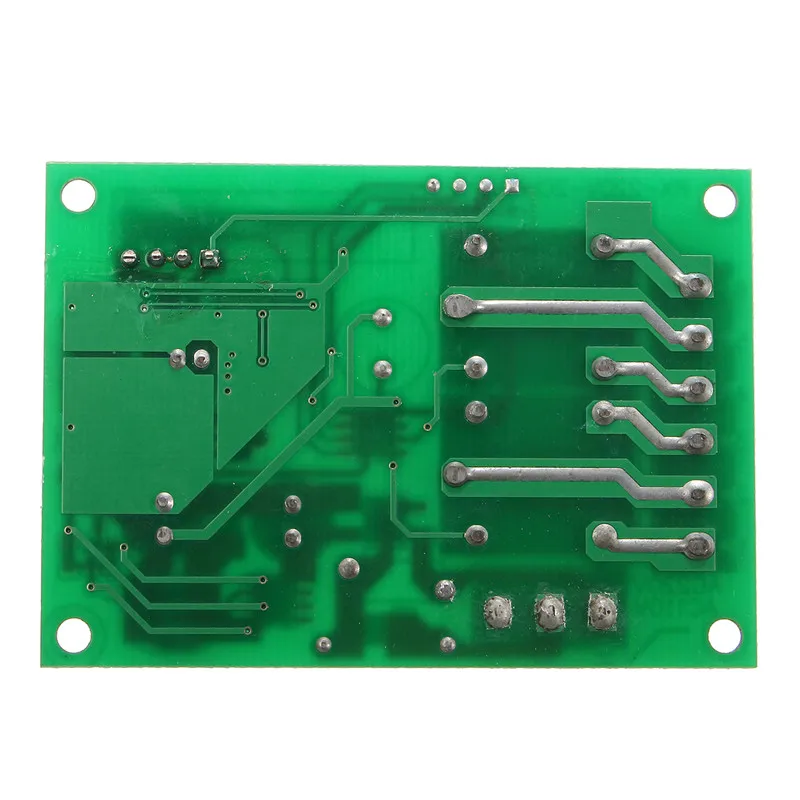

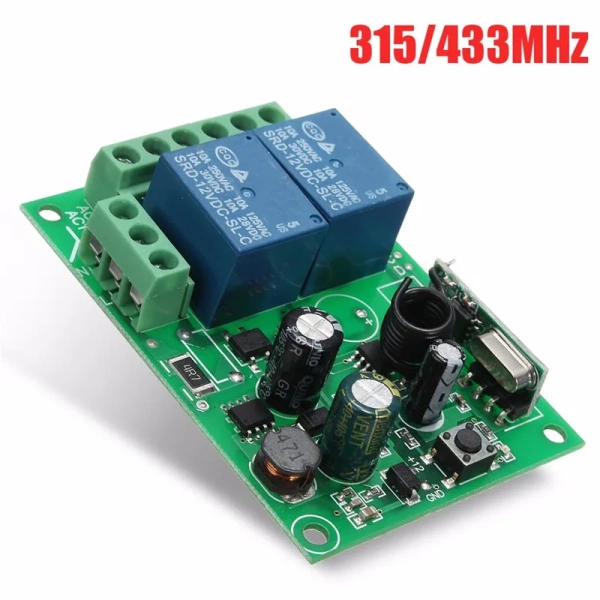

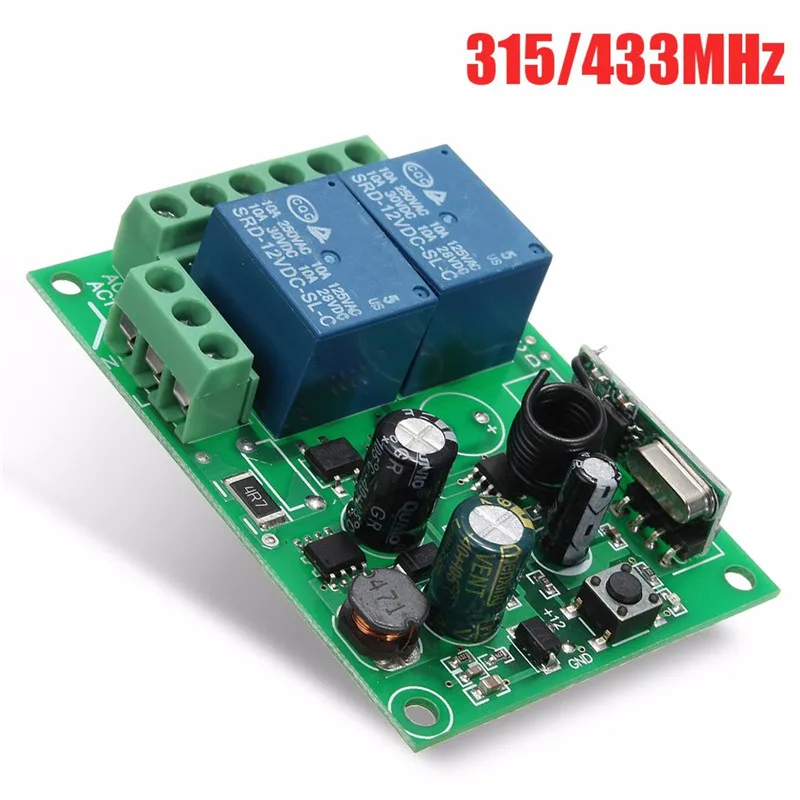

DC 12V 220V 10A 315MHZ 433MHz 2 Channel Wireless Relay RF Remote Control Switch Heterodyne Receiver Smart Home Switch Module

652657

Report Abuse
Description

DC 12V 220V 10A 315MHZ 433MHz 2 Channel Wireless Relay RF Remote Control Switch Heterodyne Receiver Smart Home Switch Module

Specification:

Name:Wireless Relay Switch
1.Input Voltage: AC85V-AC220V
2.RF Frequency: 315/433MHZ
3.RF Working mode:Super heterodyne receiver
4.Receiver Sensitivity: -107dBm
5.Remote Control Distance: >100 meter(In open environment)
6.Decoding Way: MCU Software decoding
7.Can store the number of remote control:32
8.Support remote control type: Fixed code, learning code
9.Channel: 2CH
10.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)

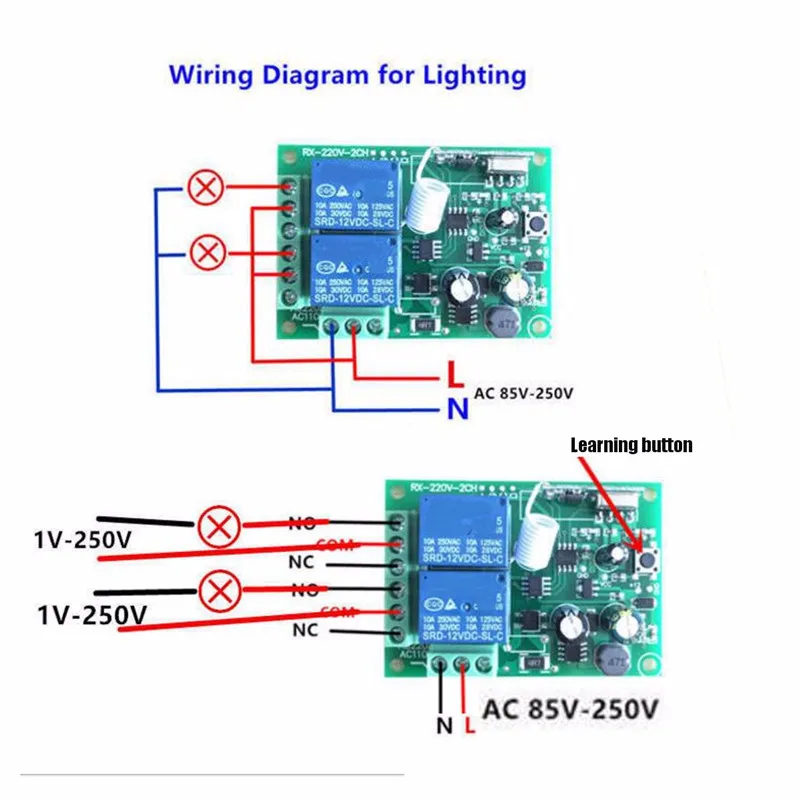

11.Wiring Method:Fixed wiring terminal
12.Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC
13.Dimension:6.9cm*4.85cm*1.7cm
Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Clear & Learn Code:
1. Clear function – After pressing the ”KEY” button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
2, learning function – click the learning button ”KEY”, LED indicator light indicates that the microprocessor to enter the learning state of the code, press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function.
* Flashing 1 time – Jogging function
* Flashing 2 times – Self-locking function
* Blink 3 times – Interlock function
Notice:
When using for the first time, make sure to clear the factory code and clear the remote control code.
Package included:
1 x 220V 2 Channel Wireless Relay Switch
