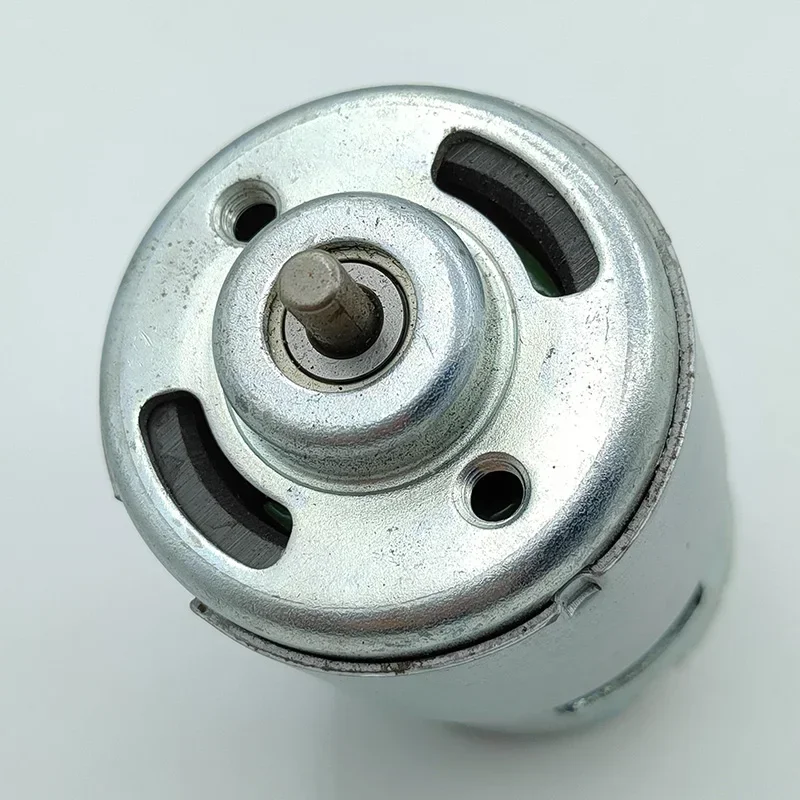

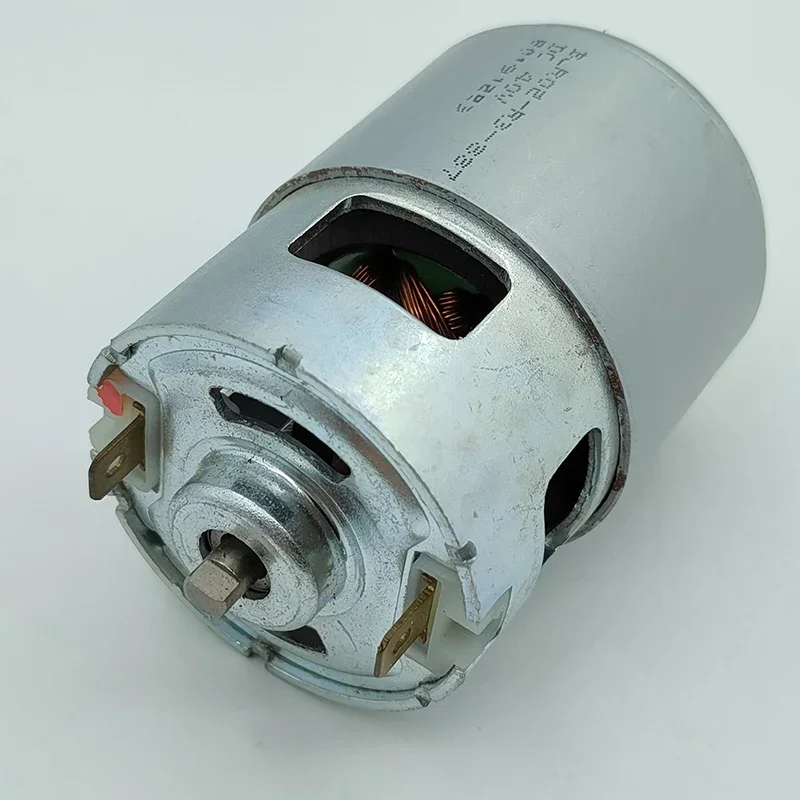

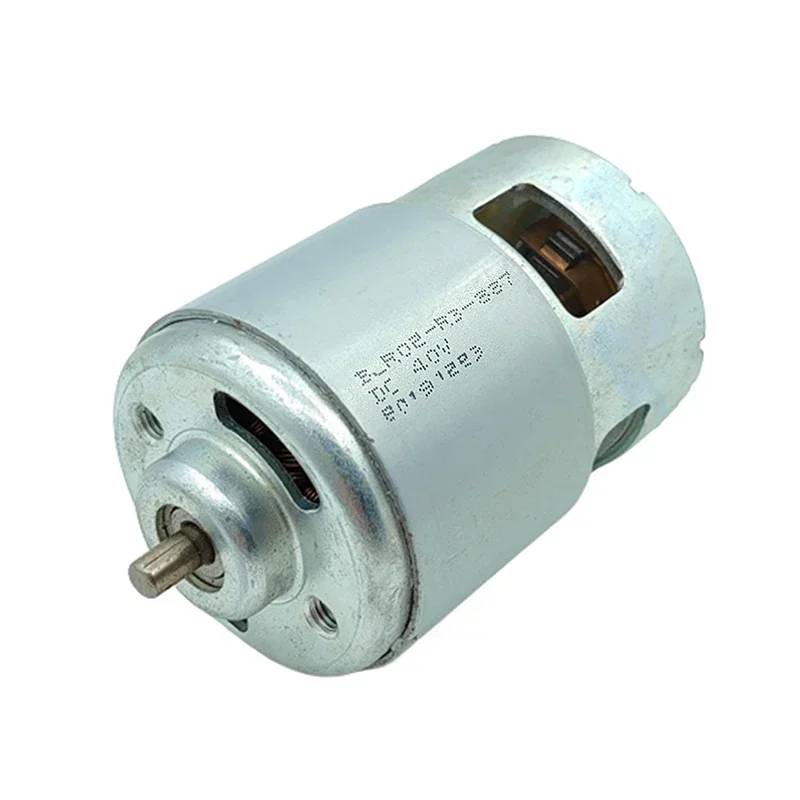

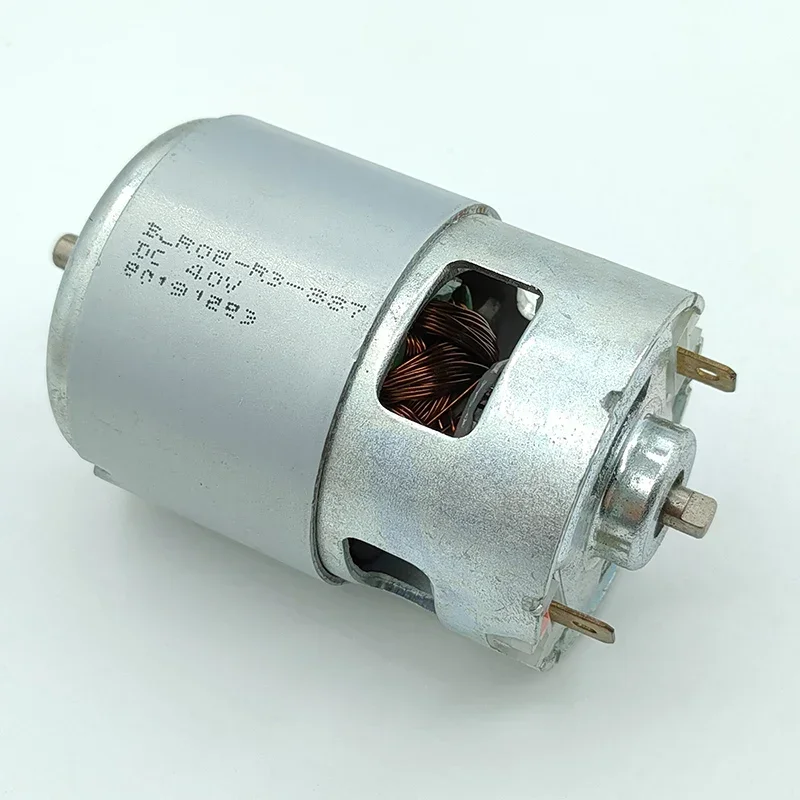

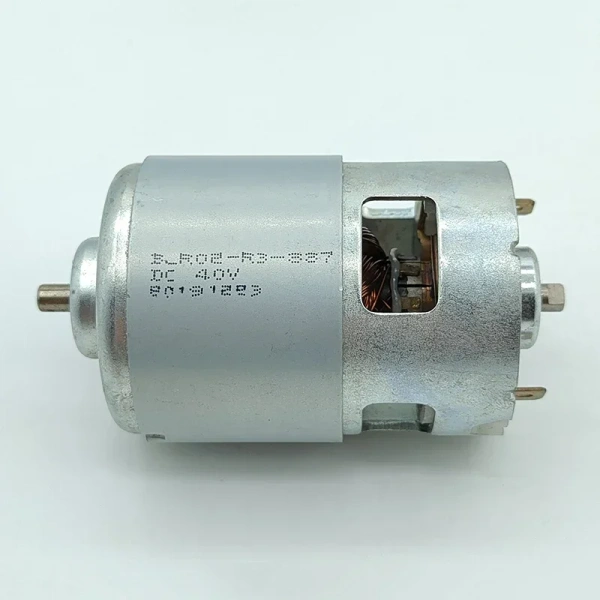

DC 12V 18V 24V 36V RS887 Motor High Speed Large Torque Double Ball Bearing 48mm Motor Chainsaw Cutting Tool Drill Screwdriver

355939
Description
  • Usage: Home Appliance
  • Model Number: RS887
  • Construction: Permanent Magnet
  • Type: Micro Motor
  • Protect Feature: Explosion-proof
  • Commutation: Brush
  • Efficiency: IE 1
  • Origin: Mainland China
  • Certification: ce
  • Motor diameter: 48mm (with cover 50.5mm)
  • Motor height: 67.6mm
  • Output shaft diameter: 5.0mm
  • Weight: 495g
  • Voltage range: DC 12V-40V
  • Speed range: 3260RPM-11000RPM

Specification:

Note: The motor body has some scratches, but it does not affect normal use.The motor do not have cooling fan.

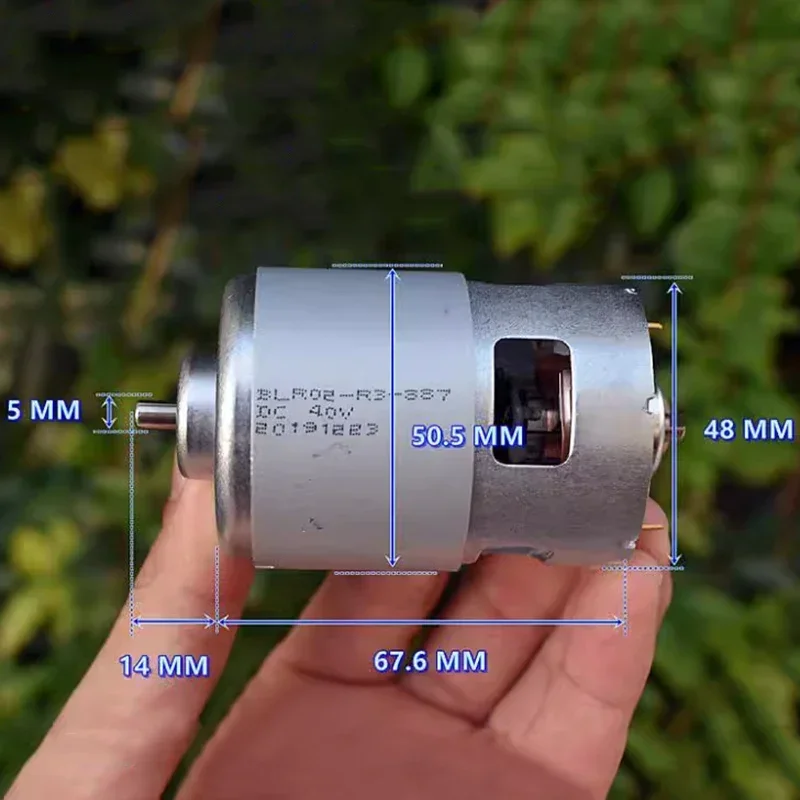

1. Motor body diameter: 48mm (with cover 50.5mm)

2. Motor height: 67.6mm

3. Output shaft diameter: 5.0mm

4. Output shaft length: 7.6mm (include step height 14mm)

5. Screw hole diameter: 4.5mm

6. Screw hole spacing: 32mm

7. Weight: 495g

8. Voltage range: DC 12V-40V

9. Test data:

Voltage: 12.0V No-load current: 0.42A No-load speed: 3260RPM

Voltage: 24.0V No-load current: 0.48A No-load speed: 6600RPM

Voltage: 36.0V No-load current: 0.54A No-load speed: 10000RPM

Voltage: 40.0V No-load current: 0.60A No-load speed: 11000RPM

10.Tips: The rated voltage of this motor is DC40V. If it is pressurized to DC40V, its speed is a little higher than that                 of DC36V, and its power and torque are also stronger than that of DC36V.

=========================
