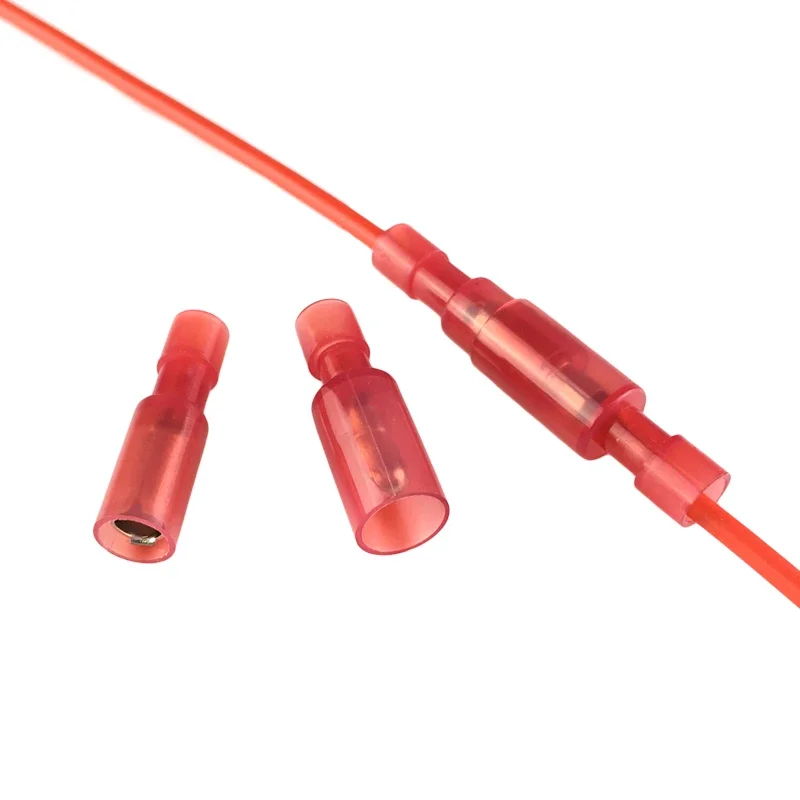

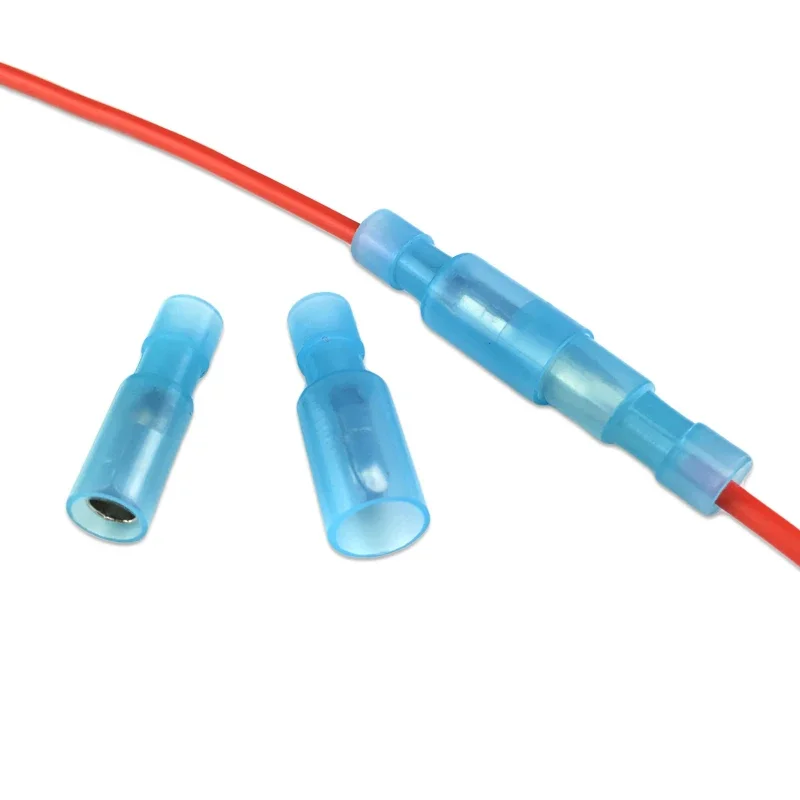

Bullet Terminals Crimp Connector Elelctric Terminals for Wire Terminal Butt Splice Electrical Cable Conector

736184
SKU: 736184 Categories: ,
Description

If you want more item, please contact us,we will add the quantity and give you the cheaper price

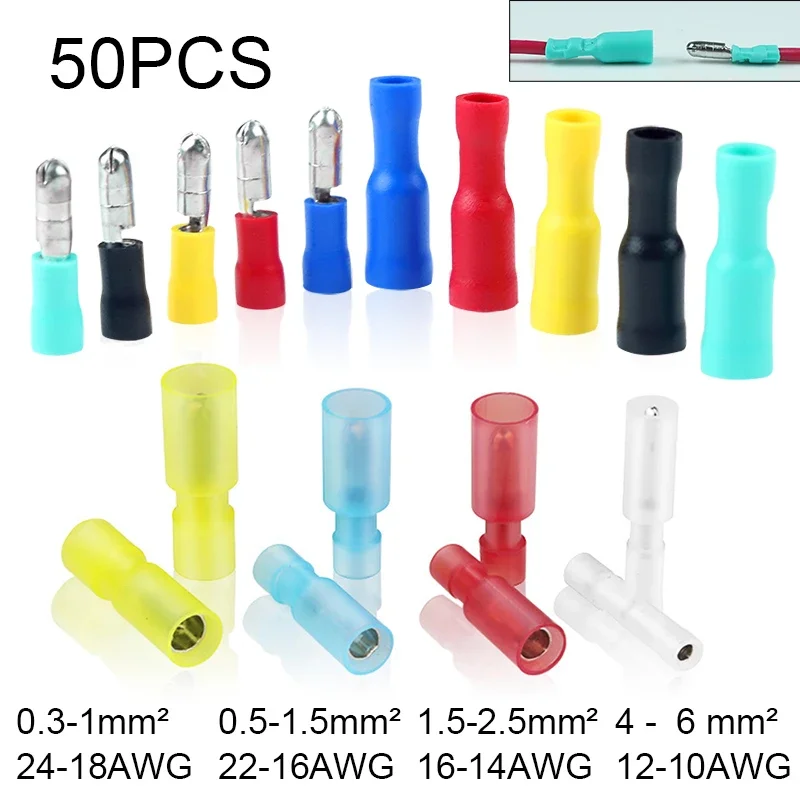

Size Selection

Cross-section
24-18 AWG Wire : 0.3-1.0mm²
22-16 AWG Wire : 0.5-1.5mm²
16-14 AWG Wire : 1.5-2.5mm²
12-10 AWG Wire : 4.0-6.0mm²

PVC Specification

Material: Brass, PVC(Poly Vinyl Chloride)
Surface Finishing: Tin-plating
Sleeve Color: Red, Blue, Green, Black, Yellow ,Multicolor (contains 5 colors, on average)
The color of 12-10 AWG size is only yellow.
22-16 AWG Max. Current: 10A
16-14 AWG Max. Current: 15A
12-10 AWG Max. Current: 24A

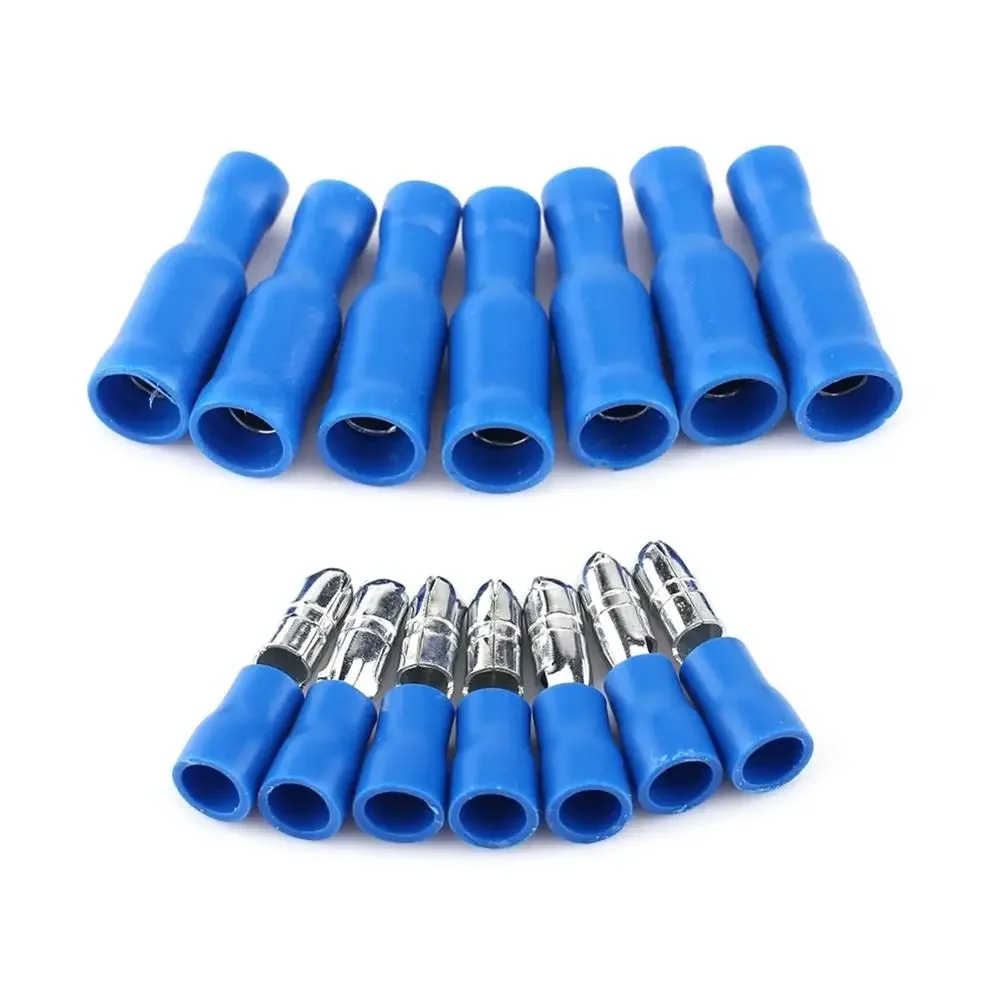

25 pairs Package Includes:
25 x Male Terminals
25x Female Terminals

Nylon Specification

Material: Brass, Nylon
Surface Finishing: Tin-plating
The color of 24-18 AWG size : white
The color of 22-16 AWG size : red.
The color of 16-14 AWG size : blue.
The color of 12-10 AWG size : yellow.
24-18 AWG Max. Current: 9A
22-16 AWG Max. Current: 10A
16-14 AWG Max. Current: 15A
12-10 AWG Max. Current: 24A
25 pairs Package Includes:
25 x Male Terminals
25x Female Terminals

Product Advantage

Terminal surface is plated with tin which ensures good conductivity and corrosion resistance.
Insulated sleeves would provide support for the wire in order to avoid bend when crimping.
Suitable for the connection in power cable with electrical equipment.
Used widely in machinery, electric power equipment, home appliance, computers or automobiles.

Bullet Terminals Crimp Connector Elelctric Terminals for Wire Terminal Butt Splice Electrical Cable Conector

Application Method

Application Method

1.Strip the wire
2.Insert wire into terminal
3.Crimp the terminal with wire pliers
4.Connect male and female terminals
