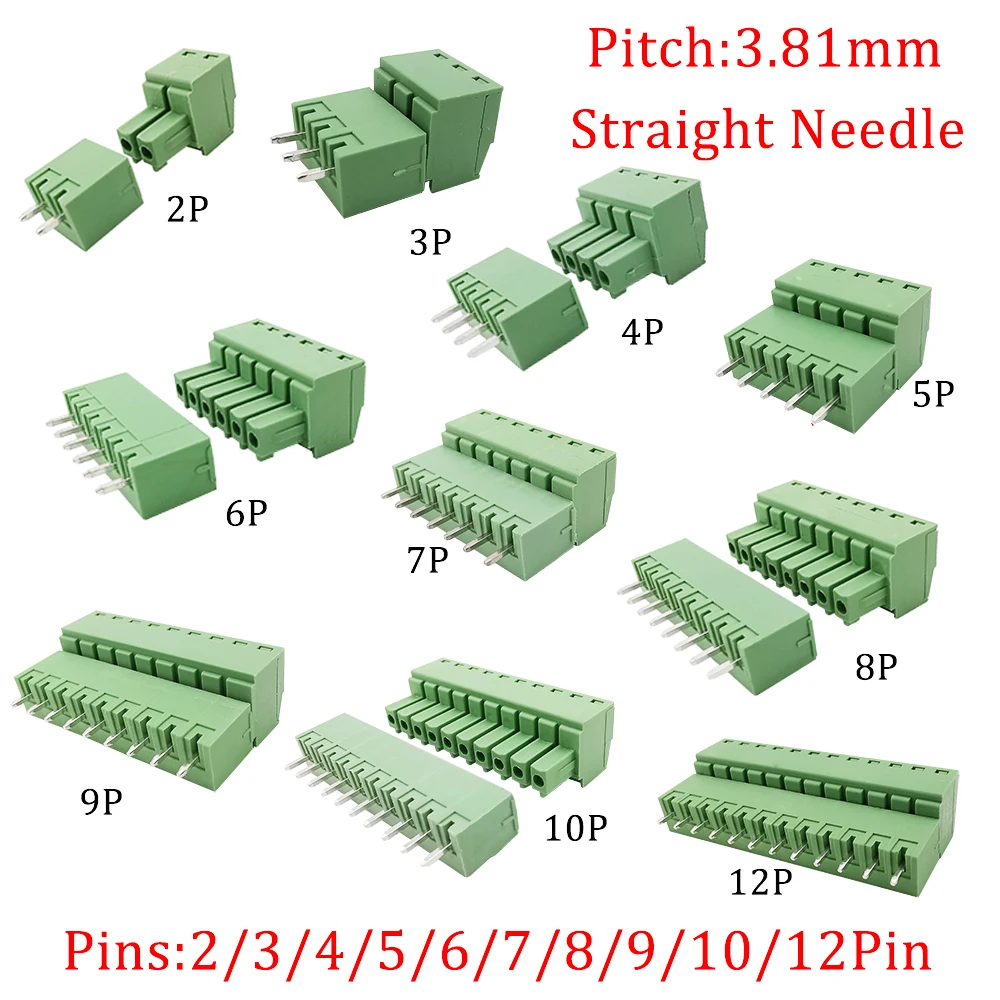

3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket

384354
SKU: 384354 Categories: ,
Description
  • Model Number: 15EDG 3.81mm KF2EDG PCB Screw Terminal Block
  • Origin: Mainland China
  • Certification: none

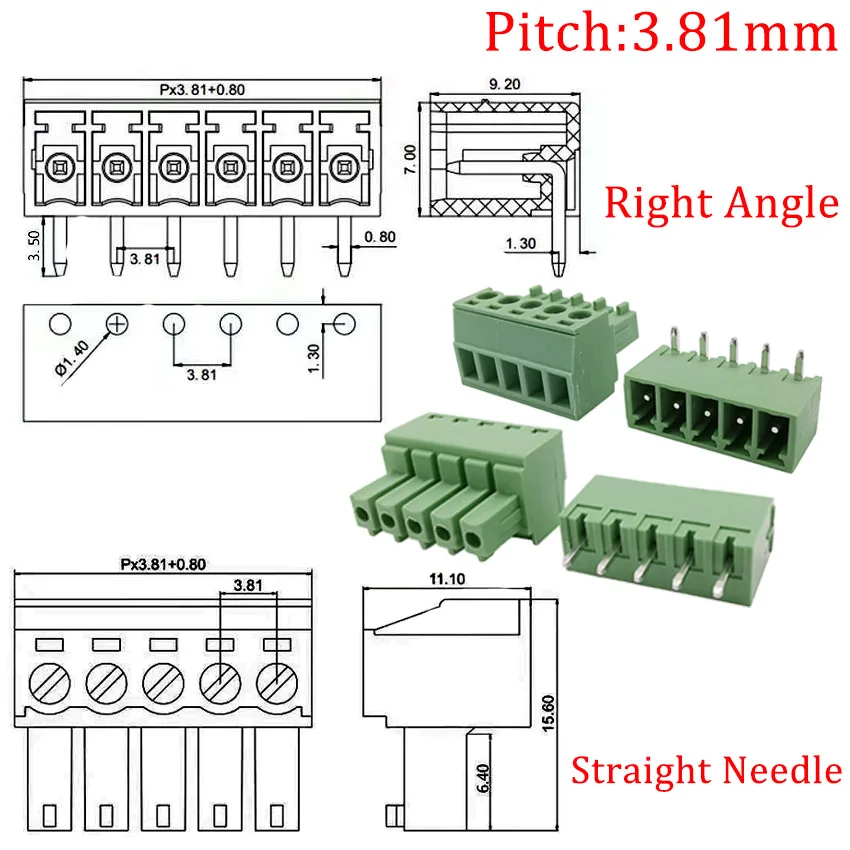

  • Pitch: 3.81mm

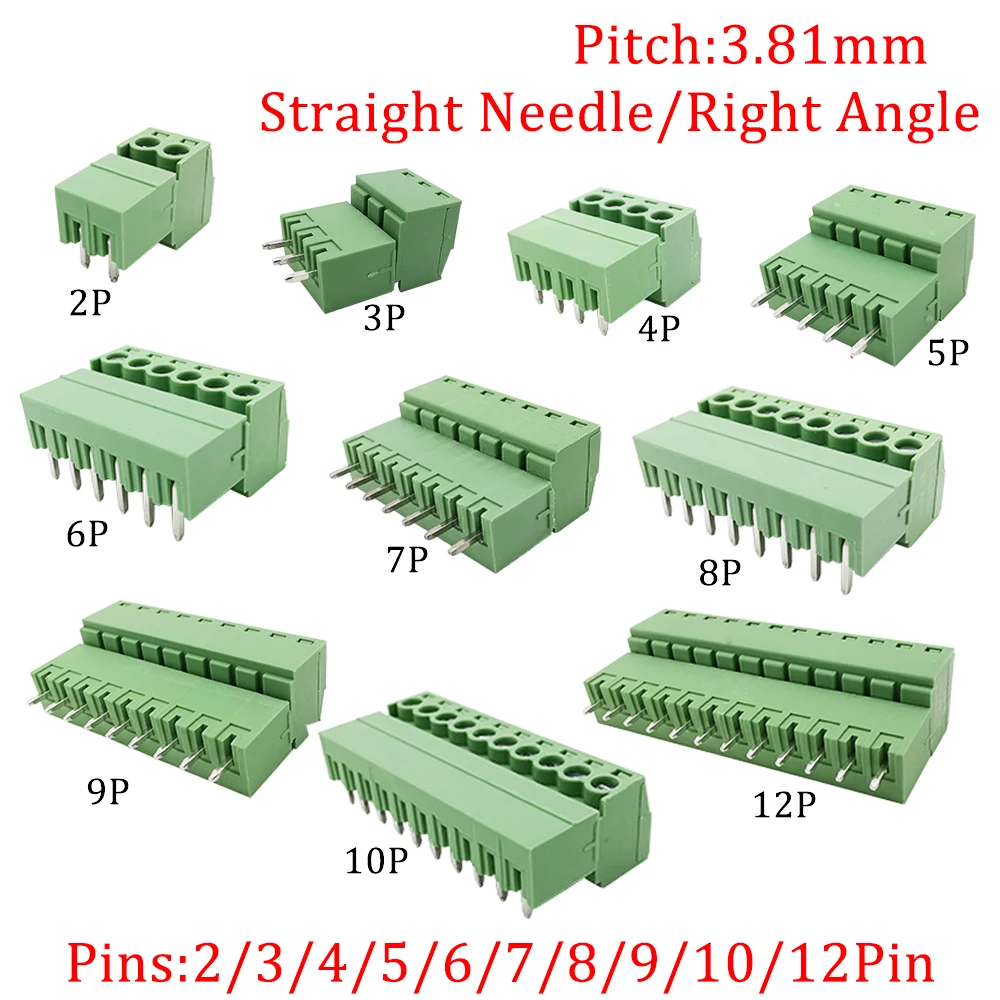

  • Pin: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin
  • Screw: M2, Steel. Zinc plated
  • Contact: Phosphor bronze Ni plated
  • Wire cage: Brass, Ni plated
  • Housing: PA66 UL94V-0
  • Rated voltage: 125V
  • Rated current: 8A
  • Wire range: 28-16A WG
  • Temperature range: -40C-+105C
  • Torque: 0.2 Nm
  • Strip length: 7mm

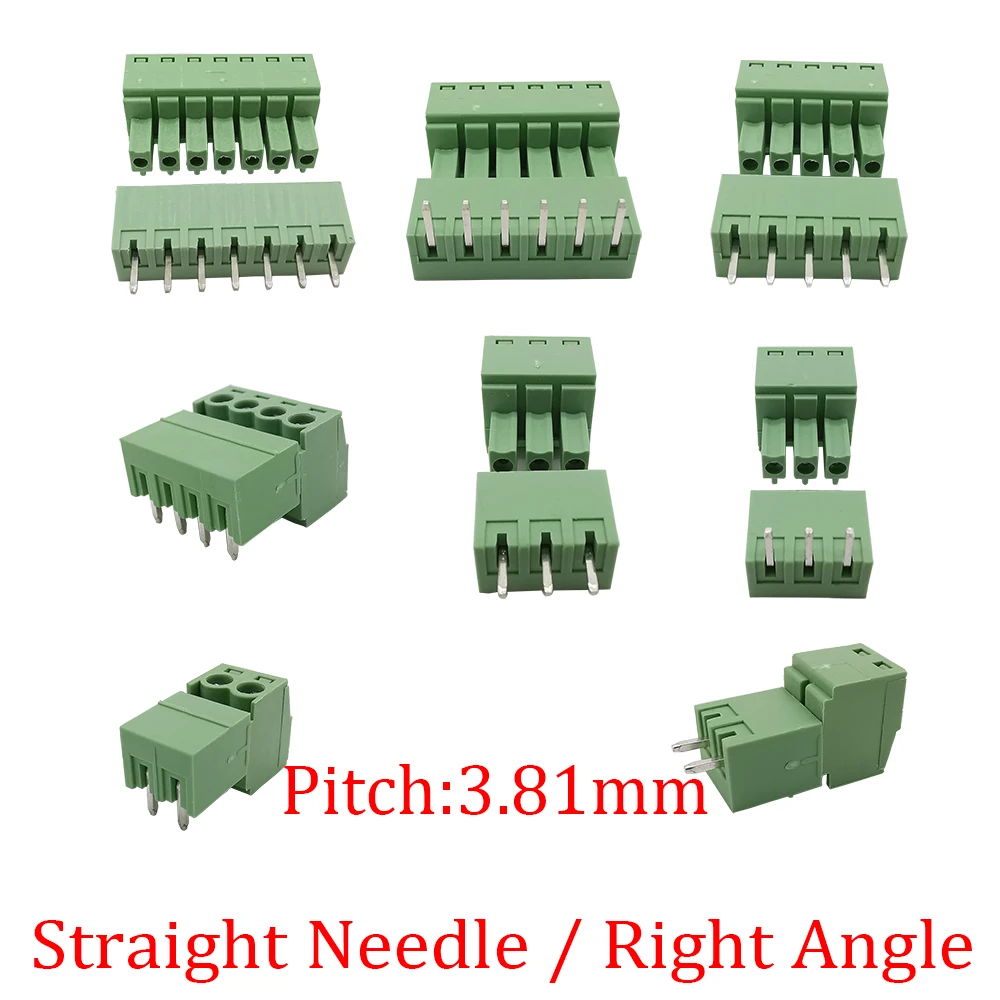

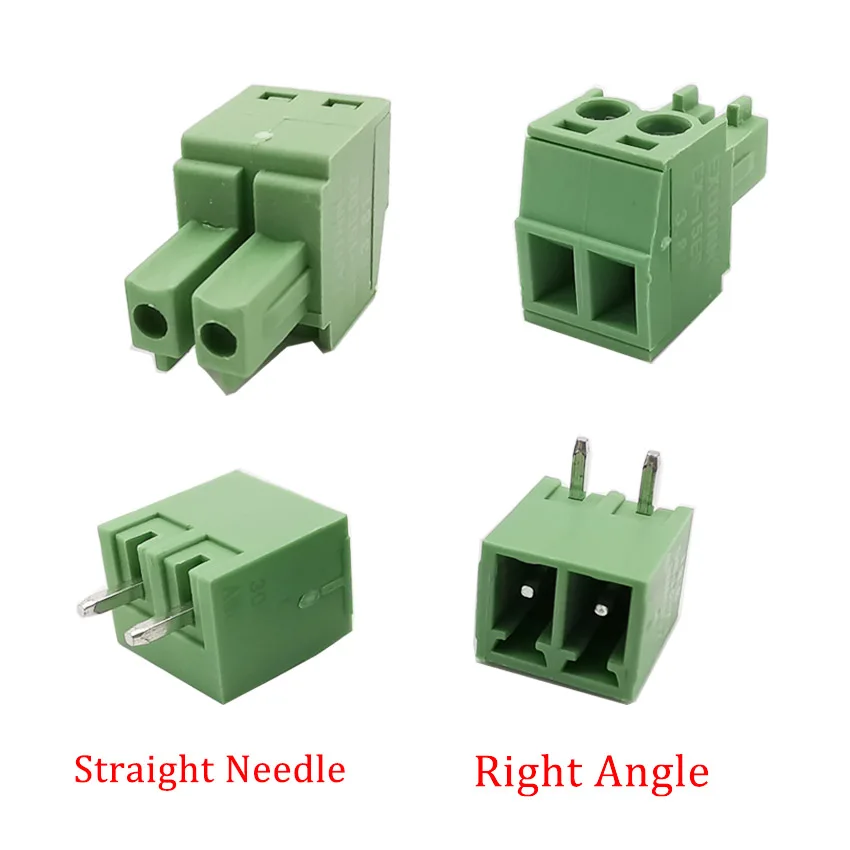

  • Style: Straight Needle/Right Angle Header Socket
  • Type: Splice
  • Feature: 15EDGK 3.81mm Straight Needle PCB Screw Terminal

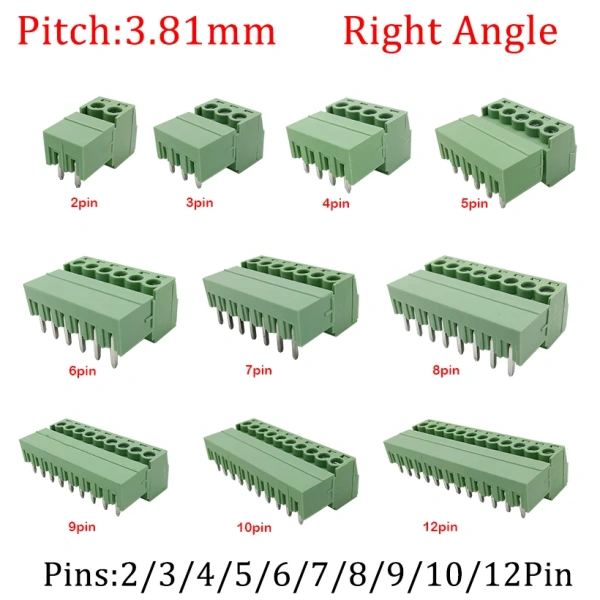

  • Feature 1: KF2EDG 3.81mm Right Angle Header Socket
  • Feature 2: PCB Screw Terminal Curved needle seat
  • Feature 3: Plug in PCB terminal Block

Features:

Name:KF2EDG 3.81mm 2-12 PIN PCB Screw Terminal
Pitch: 3.81mm

Style:Straight Needle/Right Angle Header Socket
Pin: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin
Screw: M2, Steel. Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass, Ni plated
Housing: PA66 UL94V-0
Rated voltage: 125V
Rated current. 8A
Wire range: 28-16AWG



3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket

3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket3.81mm 15EDG 2-12Pin PCB Screw Terminal Block Male Female Connector 2EDG Straight Needle/Right Angle Plug-in Header Socket
