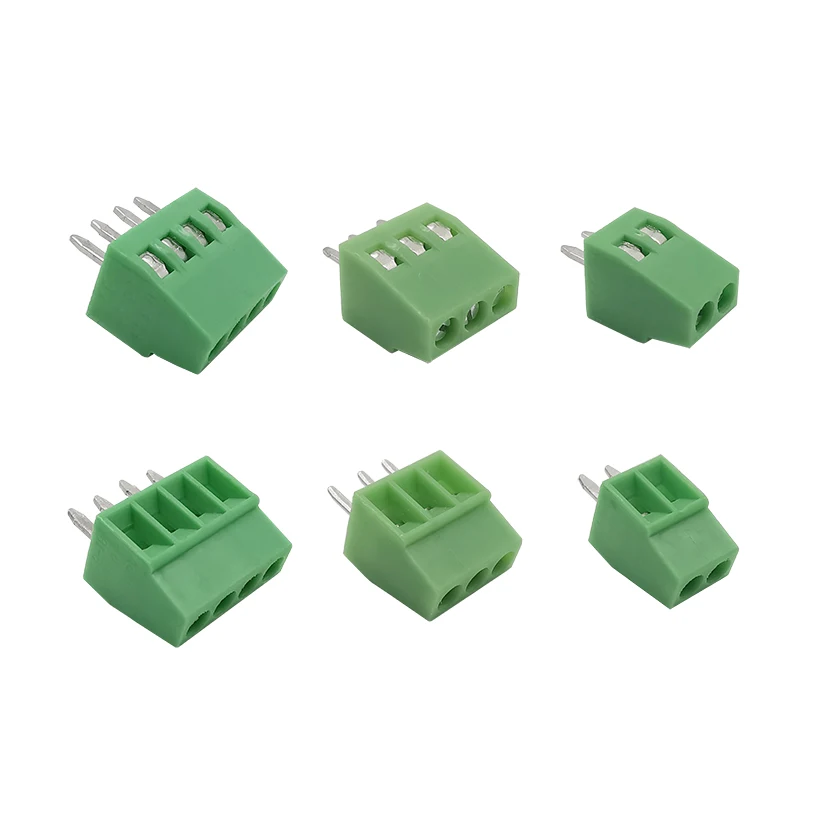

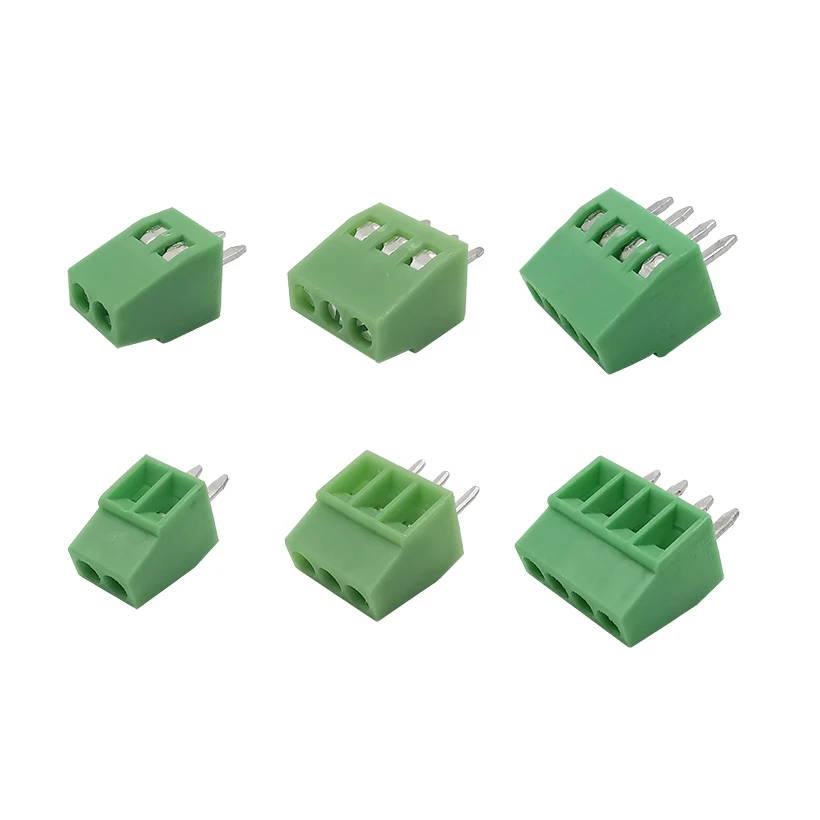

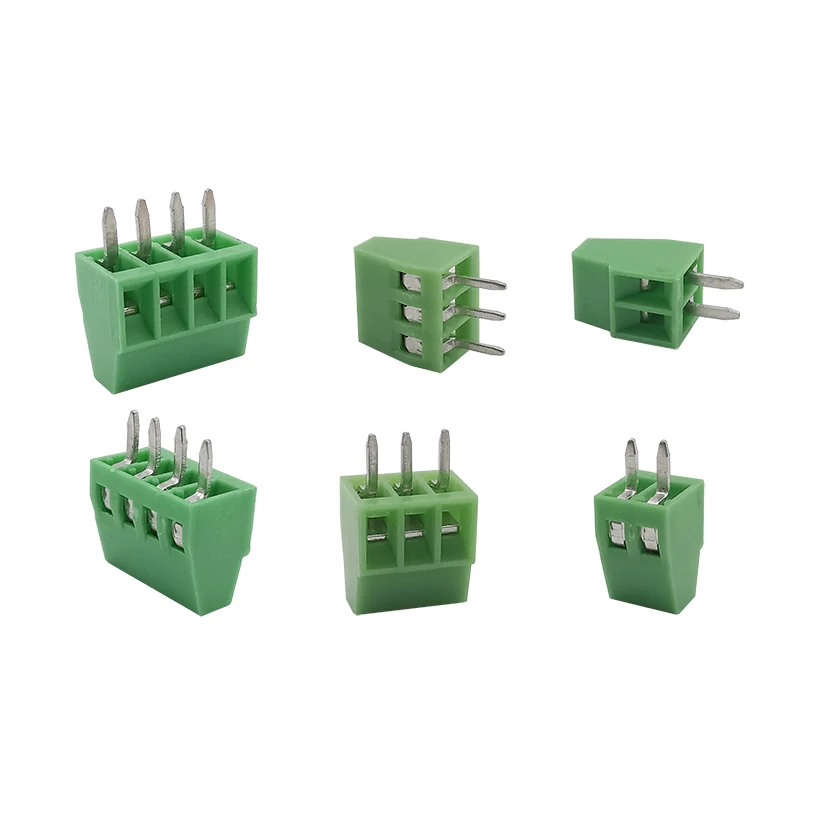

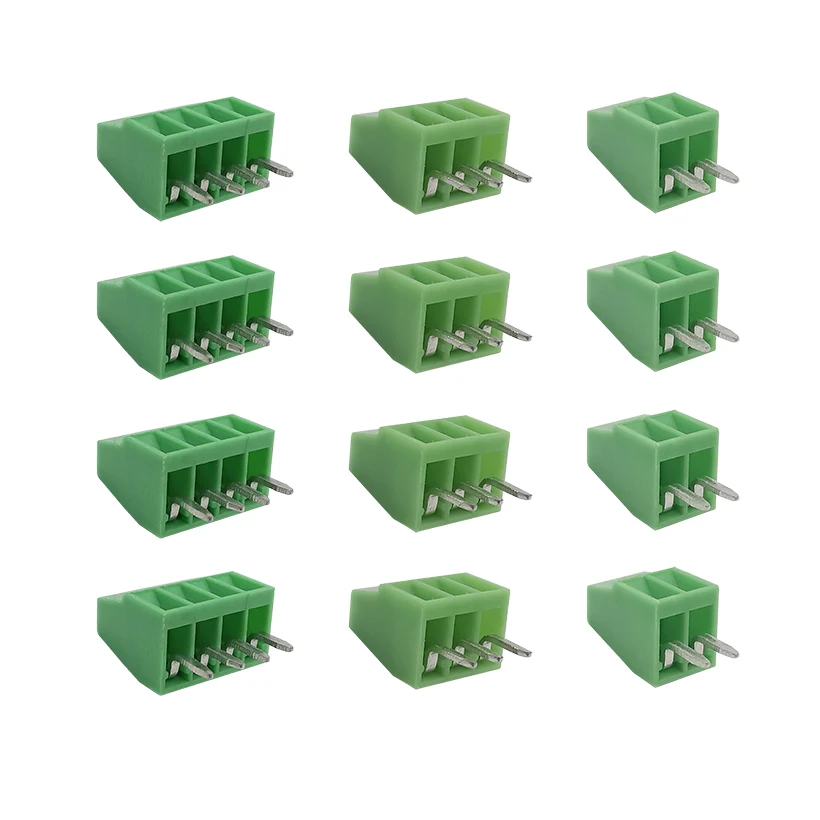

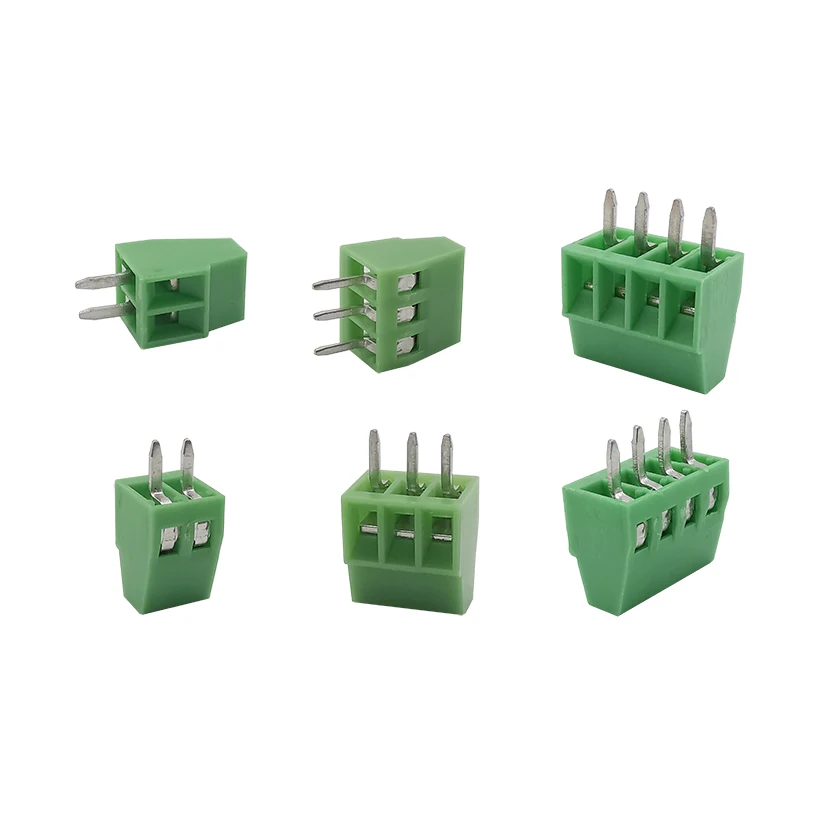

2.54mm Pitch KF120 2P 3P 4P PCB Screw Terminal Block Connector Straight Pin Terminal Adapter

529791
SKU: 529791 Categories: ,
Description
  • Model Number: 2.54mm Pitch PCB Screw Terminal Block Connector
  • Origin: Mainland China
  • Certification: none
  • Product Name: Terminal Blocks Connector
  • Type: 2/3/4 Pin
  • Material: Plastic,Metal
  • Screws: M1.6, Steel, Ni plated
  • Pin header: Brass, Tin plated
  • Wire cage: Brass, Tin plated
  • Housing: PA66, UL94V-0
  • Rated Voltage: 150V
  • Rated Current: 6A
  • Wire Range: 24-12 AWG
  • Temp Range: -40C-105C
  • Pitch: 2.54mm
  • Feature 1: Screw Terminal
  • Feature 2: Terminal Block Connector
  • Feature 3: PCB Screw Terminal Block

Product description
Pattern Name:2.54mm 2Pin,3Pin,4Pin
10pcs/lot E-Simpo 2.54mm PCB Screw Terminal Block, 2.54mm 150V6A CE Rohs UL
Pictch 2.54mm
Rated Voltage 150V AC, Rated Current: 6A
Wire Range: 24-12AWG

2.54mm Pitch  KF120  2P 3P 4P PCB Screw Terminal Block Connector Straight Pin Terminal Adapter2.54mm Pitch  KF120  2P 3P 4P PCB Screw Terminal Block Connector Straight Pin Terminal Adapter2.54mm Pitch  KF120  2P 3P 4P PCB Screw Terminal Block Connector Straight Pin Terminal Adapter2.54mm Pitch  KF120  2P 3P 4P PCB Screw Terminal Block Connector Straight Pin Terminal Adapter2.54mm Pitch  KF120  2P 3P 4P PCB Screw Terminal Block Connector Straight Pin Terminal Adapter
