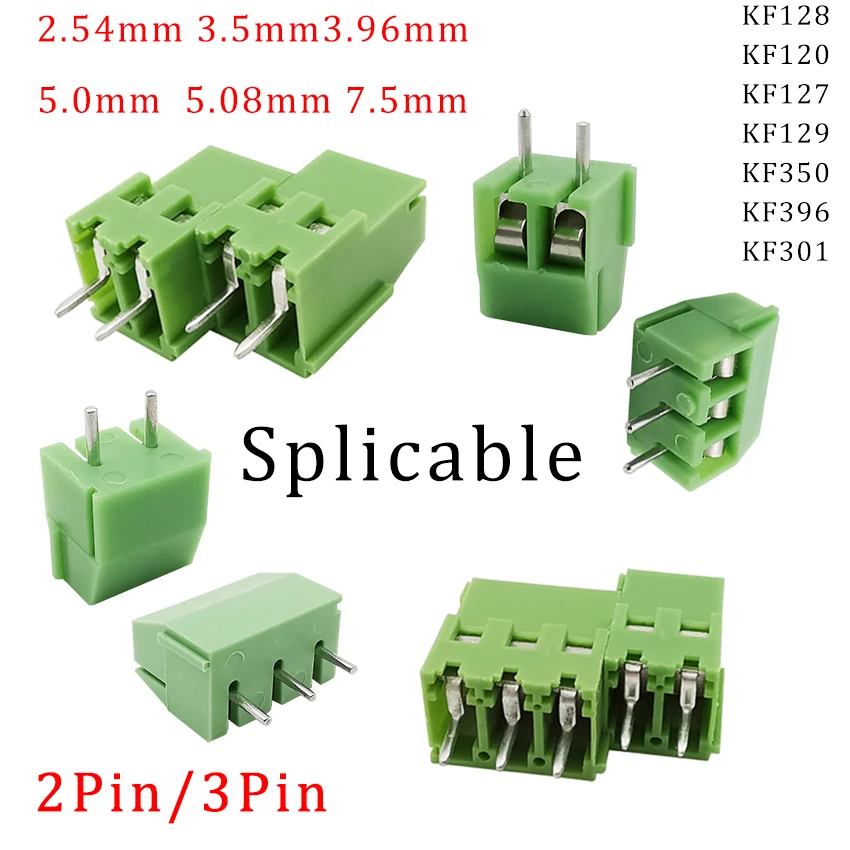

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

125778
SKU: 125778 Categories: ,
Description
  • Model Number: Screw PCB Terminal Block
  • Origin: Mainland China
  • Certification: none
  • Color: Green,Blue
  • Type: PCB Terminal Blocks
  • Style: Splicable Screw Terminal
  • Pin: 2Pin,3Pin,4Pin
  • Pitch: 2.54mm,3.5mm,3.96mm,5.0mm,5.08mm,7.5mm
  • Type 1: KF127 5.0mm PCB Screw Block
  • Type 2: KF129 5.08mm Splice Terminal Block
  • Type 3: KF120 2.54mm 2-4Pin PCB Connector
  • Type 4: KF128 2.54MM terminal block screw
  • Type 5: KF396 3.96MM pcb connector terminals
  • Type 6: KF350 3.5MM Splice Terminal wire connector
  • Type 7: KF128 7.5mm screw terminal wire connector
  • Type 8: KF301 5.0MM Pitch PCB Screw Terminals Blocks Connector

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

Product Describle:

Type:KF128-2.54mm,KF120-2.54mm,KF350-3.5mm,KF639-3.96mm,KF127-5.0mm,KF129-5.08mm,KF301-5.0mm,KF128-7.5mm
Pitch:2.54mm,3.5mm,3.96mm,5.0mm,5.08mm,7.5mm
Pin: 2Pin 3Pin 4Pin
Quantity:10Pcs/Lot x 2P/3P/4P Screw Terminal Block Wire Connector

KF128-2.54mm-2P/3P/4Pin
Rated Voltage: 150V
Rated Current: 6A
Wire Range: 26-18 AWG
Color: Green
Pitch: 2.54mm/0.1″
Pin: 2Pin 3Pin 4Pin

Type:No-Splicing

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

KF350-3.5mm-2P/3P

Specifications:
Product Name: Terminal Blocks
Position: 2P 3P
Rated Value: AC300V 10A
Terminal Pitch: 3.96mm/0.16inch
Material: Plastic,Metal
Main Color: Silver Tone, Green Descriptions
:
– 2 Positions, 3.96mm pitch, screw PCB terminal blocks connector.
– PCB terminal is widely used in almost all electronic equipment, such as small electronic watches, calculators, general computer, communication electronics equipment,etc.
– Easy to install and detach.

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

KF396-3.96mm-2P/3P

Specifications:
Product Name: Terminal Blocks
Position: 2P 3P
Rated Value: AC300V 10A
Terminal Pitch: 3.96mm/0.16inch
Material: Plastic,Metal
Main Color: Silver Tone, Green

Descriptions:
– 2 Positions, 3.96mm pitch, screw PCB terminal blocks connector.
– PCB terminal is widely used in almost all electronic equipment, such as small electronic watches, calculators, general computer, communication electronics equipment,etc.
– Easy to install and detach.

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

KF127-5.0MM-2P/3P

Name:KF127 5.0mm 2Pin/3Pin PCB Screw Block Connector
Pins:2Pin,3Pin
Supply Voltage: 300v
Type: Voltage Regulator
WIRE DIAMETER: 26-14AWG

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

KF129-5.08MM-2P/3P

Name: KF129 5.08MM 2Pin/3Pin Straight Pin Terminal
Type: KF129 5.08MM Terminals
Pitch: 5.08mm
Pin: 2Pin 3Pin
Rated voltage: 300V
Wire range: 28-12AWG

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector

KF128-7.5MM-2P/3P

Name:KF128 7.5mm Pitch 2/3Pin Screw Pcb Terminal Connector
Pin: 2/3Pin

Pitch: 7.5mm
Color: Green

Rated Voltage/Current: 300V/10A

2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector2.54mm/3.5mm/3.96mm/5.0mm/5.08mm/7.5mm KF120 127 128 129 301 350 396 2Pin 3Pin Screw Type PCB Terminal Block Wire Connector
