11key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip 1-10PCS

446654

SKU: 446654 Category:
Report Abuse
Description

11key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip

DESCRIPTION

Note:

1.We Offer DC/ Wire Connector + 11key Controller for choise

2.Battery is not included because of the security reason and custom problem during transport,

3.Battery model is CR2025,Please buy it yourself in your local market.

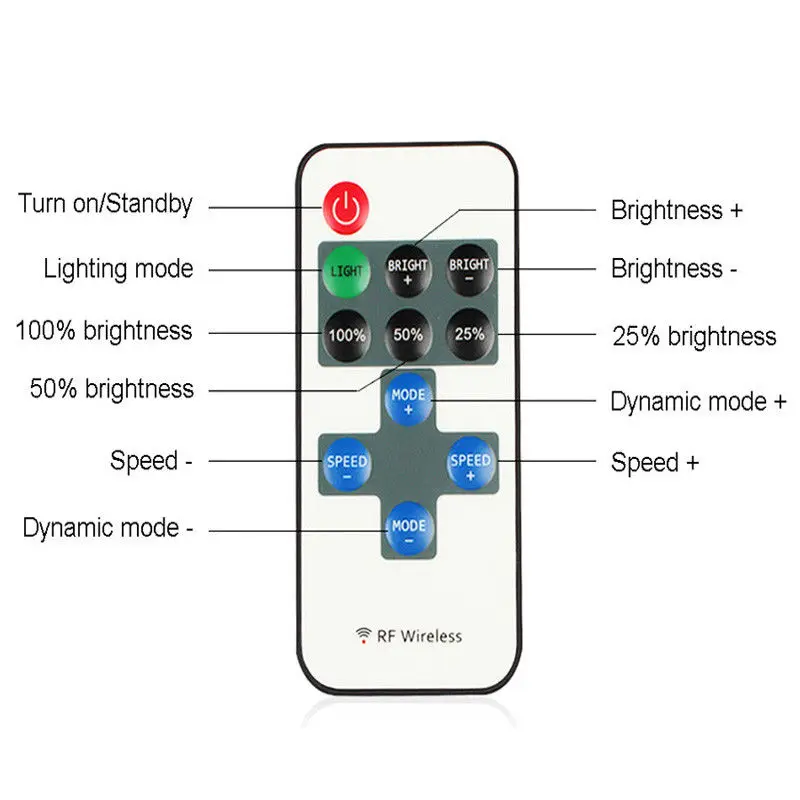

Instructions for RF Wireless Remote
1.Turn On/ Standby
Press this key to turn on unit or switch to standby mode. Unit will turn on and restore to previous status at powering on moment.
2. Lighting mode
Switch to lighting mode from dynamic mode.
3/8/9. Dimmer Adjust Shortcuts
Switch to 100%, 50%, or 25% brightness lighting mode.
4/6. Dynamic Mode Adjust
Switch to dynamic mode from lighting mode, or switch between different dynamic modes.
5/7. Speed Adjust
Adjust playing speed of dynamic modes. Press SPEED+ to increase seed and press SPEED- to decrease.
10/11. Brightness Adjust (Dimmer)
Adjust lighting mode brightness. Press BRIGHT+ to increase brightness and press BRIGHT- to decrease

Functions for RF Wireless Remote
Dimmer & Dynamic
8 Dynamic Effects
10-level Dimmer
256-Grade PWM
Speed Adjustable
Card Type Remote
Ultra Slim Design
Smooth Dimmer Effect
1 to 1 Remote Paired
Auto Save Function

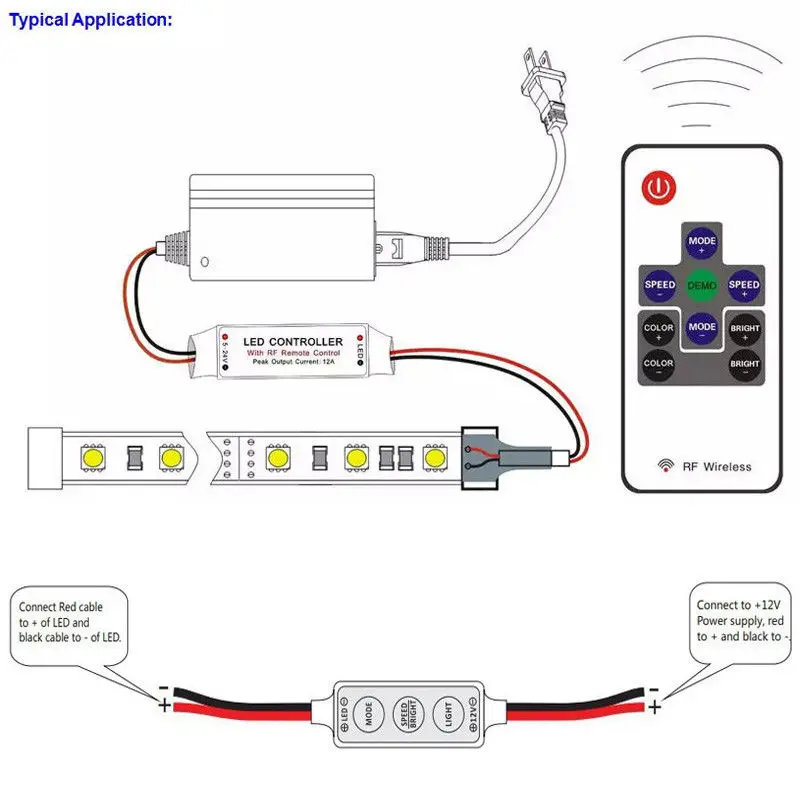

Installing for RF Wireless Remote
1. Power Supply
This unit accepts DC 5V to 24V power supply. The red cable should be connected to positive and black cable to negative.
Please select proper power supply according to the LED application.
2. LED Output
The red cable should be connected to LED positive and black cable to negative. The peak output current is 12A, please reduce load if main unit is overheating.
CAUTION:Do not short circuit the LED output, this may lead to permanent damage!
3. Remote Control
Please pull out the insulate part before using. The RF wireless remote signal can pass through barrier, so it’s not necessary to aim at the main unit when operate. For proper receiving remote signal, do not install the main unit in closed metal parts. The remote battery is 3V CR2025 type, please only replace with same type battery.

Specification
Dynamic mode: 8 modes
Dynamic speed level: 10 levels
Lighting brightness level : 10 levels
PWM grade: 256 grades
Smooth dimmer effect: Yes
Working voltage: DC 5~24V
Output current : peak 12A
Remote control mode: RF Wireless
Remote frequency: 433.92MHz
Remote distance : >15m at open area

Package includes:

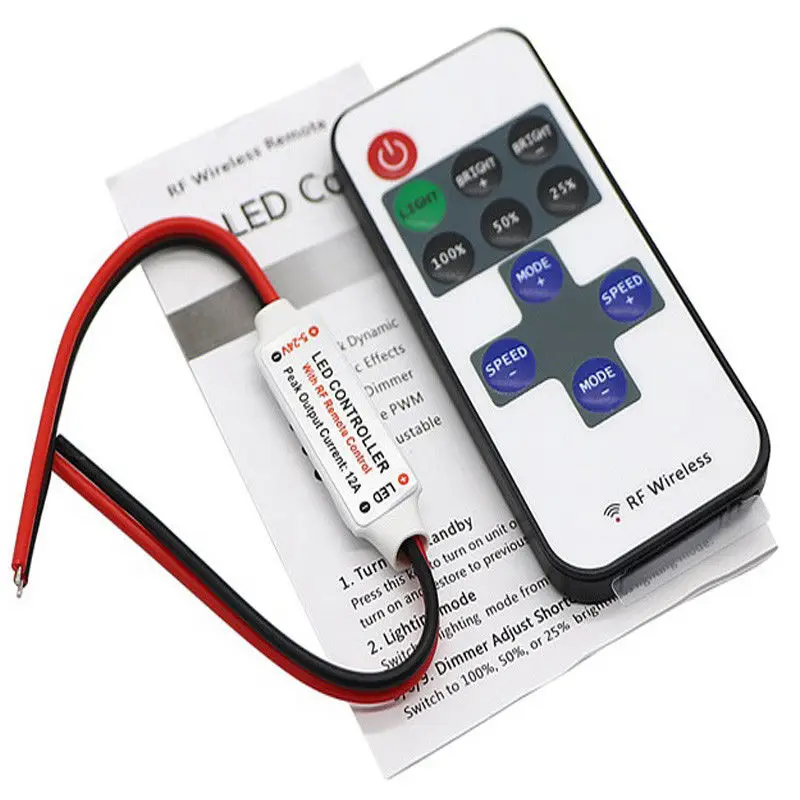

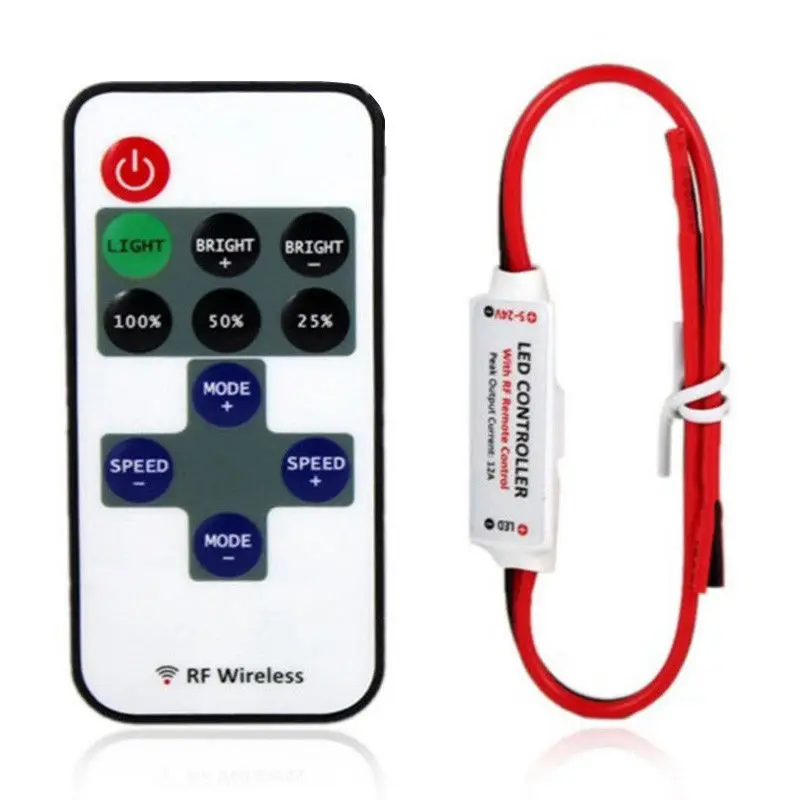

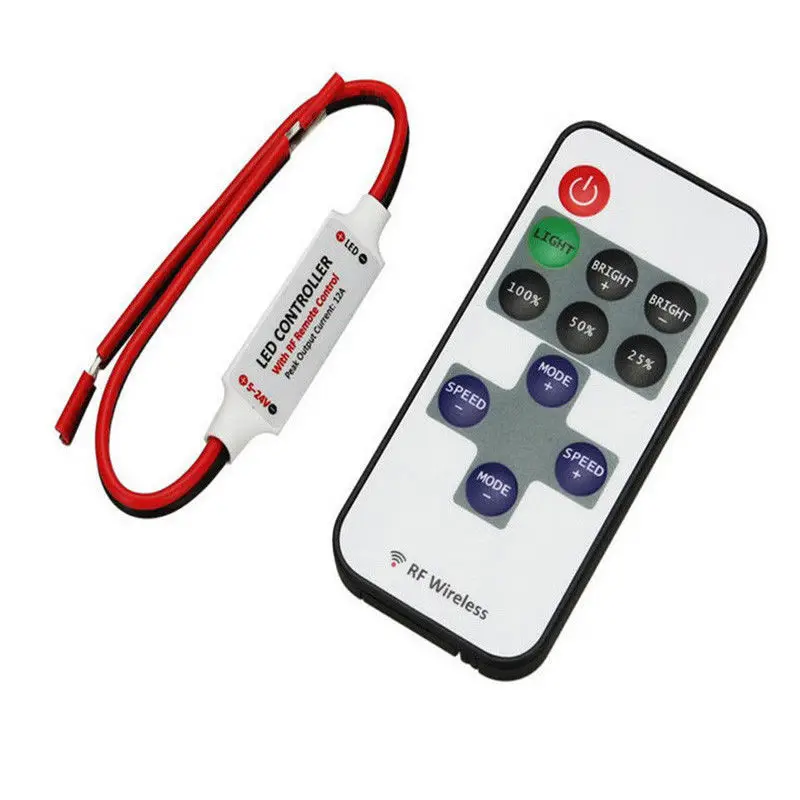

1 x Mini In-line LED Light Controller/Dimmer
1 x RF Wireless Remote Controller R10611key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip 1-10PCS11key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip 1-10PCS11key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip 1-10PCS11key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip 1-10PCS11key LED strip controller Mini Dimmer RF Remote 5-24v For 5630 2835 5050 Single Color LED strip 1-10PCS
