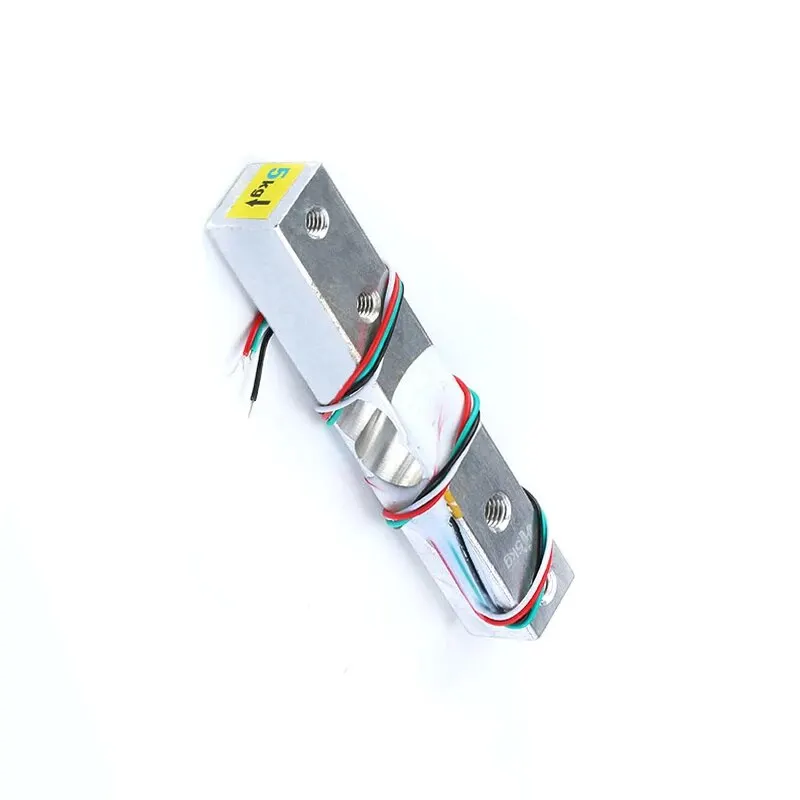

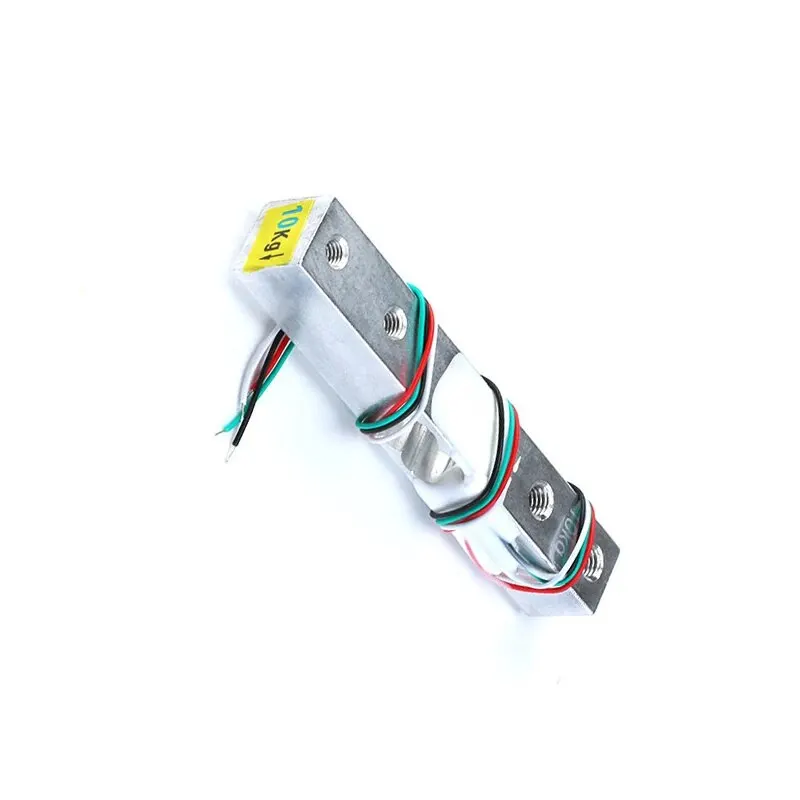

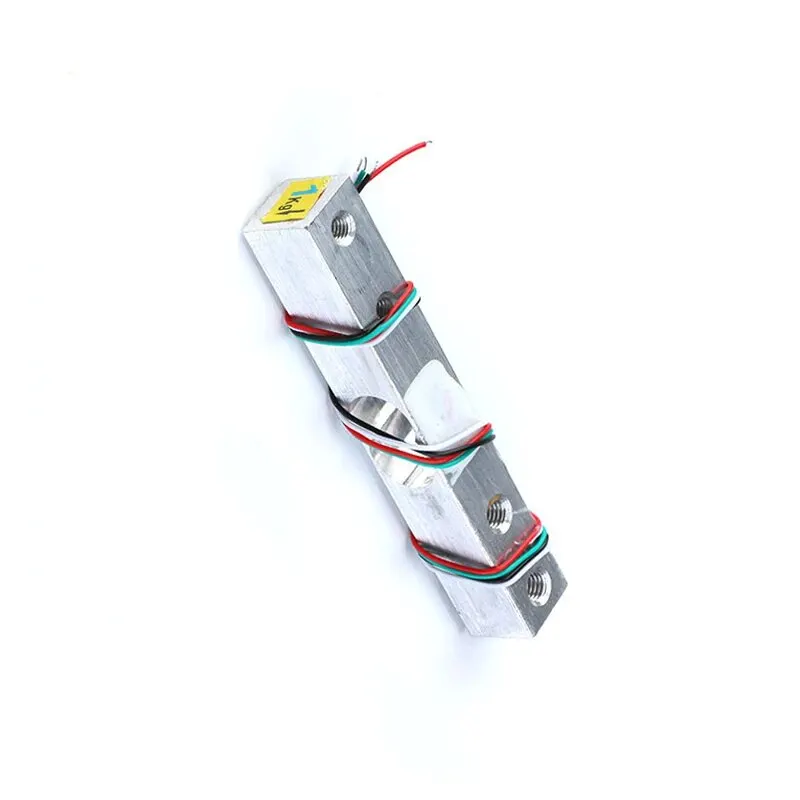

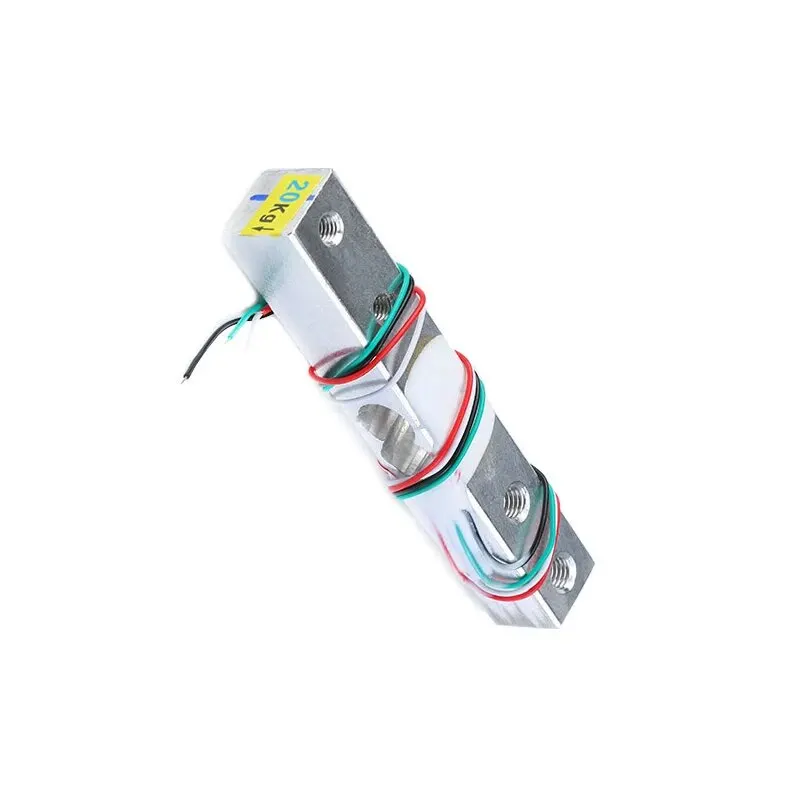

1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque

443423

Report Abuse
Description

• High Load Capacity :This load cell amplifier has a high load capacity of up to 20,000 kg, making it suitable for measuring heavy weights and forces.

• Versatile Usage :The product is versatile in its usage, it can be used to measure force, pressure, displacement, strain, and torque, making it a multi-purpose sensor.

• Digital Output :The load cell amplifier produces a digital output, ensuring accurate and precise measurements every time.

• Durable Material :Made from robust metal, this load cell amplifier is designed to withstand high loads and long-term use.

• Theory of Hall Sensor :Based on the theory of Hall sensor, this product provides reliable and accurate measurements, making it an essential tool for various applications.

• Two-Pack :This pack comes with two load cell amplifiers, providing you with more options and flexibility in your measurements.

1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque

2pcs 1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque Acceleration

Features:

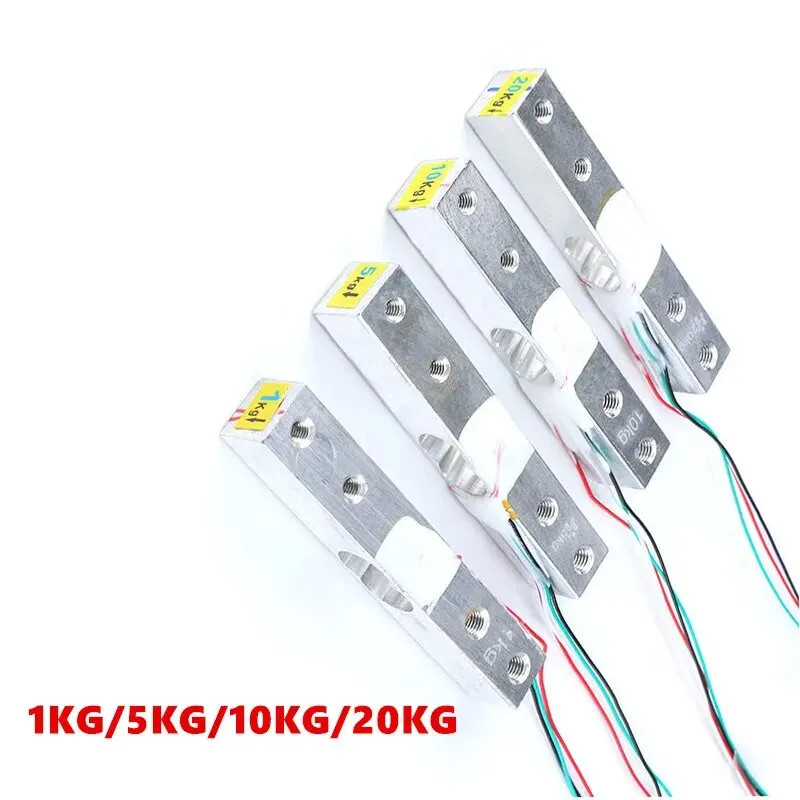

• 💎【1KG/5KG/10KG/20KG Load Cell Amplifier】: used to measure force, pressure, displacement, strain, torque, acceleration.

• ⚡【Voltage】:2.6 ~ 5.5V

• 🥇This module uses 24 high precision A/D converter chip hx711.

• 🥉Support Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields

• The surface is anodized to make the product more lustrous and durable.Secondly, the product is protected by silica gel, which can protect against corrosion, moisture and aging.

• Widely used for electronic scales and balance material scales, jewelry scales and control system.

• Wire connection: red (exc +), Black (exc-) ,Green (Sen +), White (Sen-); sensitivity (MV/v):0.7 +/-0.15, error: +/-0.05 F.S.

Specifications:

-Differential input voltage : ±40mV ( Full-scale differential input voltage is ± 40mV )

-Data accuracy : 24 bit ( A/D converter chip )

-Refresh frequency: 80 Hz

-Operating Voltage : 5V DC (2.6V ~ 5.5V)

-Operating current : <10 mA

-Operation supply voltage range: 2.7V ~ 5.5V

-Operation temperature range: -40 ~ +85℃



1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque1/5/10/20KG Load Cell Amplifier Weighing Sensor Module Used to Measure Force Pressure Displacement Strain Torque
